Code 8: (Airflow Meter)

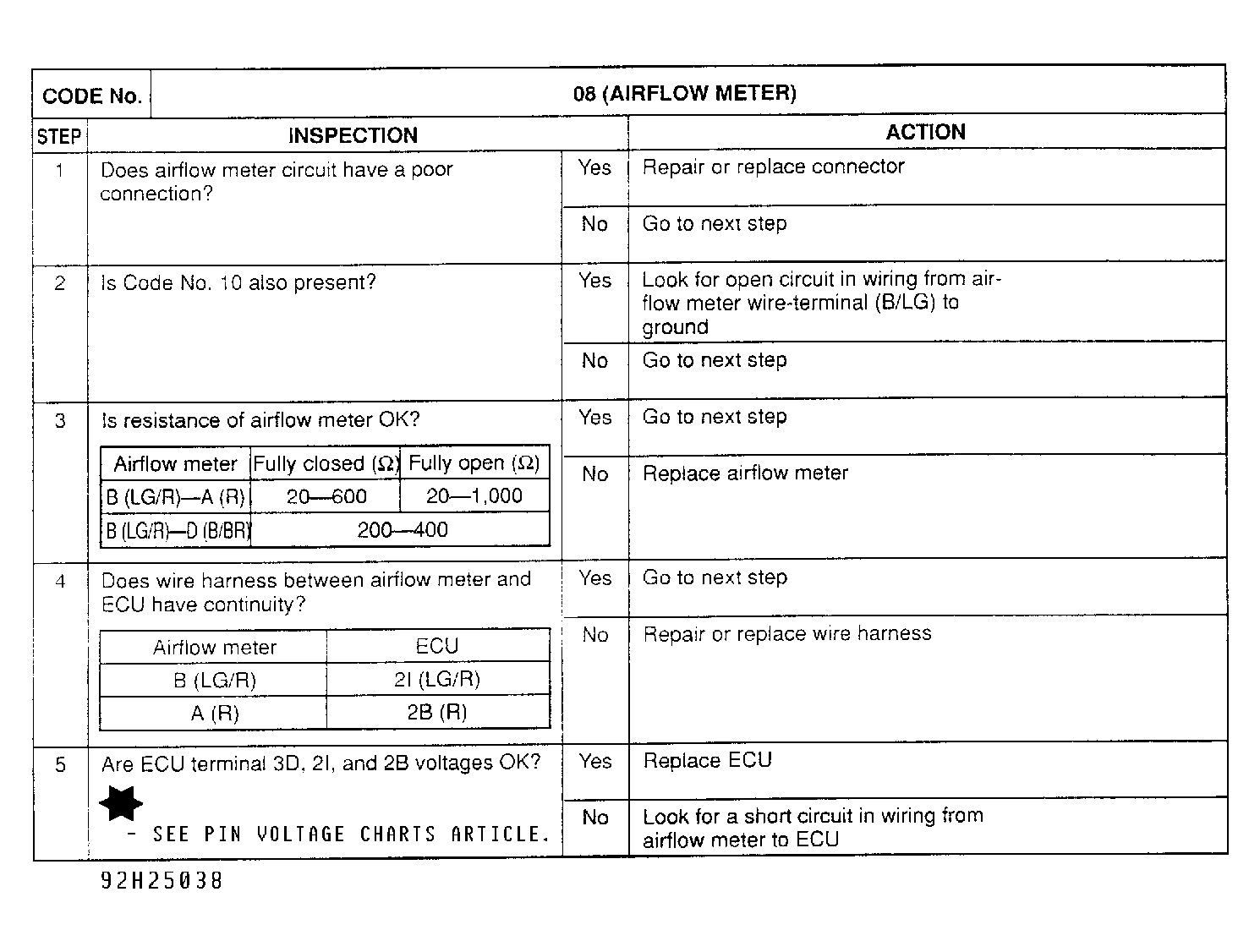

Fig 1: Trouble Code No. 8 - Diagnostic Flowchart
G92H25038Courtesy of MAZDA MOTORS CORP.

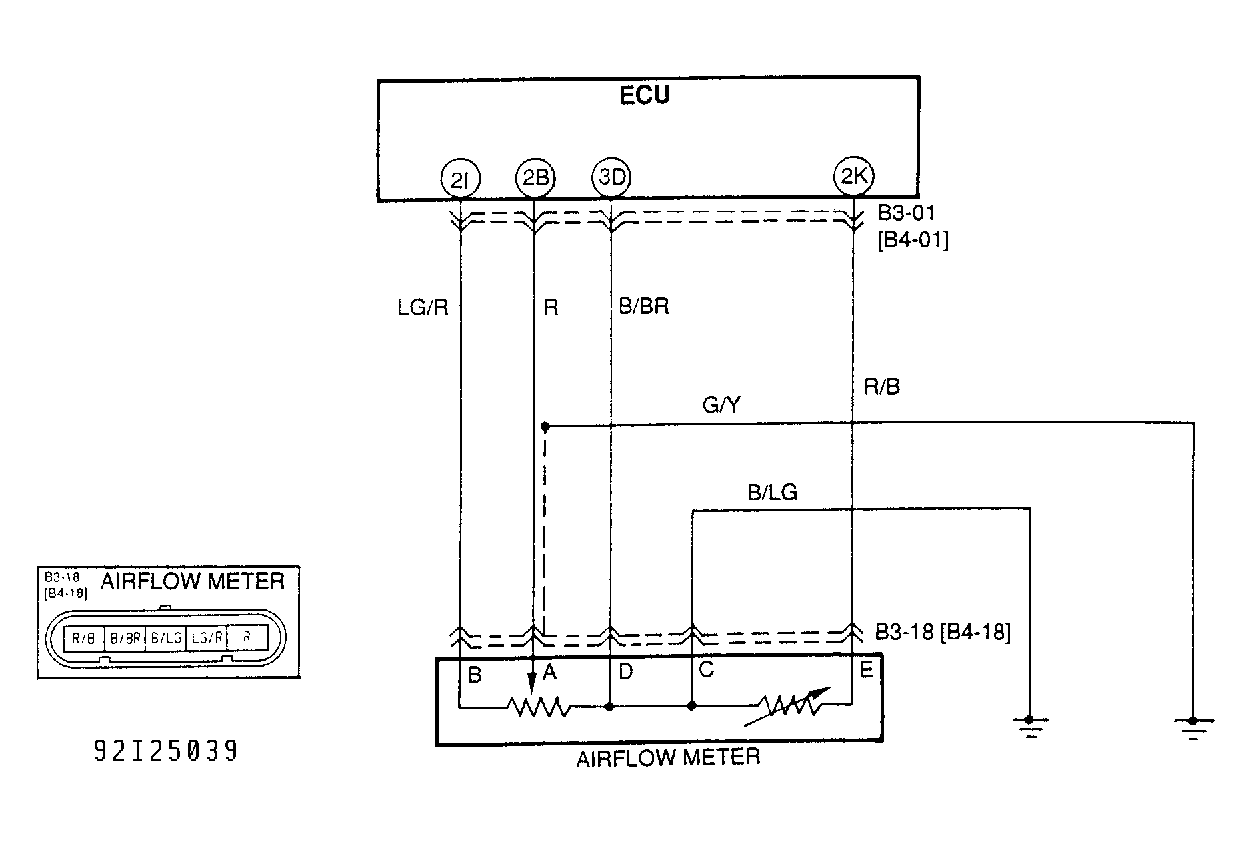

Fig 2: Trouble Code No. 8 - Schematic
G92I25039Courtesy of MAZDA MOTORS CORP.
