Code 9: (Coolant THERMOSENSOR)

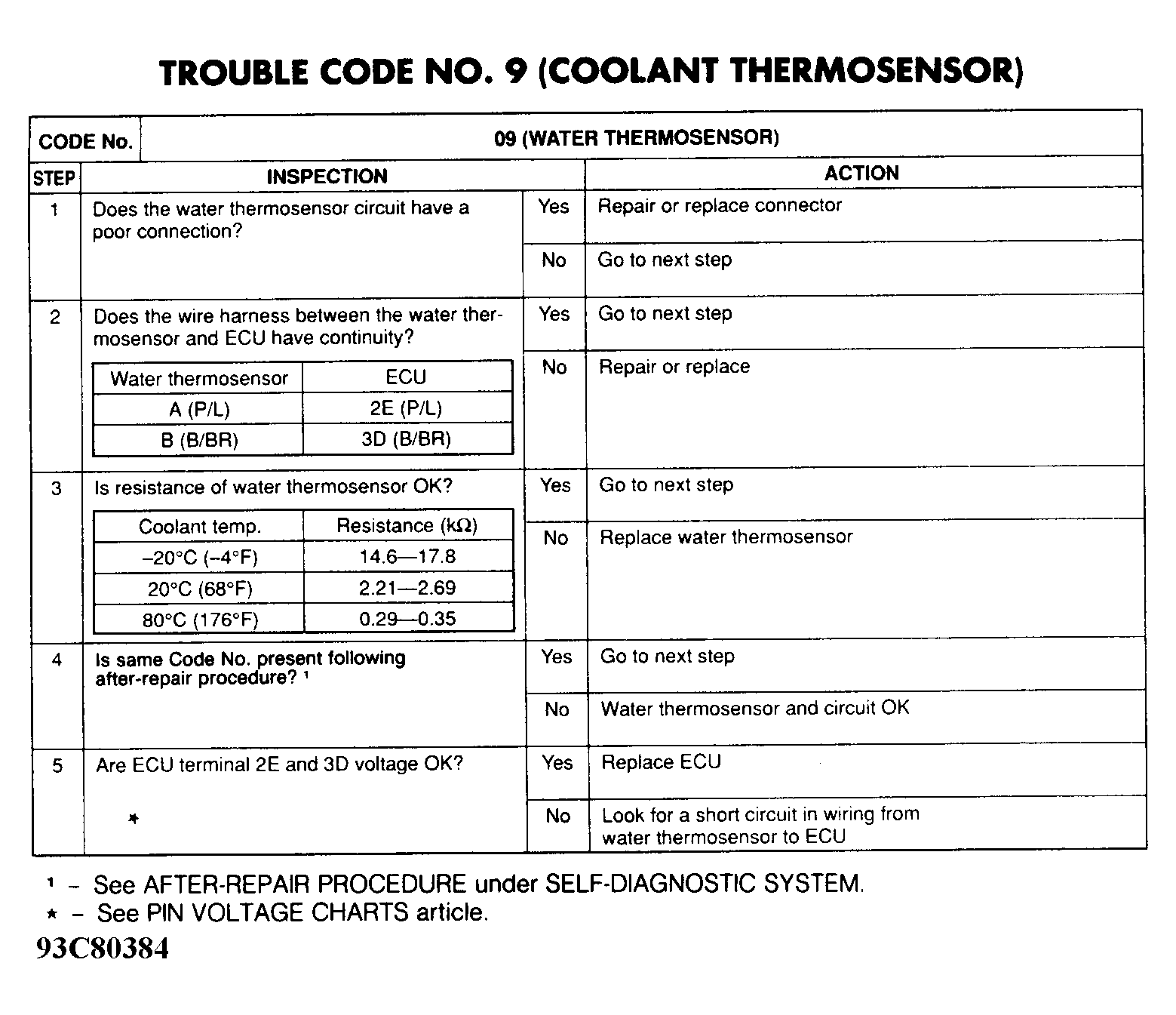

Fig 1: Trouble Code No. 9 - Diagnostic Flowchart
G93C80384Courtesy of MAZDA MOTORS CORP.
Fig 2: Trouble Code No. 9 - Schematic
G92C25041Courtesy of MAZDA MOTORS CORP.
