Disassembly / Assembly

Disassembly / Assembly

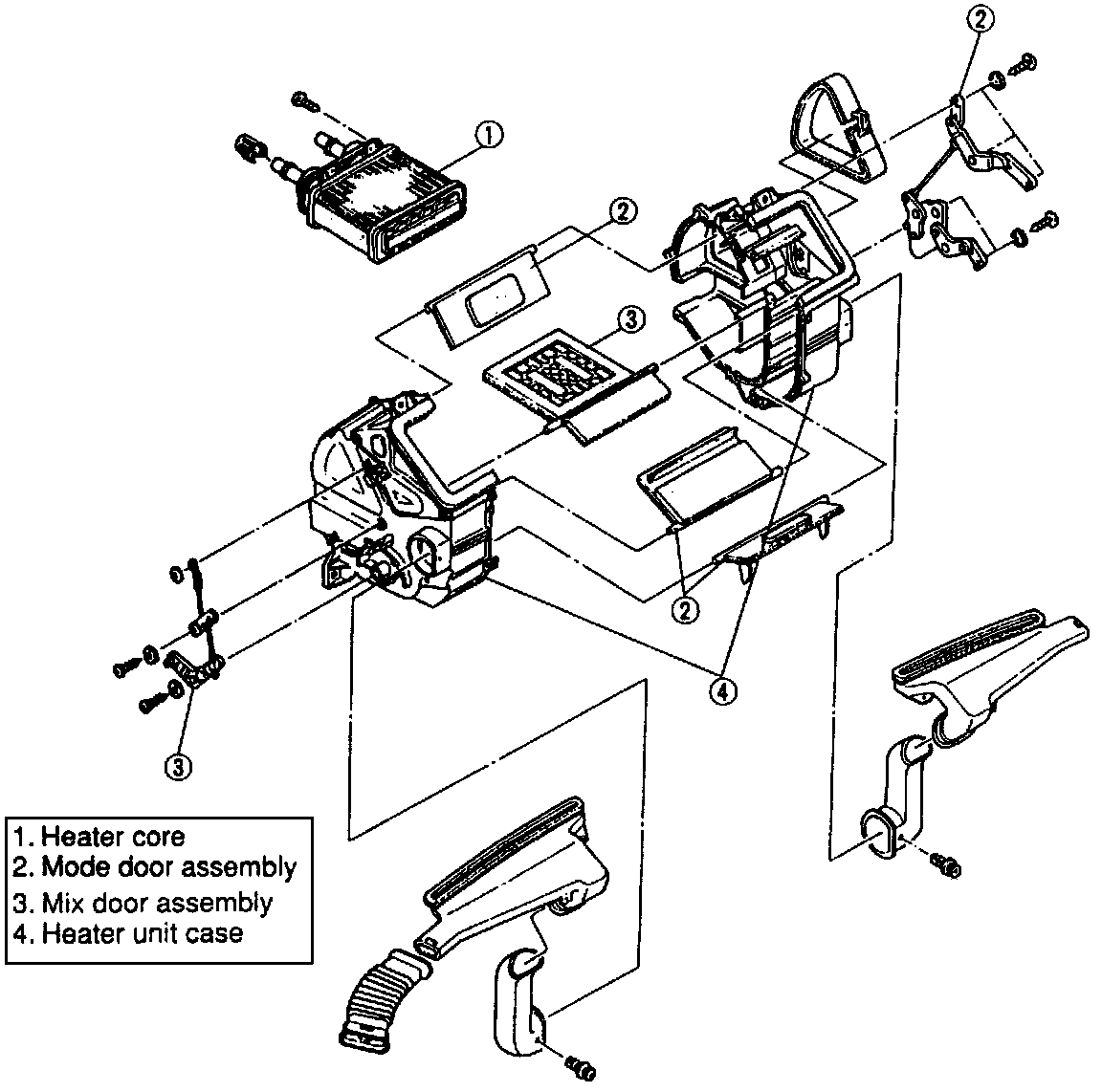

1. Disassemble in the order shown in the figure.
2. Check for the following and repair or replace the heater core as necessary.
- Cracks, damage, and water leakage
- Bent fins
- Distorted and bent inlet
3. Assemble in the reverse order of disassembly.
