Mazda
>>
1993
>>
MX-3 L4-1597cc 1.6L
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Testing and Inspection
>>
Front Wipers
>>
Flowchart 1
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Flowchart 1

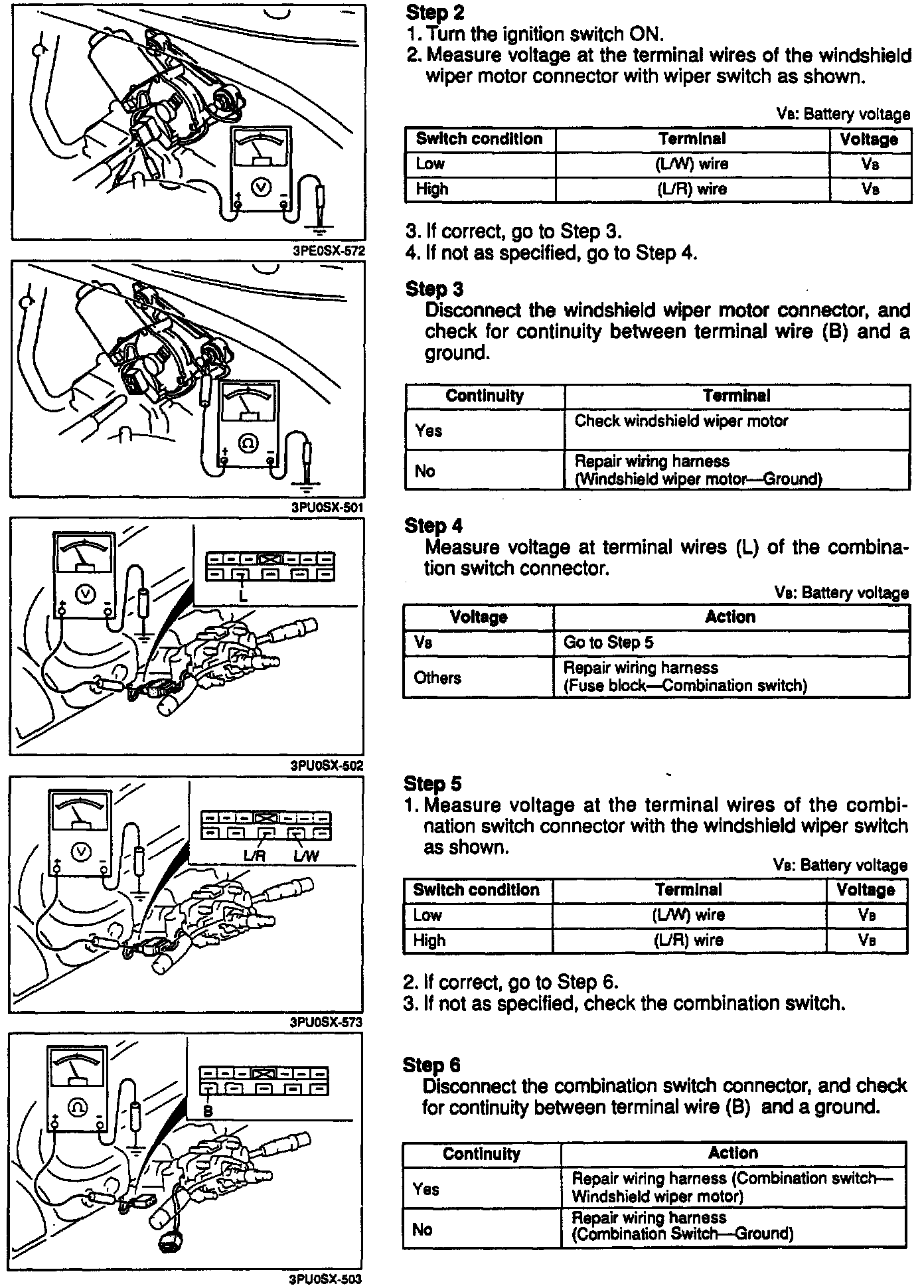

Flowchart 1 - Wipers Do Not Operate (Part 1):
Flowchart 1 - Wipers Do Not Operate (Part 2):
