Crankshaft Position Sensor: Service and Repair

Crank Angle Sensor R&R:

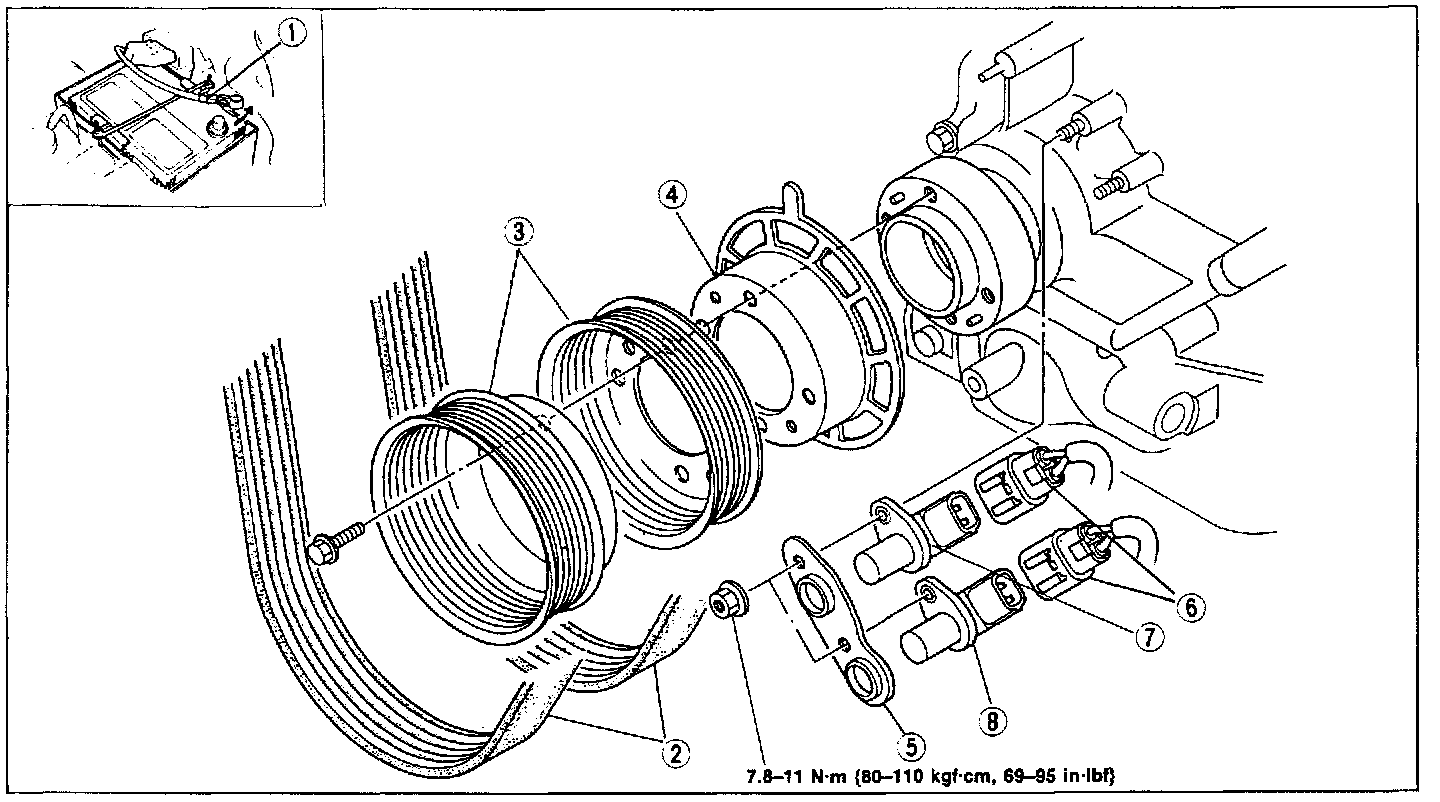

COMPONENTS
1. Battery cable
2. Drive belt
3. Eccentric shaft pulley
4. Crank angle sensor plate
5. Bracket
6. Connectors
7. Crank angle sensor (NE-signal)
8. Crank angle sensor (G-signal)

1. Remove in order shown.
2. Install in reverse order. Ensure that clearance between sensor and sensor plate is 0.039 - 0.078 in (1.0 - 2.0 mm).
