Crankshaft Position Sensor: Testing and Inspection

Crank Angle Sensor:

Crank Angle Sensor Testing:

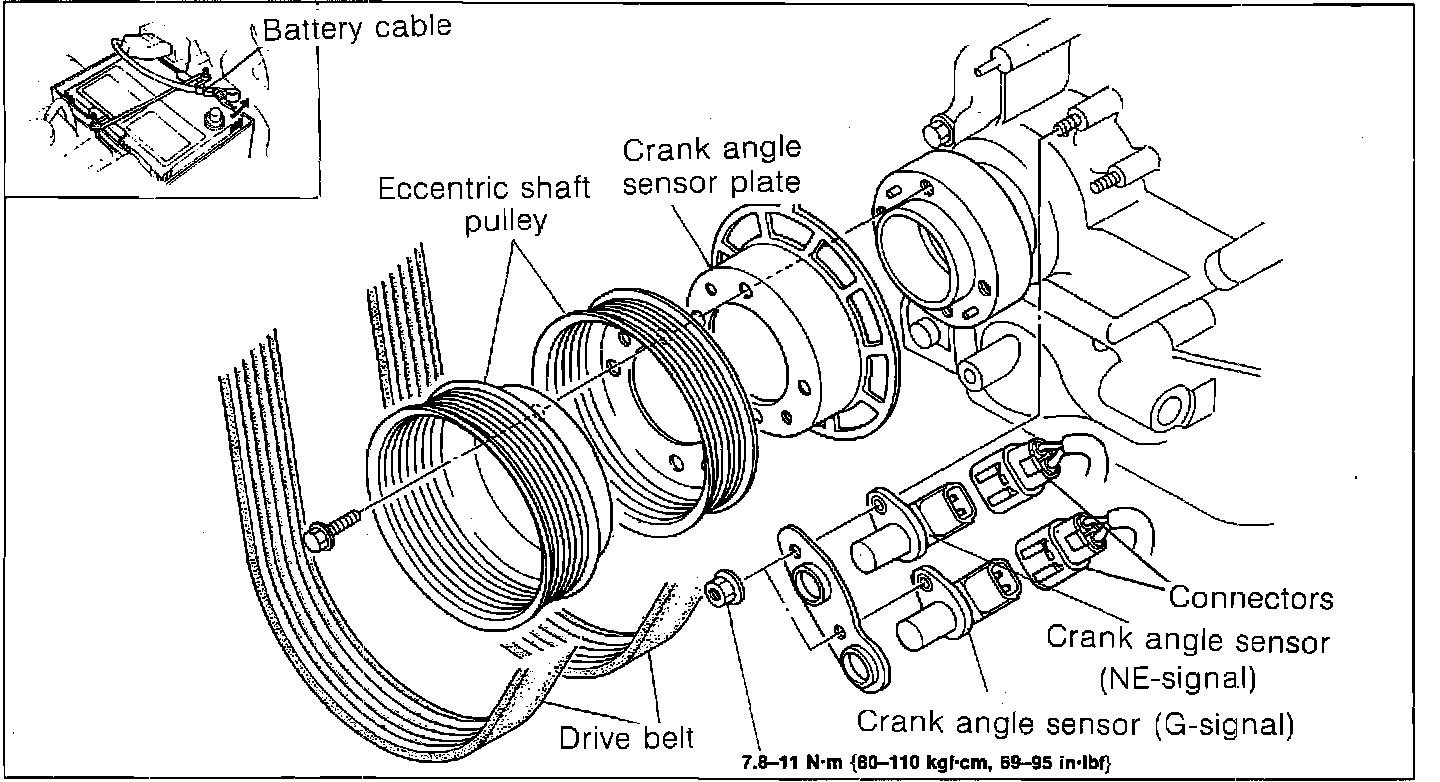

1. Remove sensor and measure resistance across terminals:

0.95 - 1.23K ohms @ 68°F (20°C)

2. If not as specified, replace sensor.
3. On installation, check sensor to sensor plate clearance with feeler gauge:

0.039 - 0.078 in (1.0 - 2.0 mm)
