Ignition Coil: Service and Repair

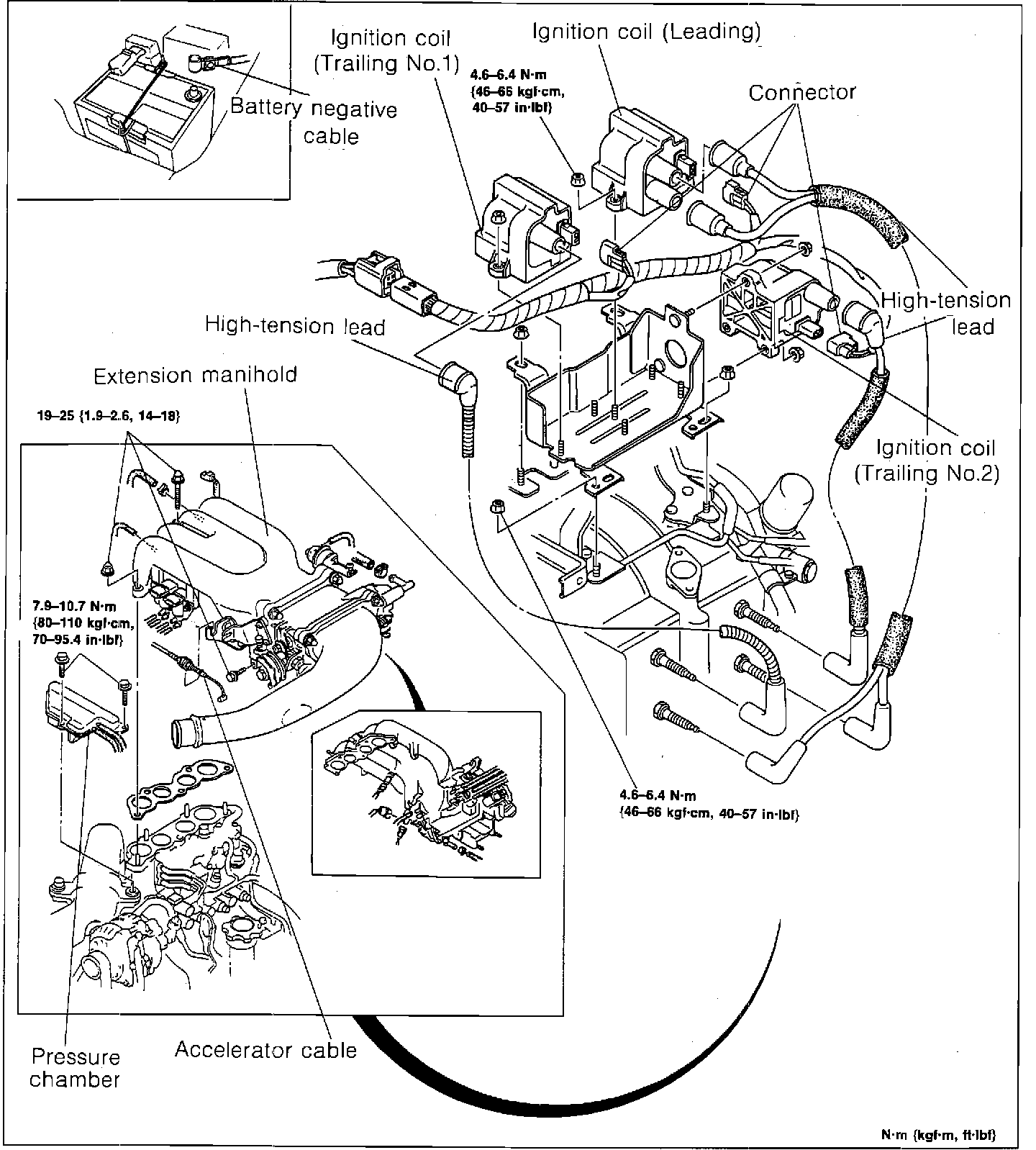

Ignition Coils:

Remove ignition coils in the following order. Reverse procedure to install:

1. Negative battery cable
2. Pressure chamber
3. Accelerator cable
4. Extension manifold
5. High tension lead
6. Connector
7. Coil bracket
8. Coil (trailing #1)
9. Coil (leading)
10. Coil (trailing #2)
