RX7 2RTR-1308cc 80
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Antitheft and Alarm Systems
>>
Part 1 of 4
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Part 1 of 4

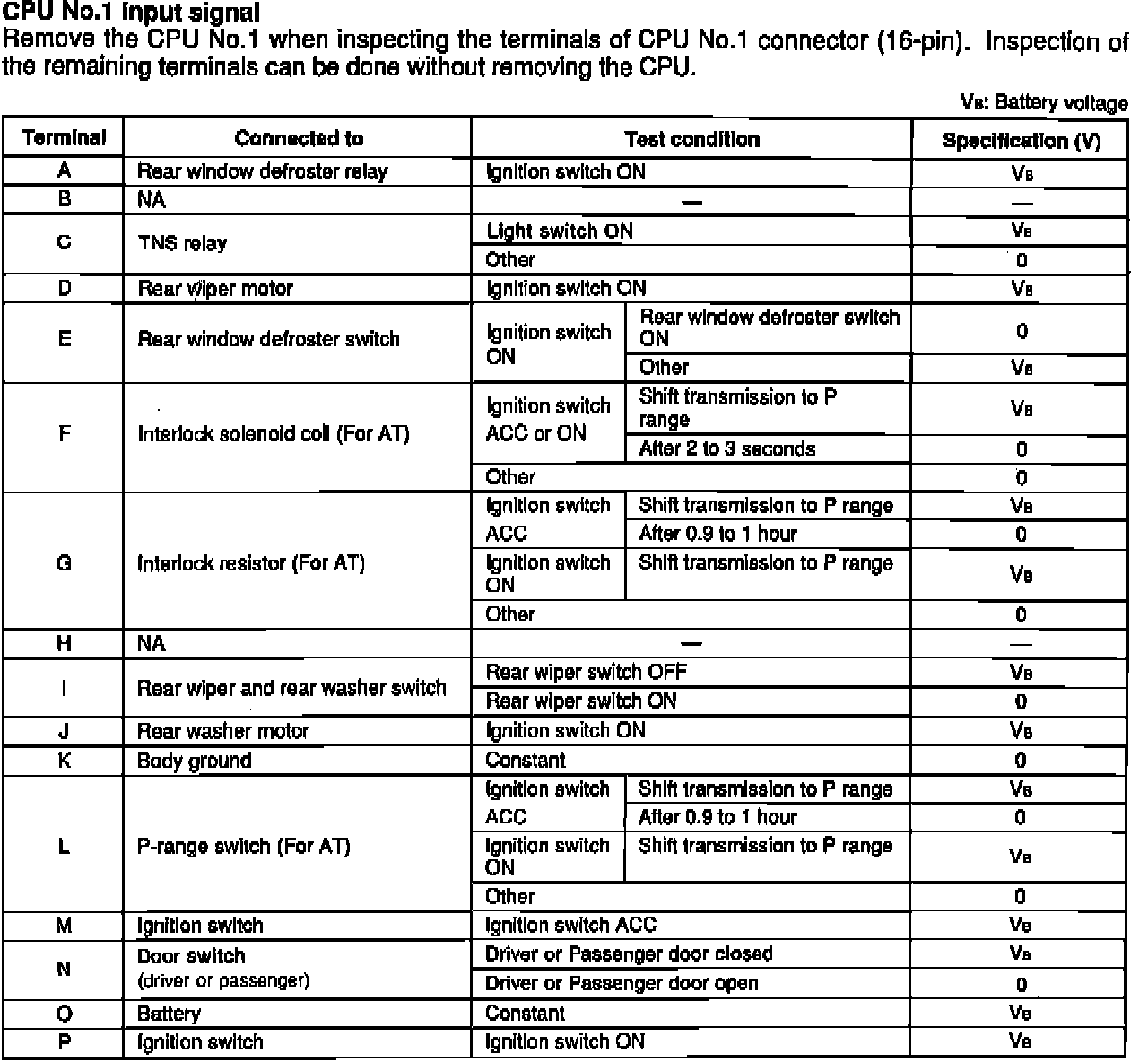

Terminal Voltage Chart:
