Mazda
>>
1994
>>
626 V6-2496cc 2.5L DOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Powertrain Management
>>
System Specifications
>>
Terminals 3L - 3Z
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

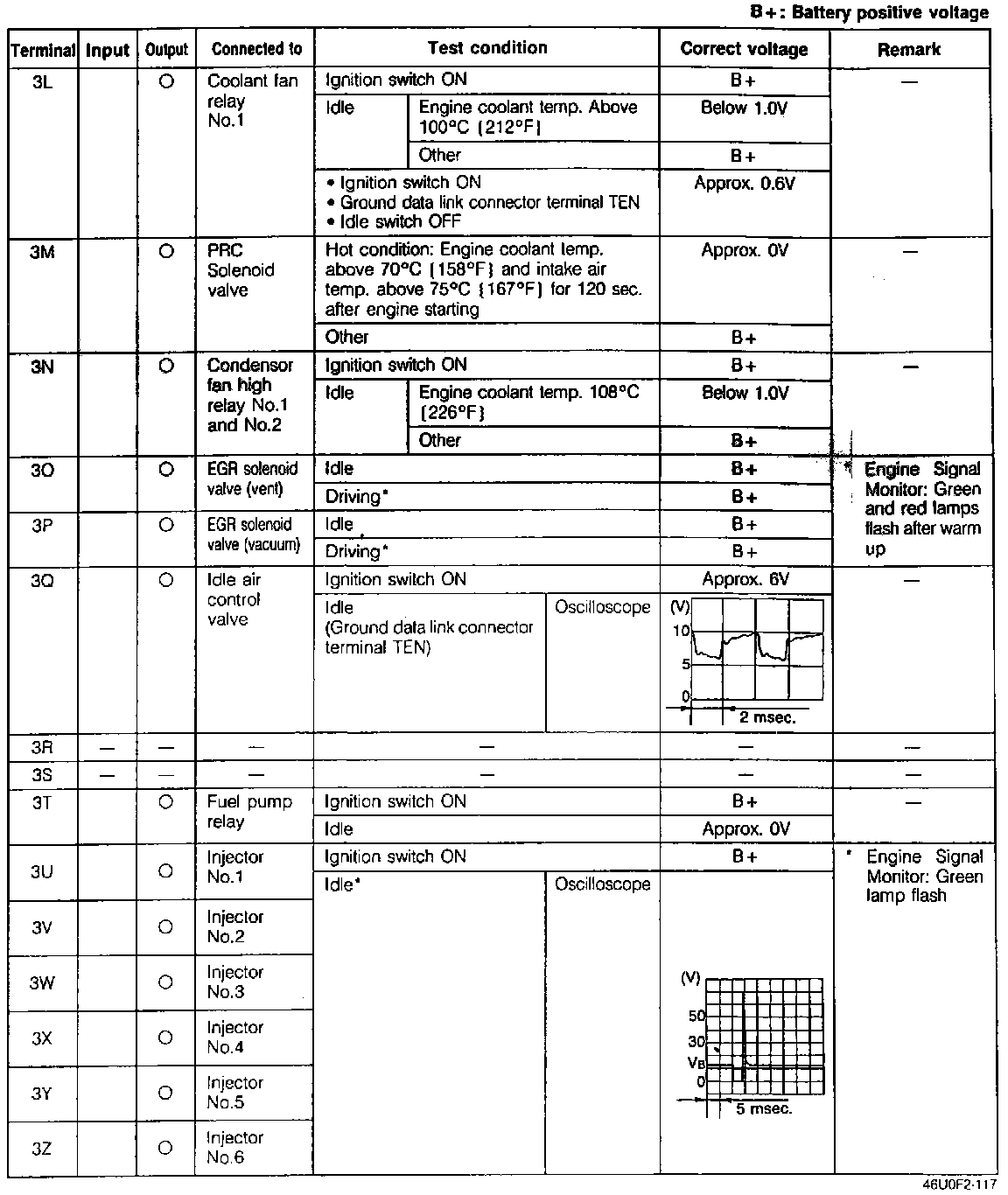

Terminals 3L - 3Z
Terminal Voltage:
