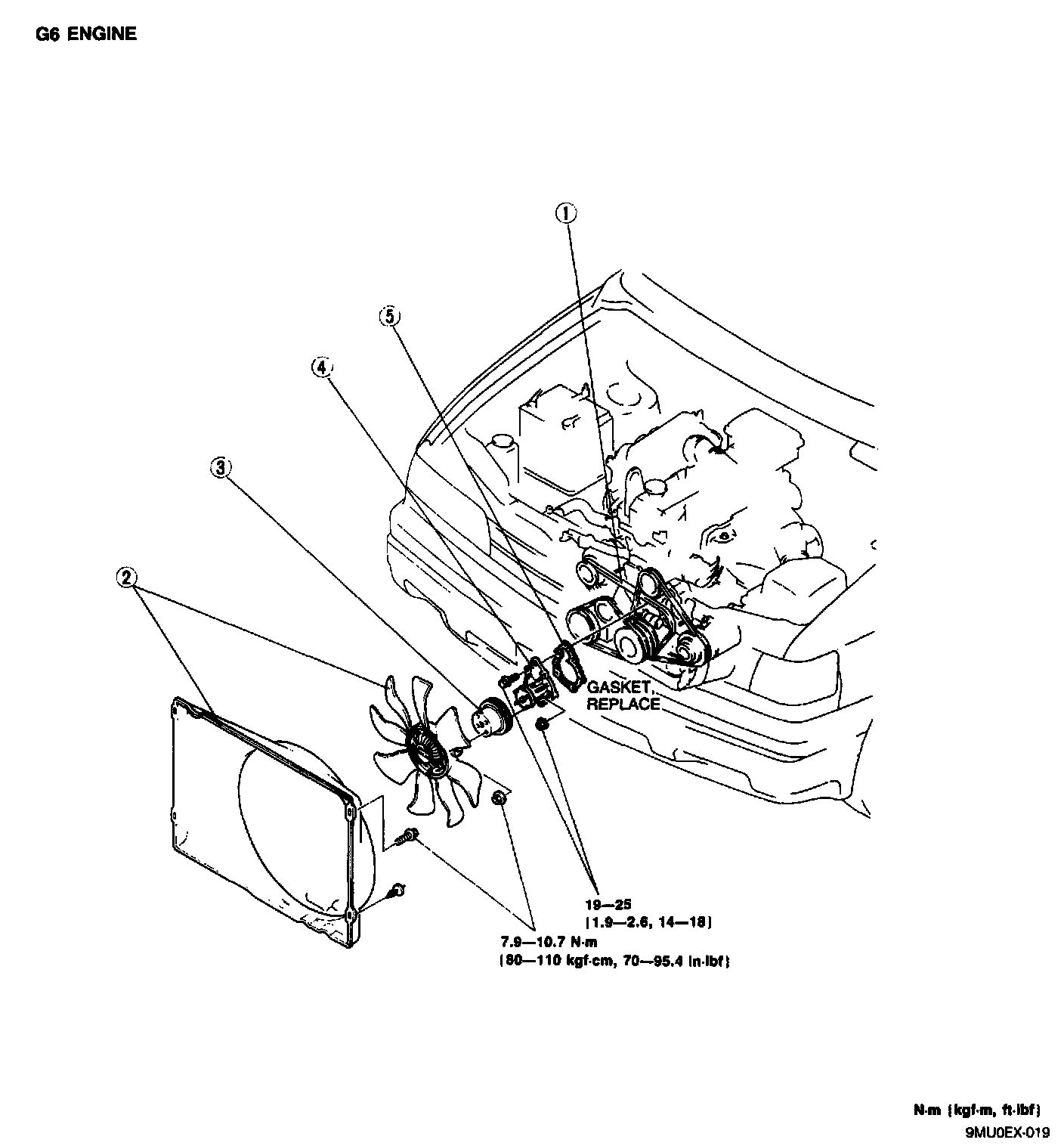

Water Pump
(1) Drive Belt (2) Cooling Fan And Radiator Cowling (3) Water Pump Pulley (4) Water Pump (5) Gasket:
