Door Lock Timer Unit: Notes

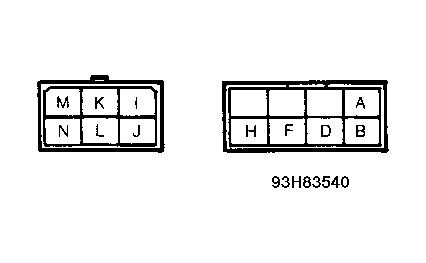

A list of door lock timer unit connector terminals with specified voltages follows. DO NOT  disconnect door lock timer unit connector. Measure voltage at each door lock timer unit connector terminal (backprobe connector). SeeFigure . If voltages are not as specified, check wiring. If wiring is okay, replace door lock timer unit.
