Trouble Code Identification: Notes

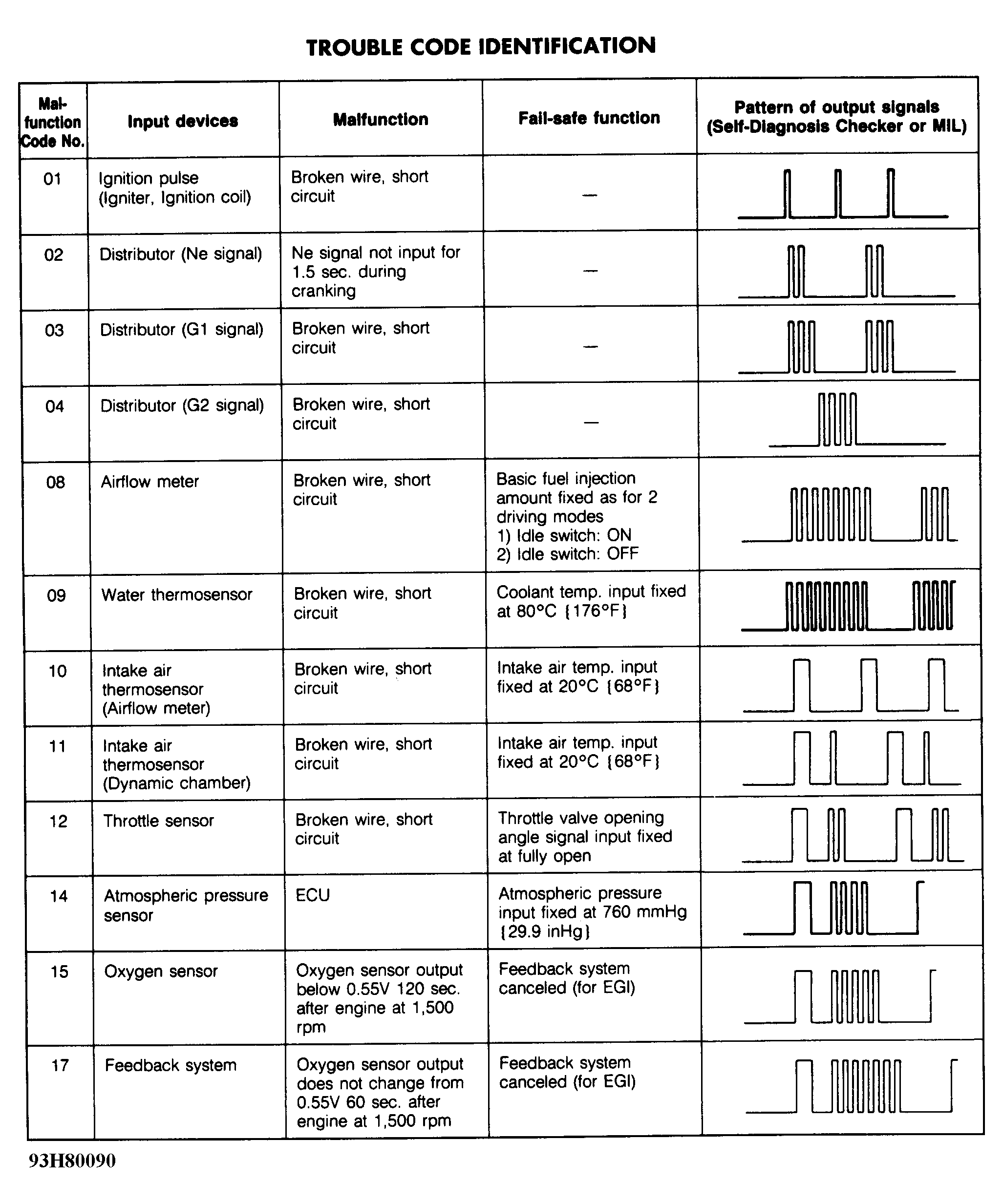

Fig 1: Trouble Code Identification Table (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

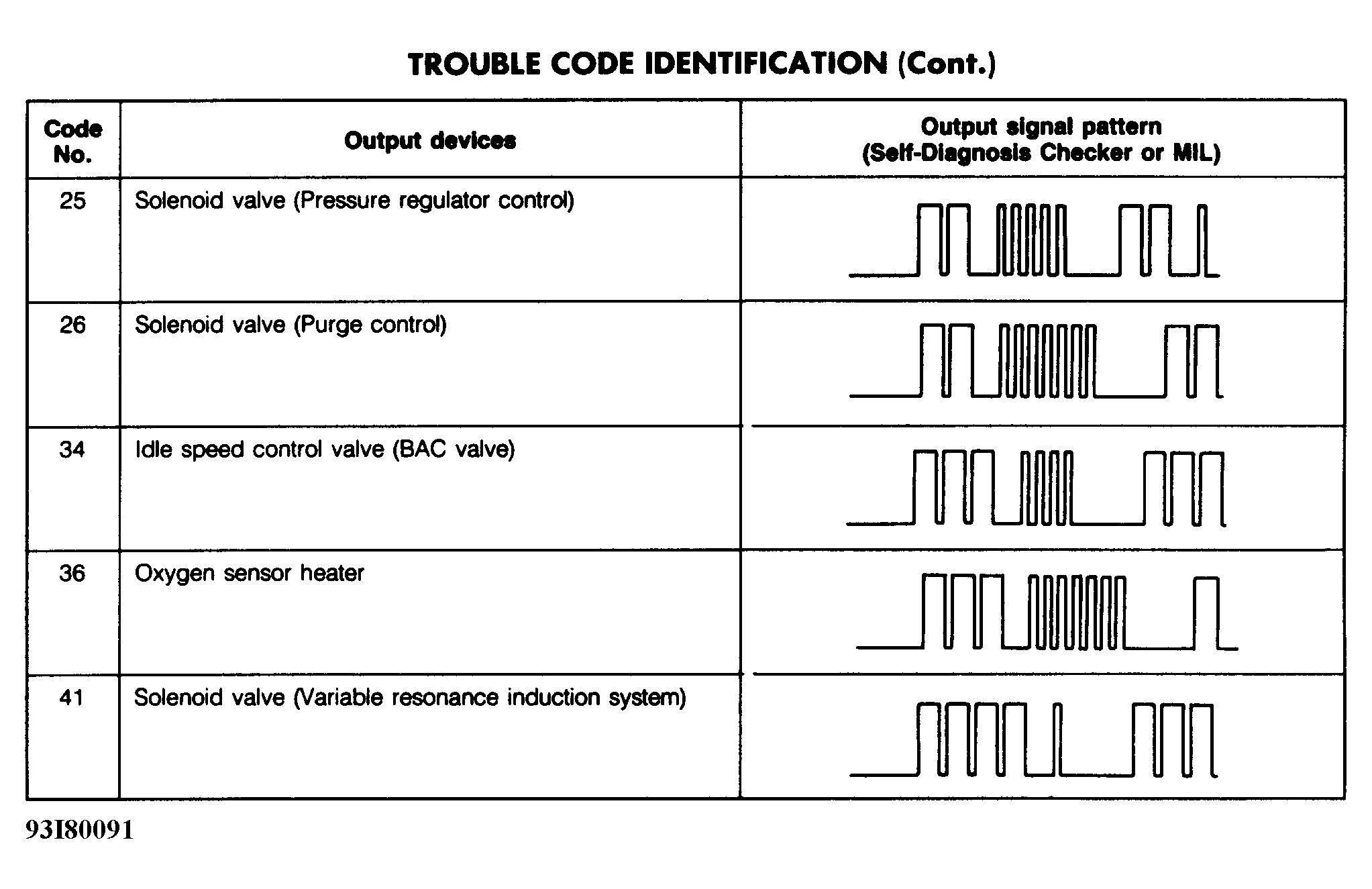

Fig 2: Trouble Code Identification Table (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
