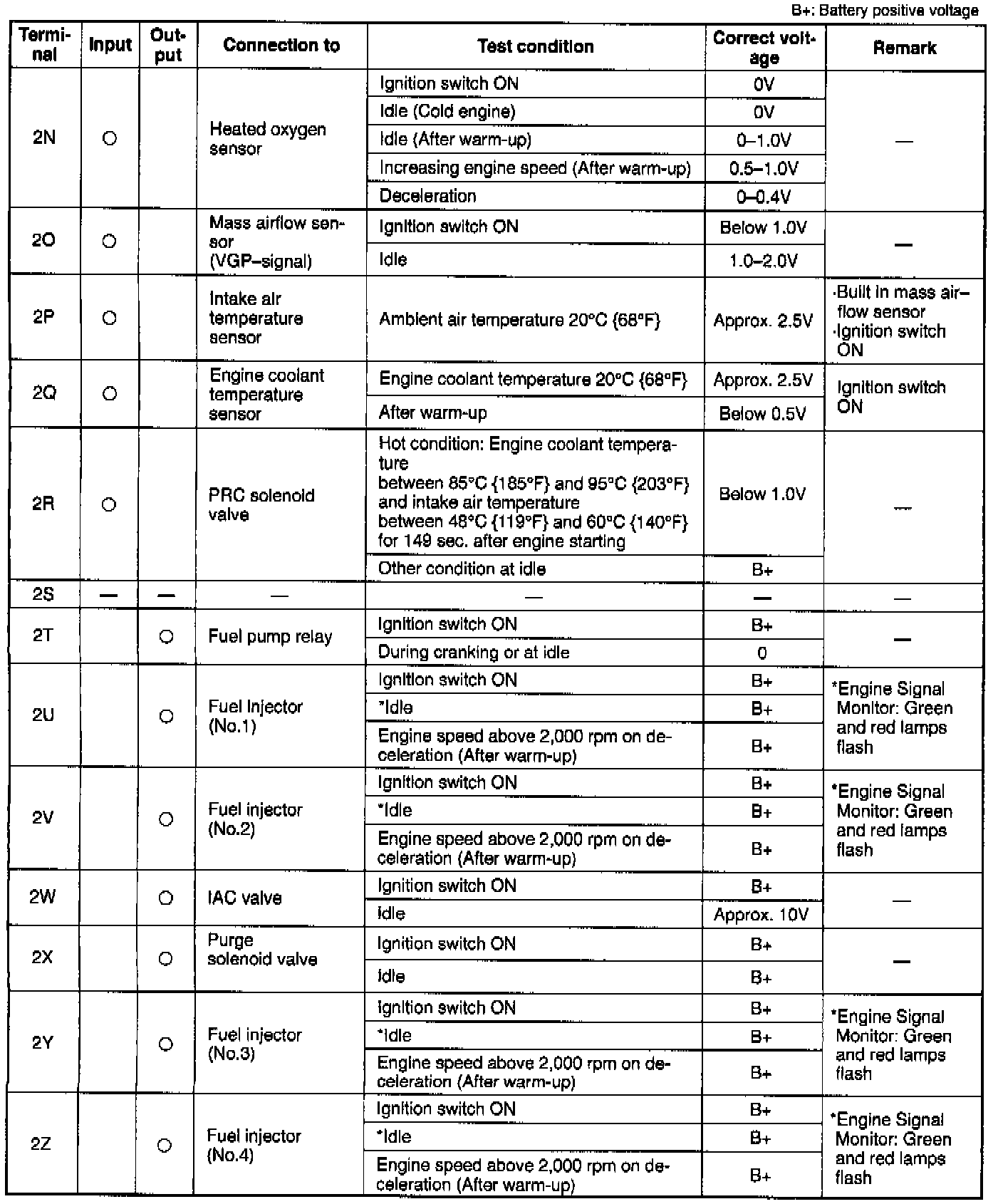

Home >> Mazda >> 1994 >> MX-3 L4-1598cc 1.6L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Specifications >> Electrical Specifications >> Terminal 2N Through 2Z >> Part 1 of 2

April 5, 2026: LEMON Manuals is launched! Read the announcement.

Part 1 of 2

Part 1 Of 2:
