Engine Control Module: Service and Repair

Remove Components In Order Of Numbered Sequence:

REMOVAL

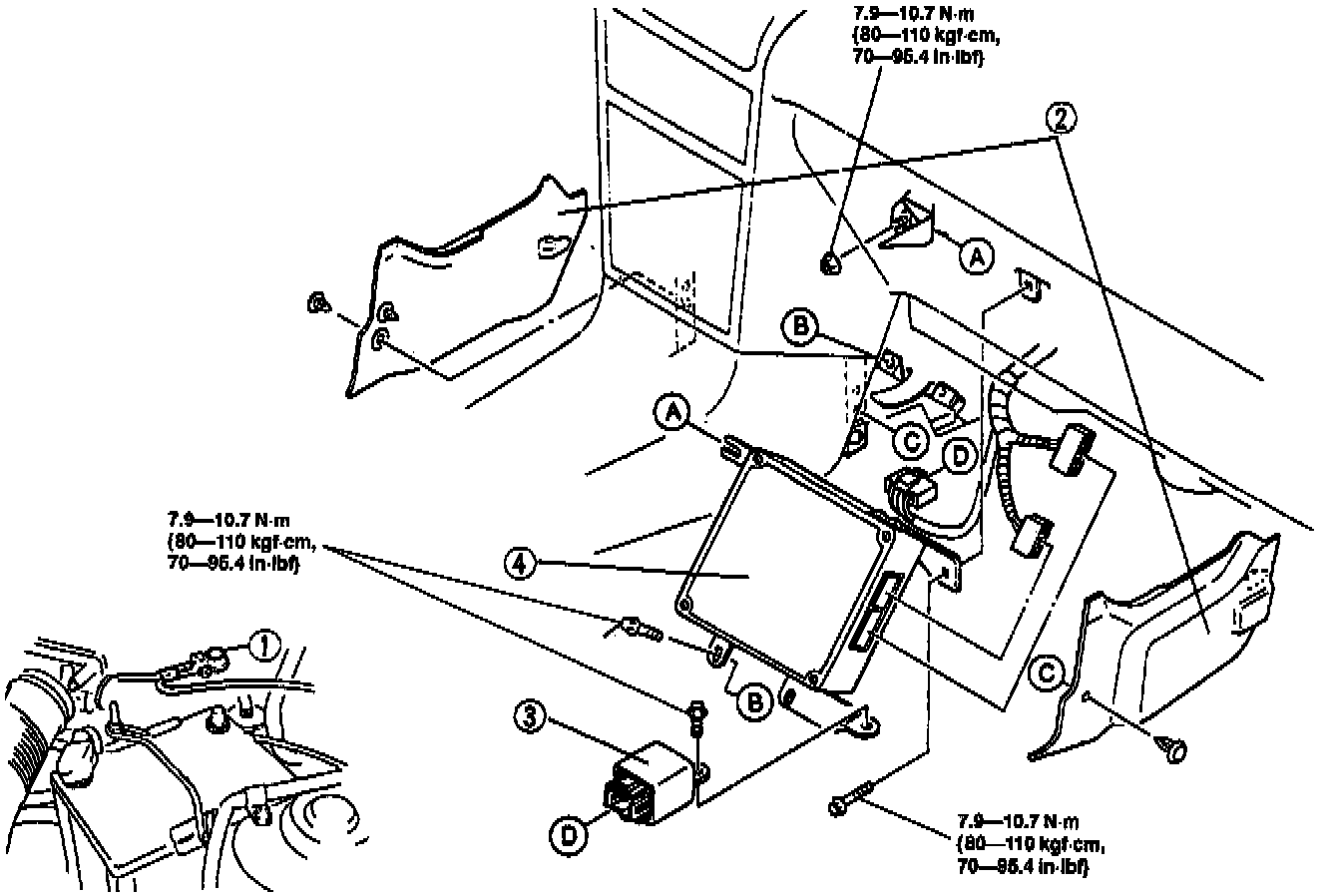

Remove components according to the numbered sequence shown in the image.

CAUTION: Obtain audio ant-theft access code before disconnecting battery cables.

1. Negative battery cable
2. Side trim
3. Fuel pump relay
4. Powertrain control module engine (PCME)

INSTALLATION
Install components in reverse order of removal sequence.
1. PCME
2. Fuel pump relay
3. Side trim
4. Negative battery cable
5. Enter audio "unlock" access code
