Code 15: (Heated Oxygen Sensor)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Code 15: (Heated Oxygen Sensor)

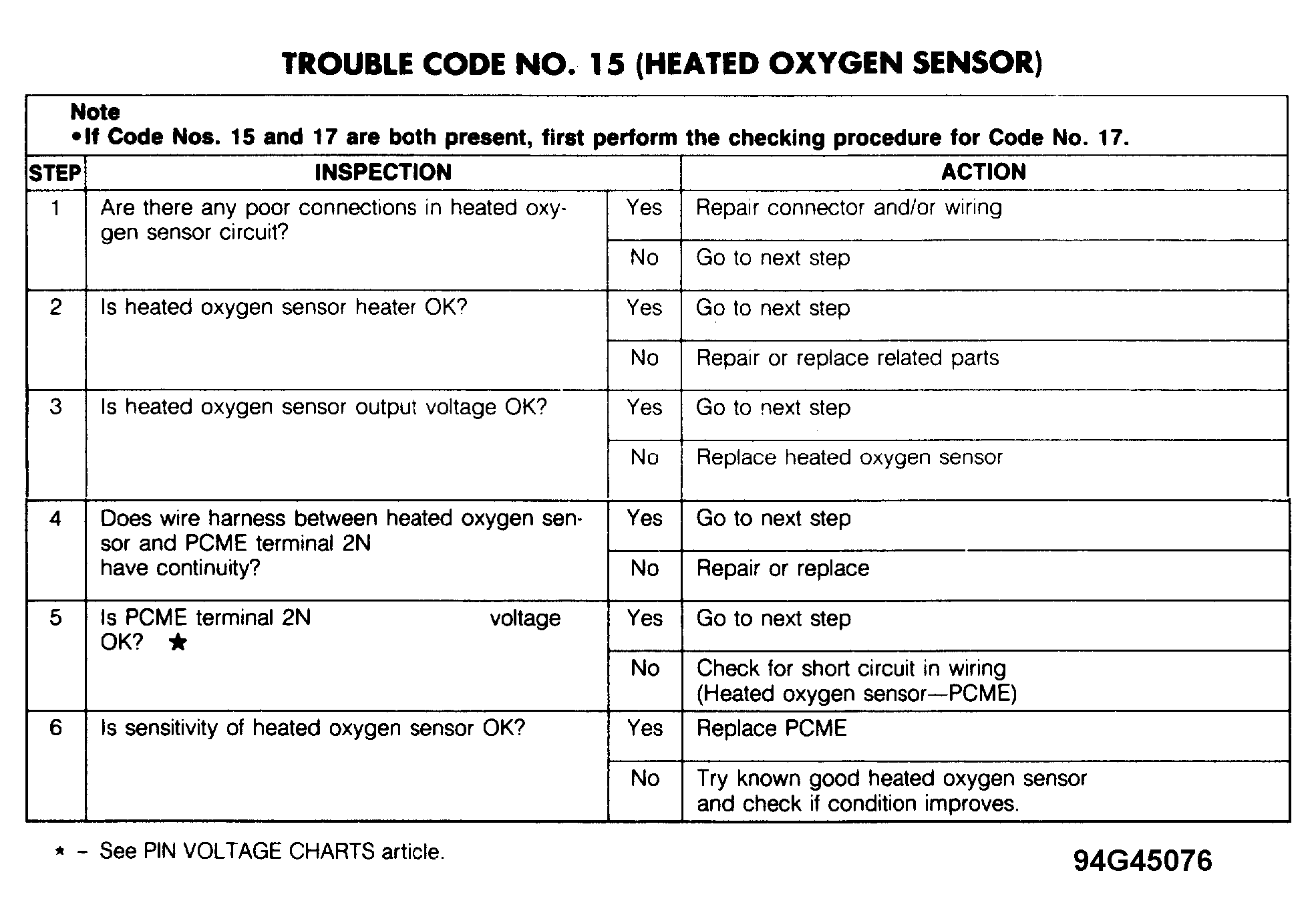

Fig 1: Trouble Code No. 15 Diagnostic Chart (Heated Oxygen Sensor)
