Wiper Motor Continuity
NOTE:

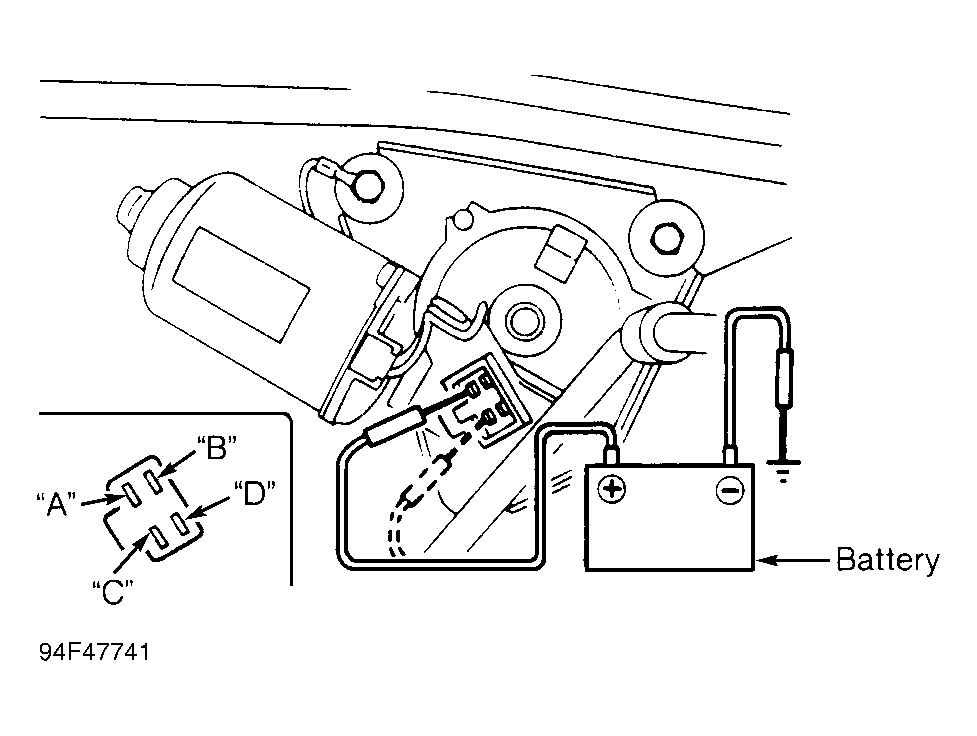

Refer toFigure
when conducting the following tests.
With wiper motor in park position, ensure continuity exists between terminals "A", "B" and "C". With wiper motor in any other position than park, continuity should exist between terminals "A" and "C", and "B" and "D".
