Code 16: (EGR Switch - CALIF)

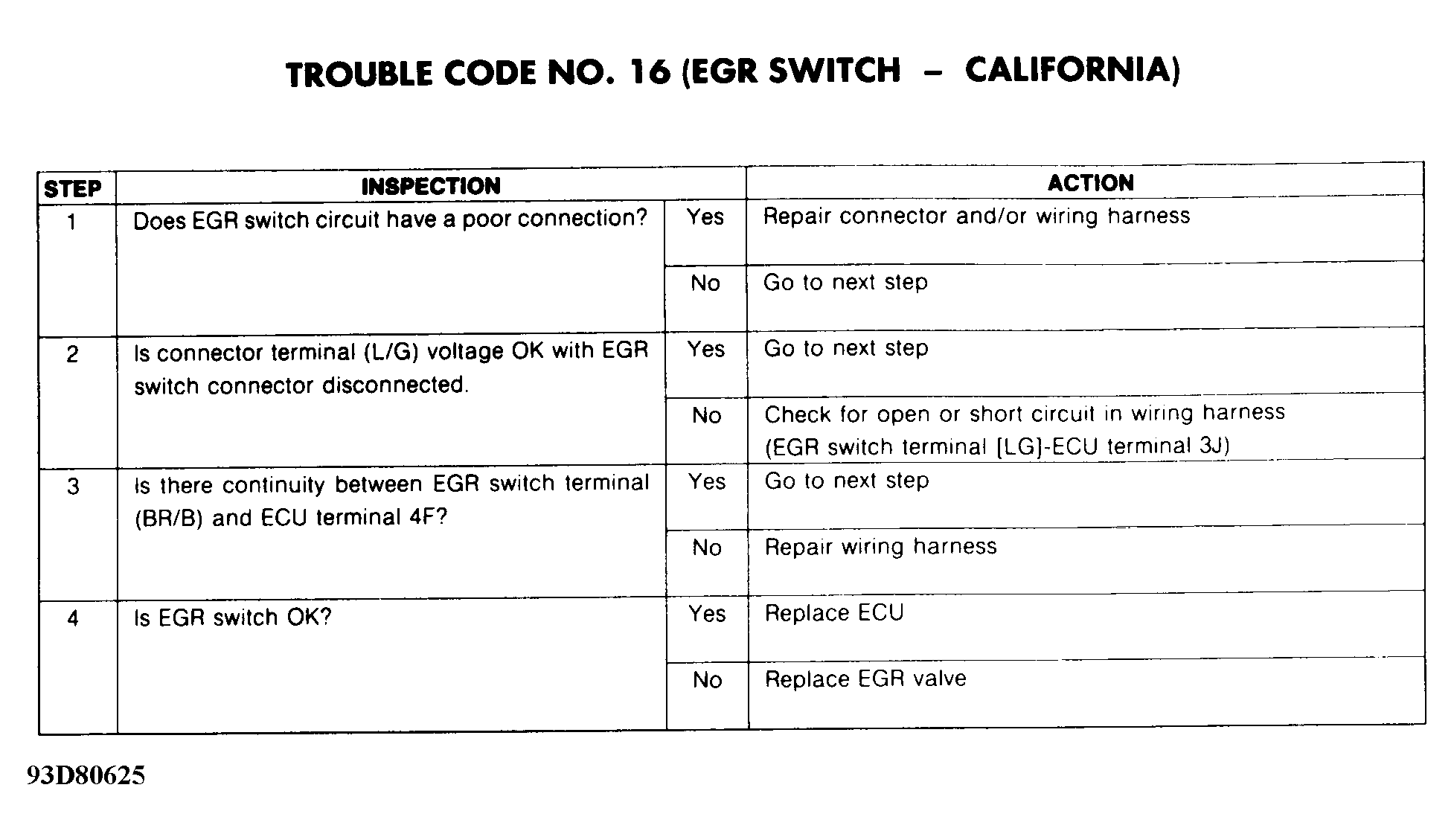

Fig 1: Trouble Code No. 16 Diagnostic Chart (EGR Switch - California)

Fig 2: Trouble Code No. 16 Schematic (EGR Switch - California)
