Code 6: (Speedometer Sensor)

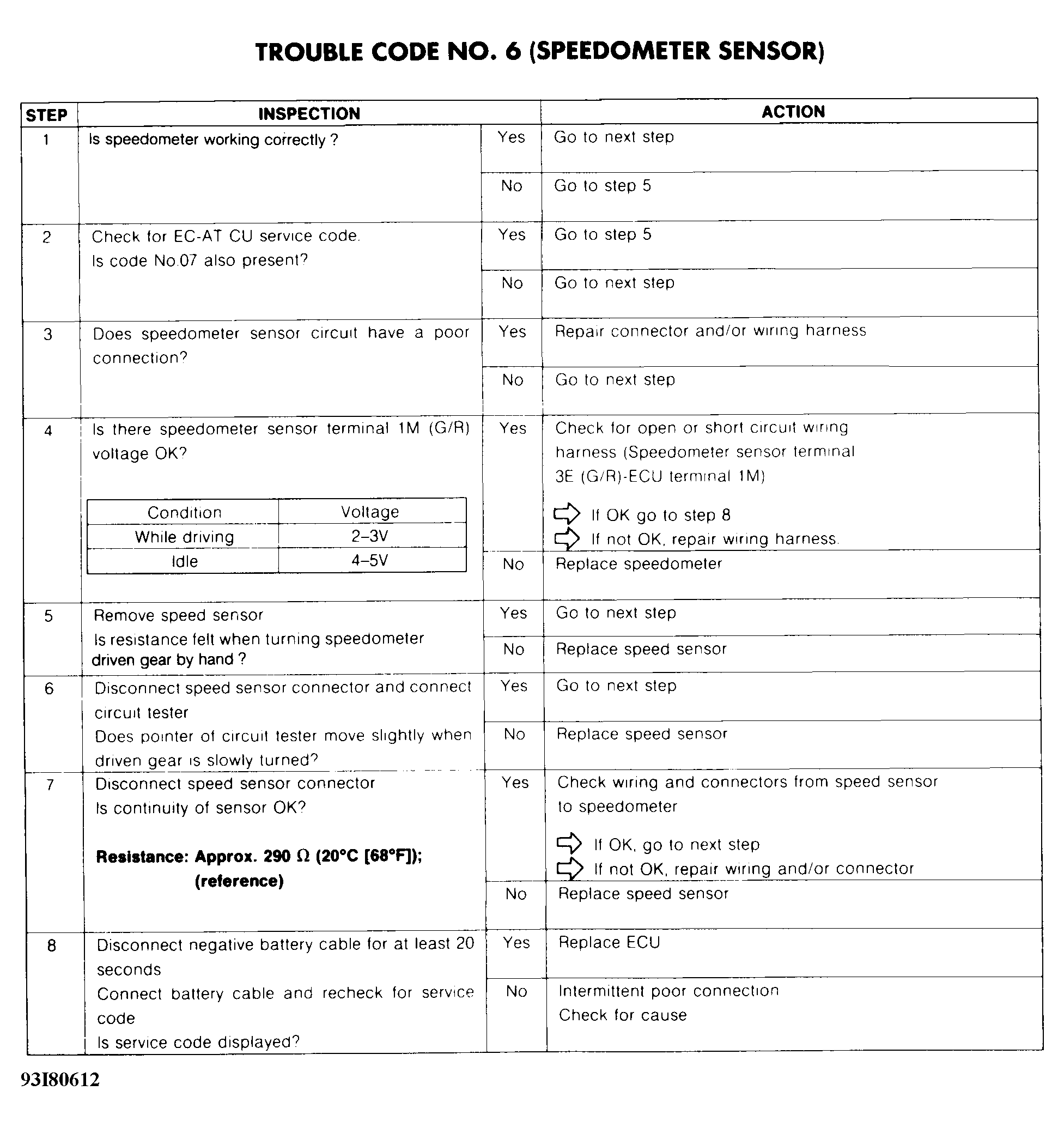

Fig 1: Trouble Code No. 6 Diagnostic Chart (RX7) (Speedometer Sensor)

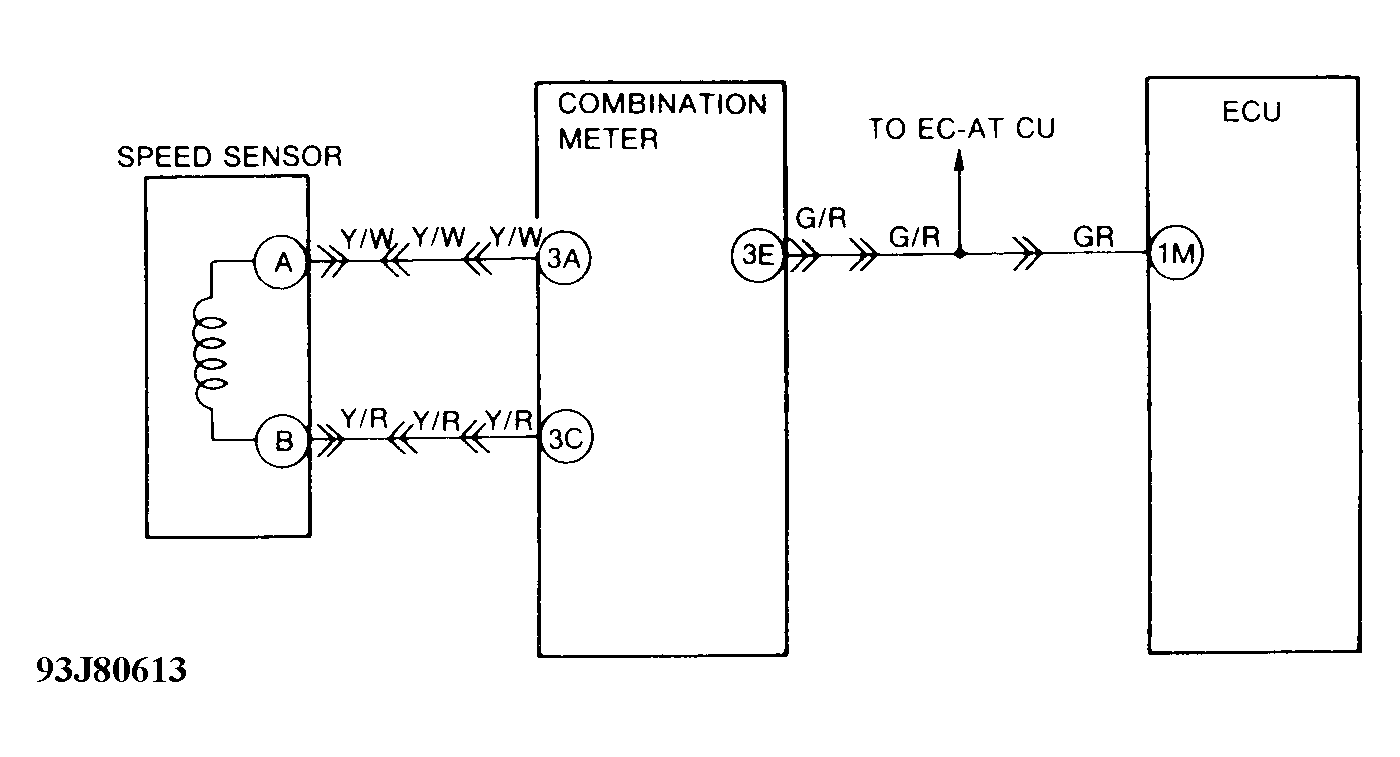

Fig 2: Trouble Code No. 6 Schematic (RX7) (Speedometer Sensor)
