Relays & Solenoids: Solenoids: Notes

NOTE: All solenoids (used on all vehicles except B2300, B3000, B4000 & Navajo) operate the same way. See Fig 1 to locate specific solenoids used on RX7.

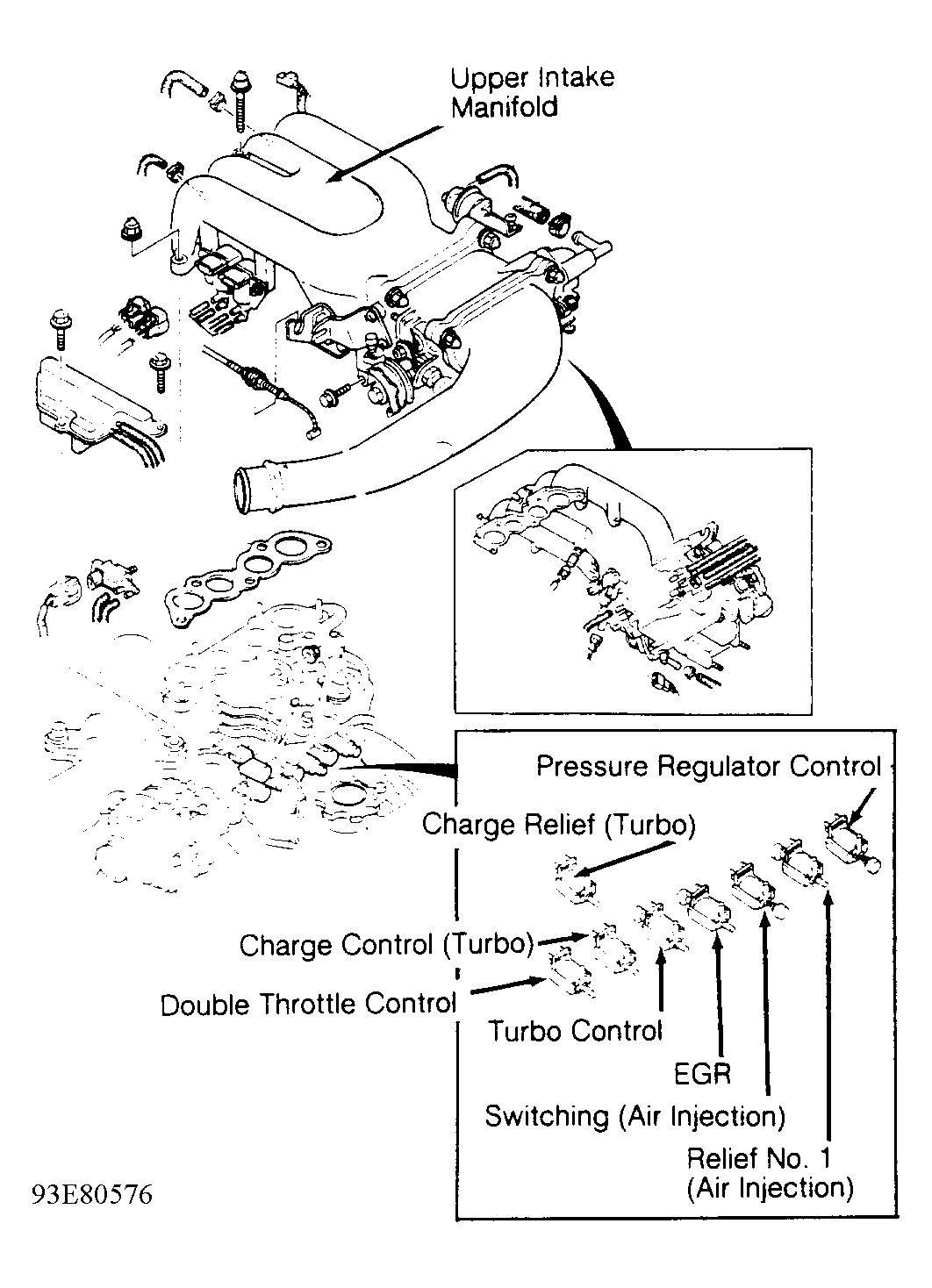

Fig 1: Locating Vacuum Solenoids (RX7)
G93E80576Courtesy of MAZDA MOTORS CORP.
