Home >> Mazda >> 1994 >> RX7 2RTR-1308cc 80 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Ignition System >> Engine Control System, Fuel Control System, Ignition System
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

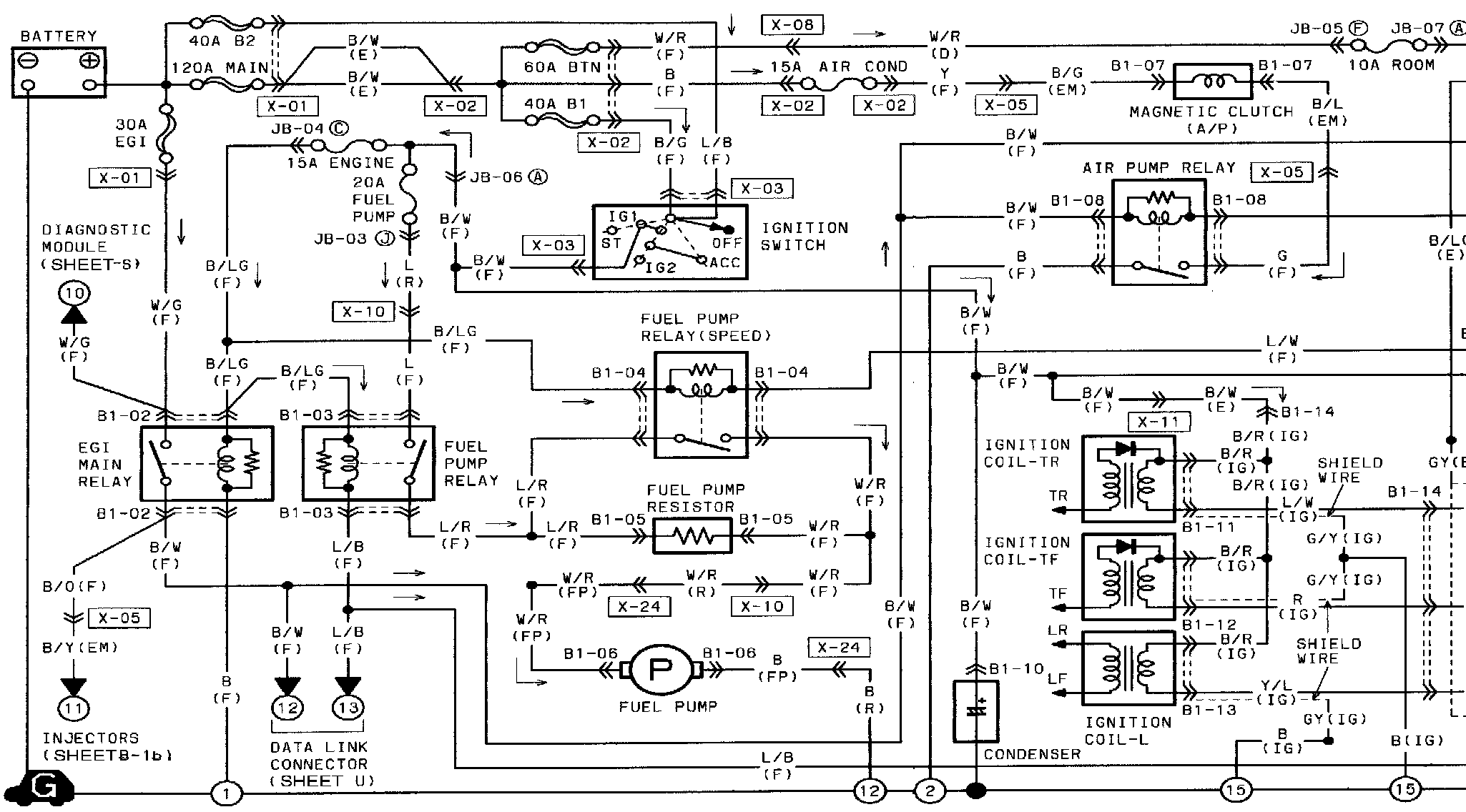

Engine Control System, Fuel Control System, Ignition System

�@aCEngine Control System, Fuel Control System, Ignition System B-1A:
