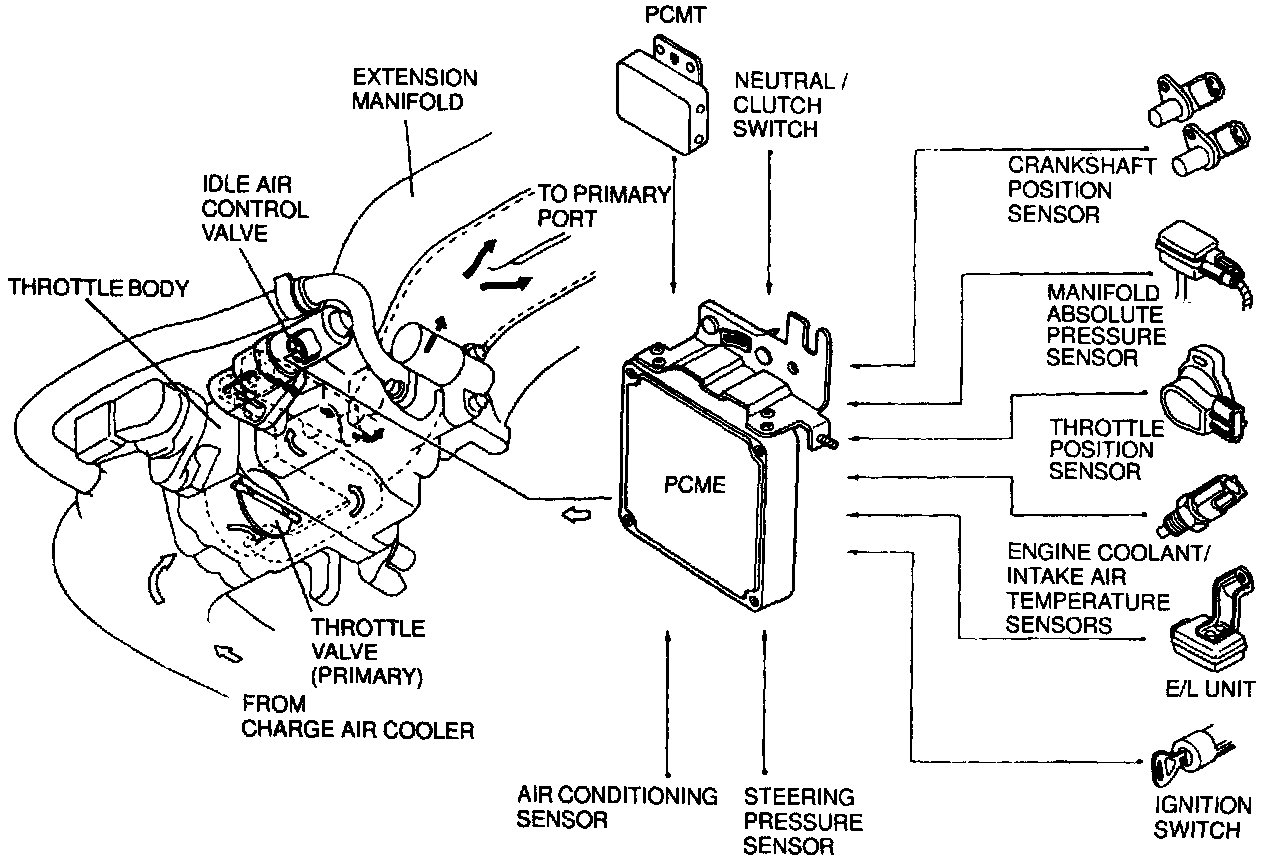

Idle Speed Control System

Purpose
Idle-speed control system controls the bypass air amount that passes through the throttle valve.

Operation
The idle-speed control system performs closed loop control so that the engine idles smoothly and at the target speed. The system also performs the function of the anti-afterburn valve (AAV), thereby eliminating the AAV and simplifying the deceleration control system.
