Control System Component Overview

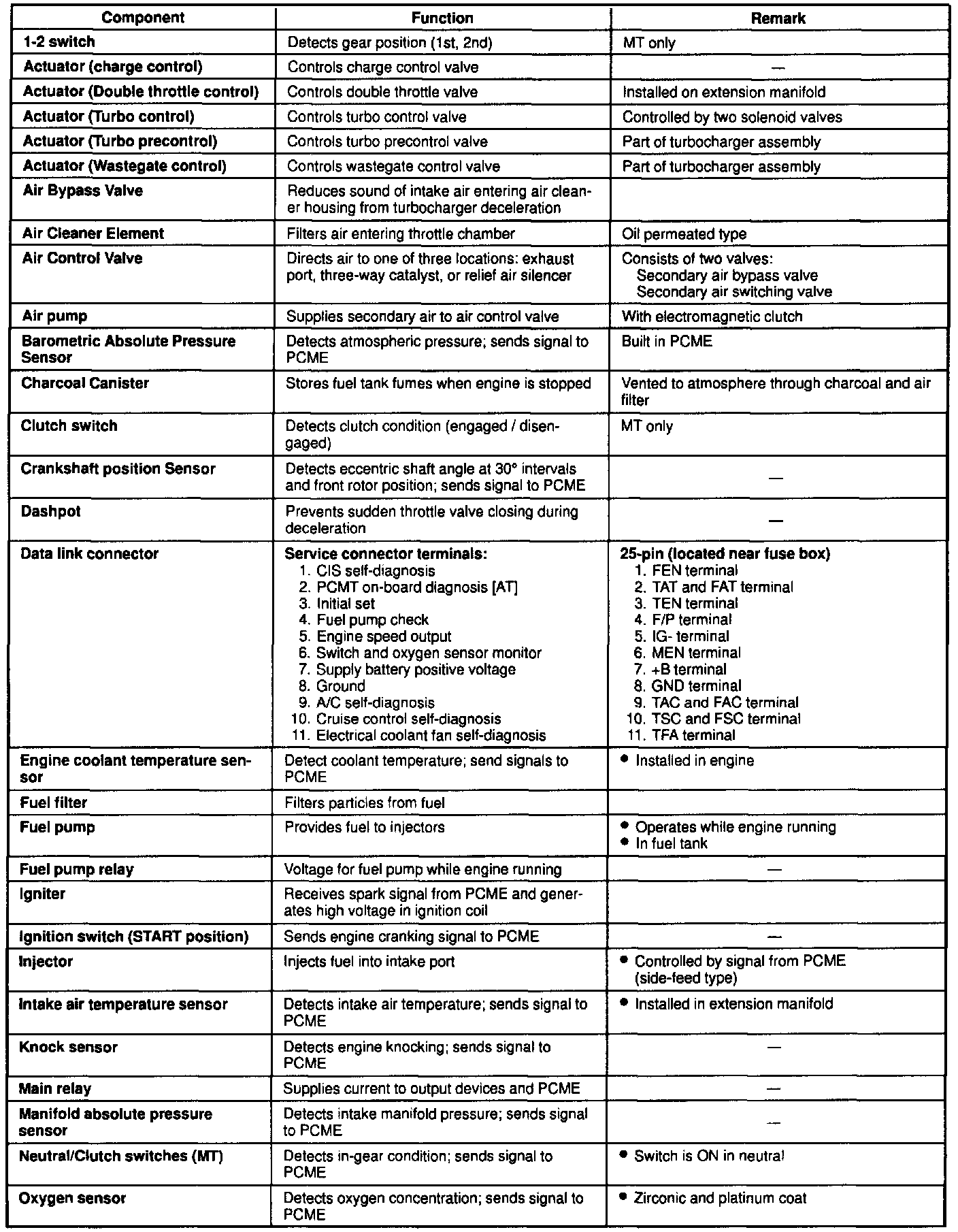

Actuator Through Oxygen Sensor

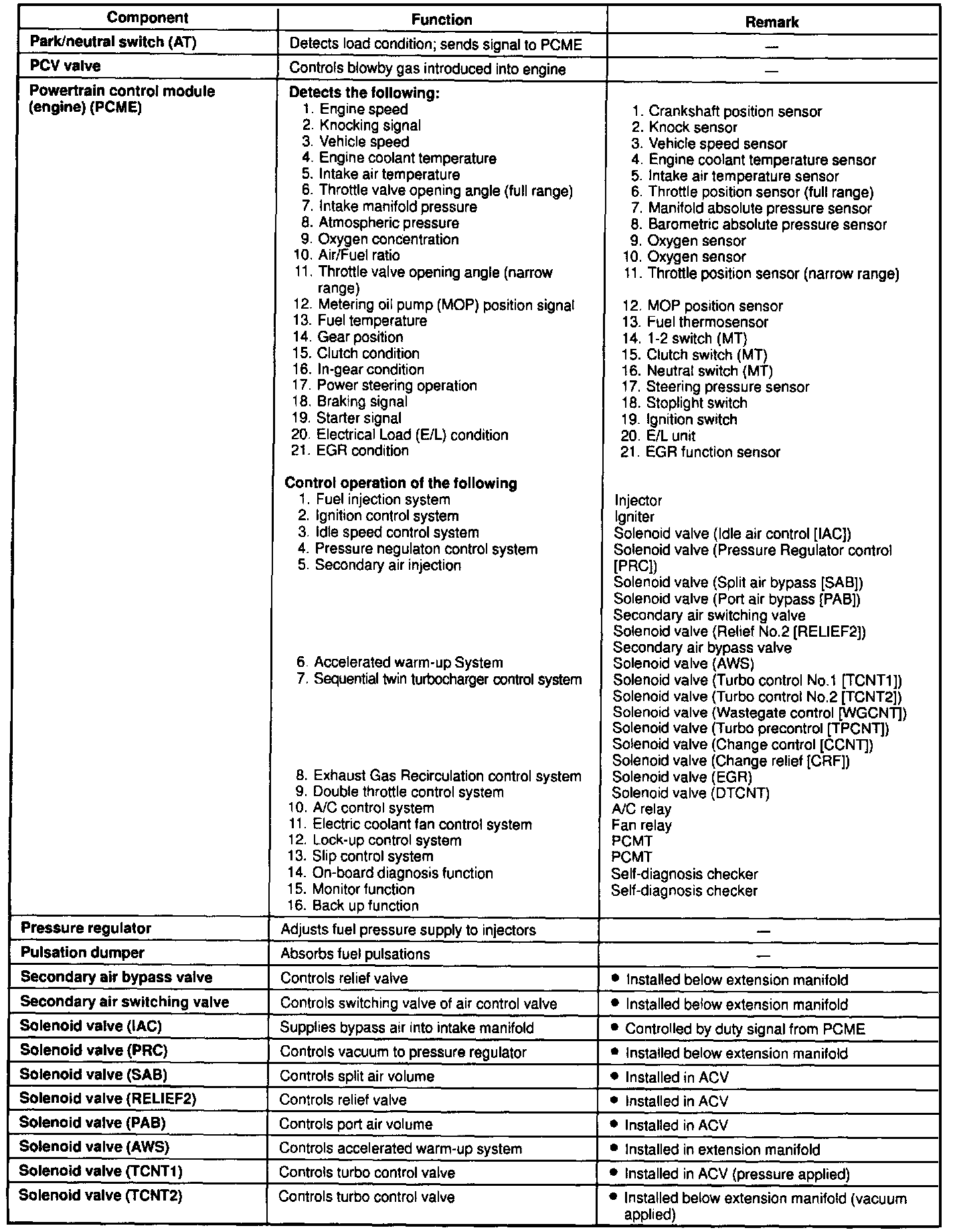

Park/Neutral Switch Through Solenoid Valve

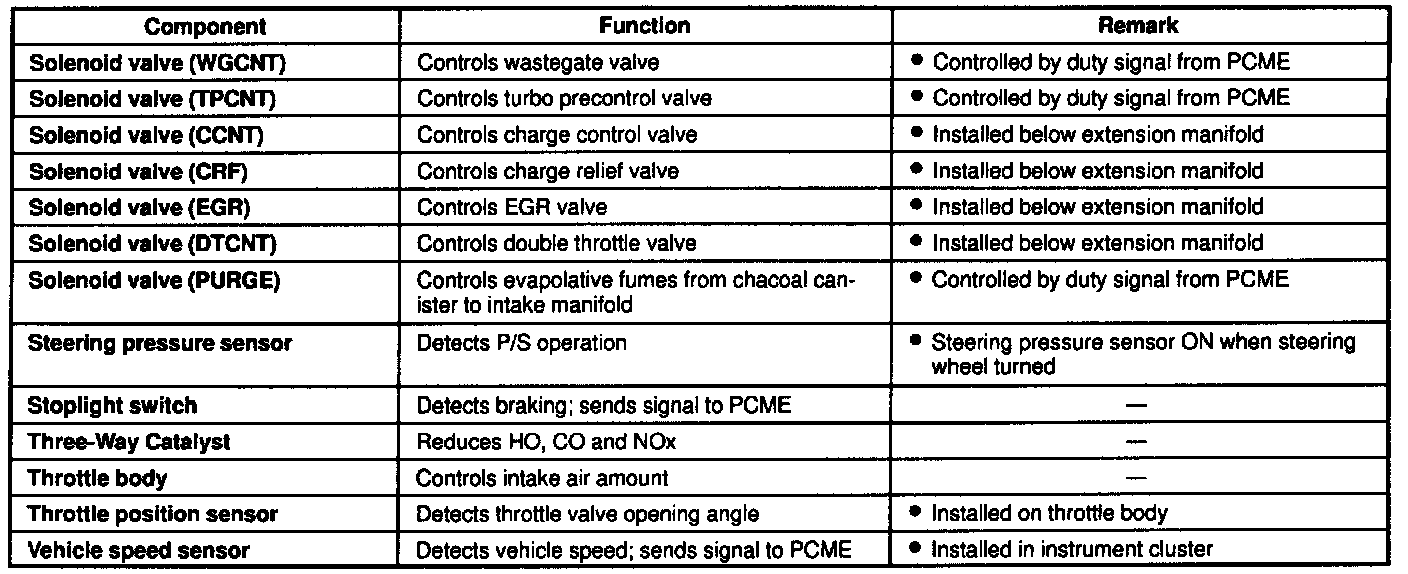

Solenoid Valve Through Vehicle Speed Sensor
