Electrical Specifications
>>
Antitheft and Alarm Systems
>>
Terminals I-P
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Terminals I-P

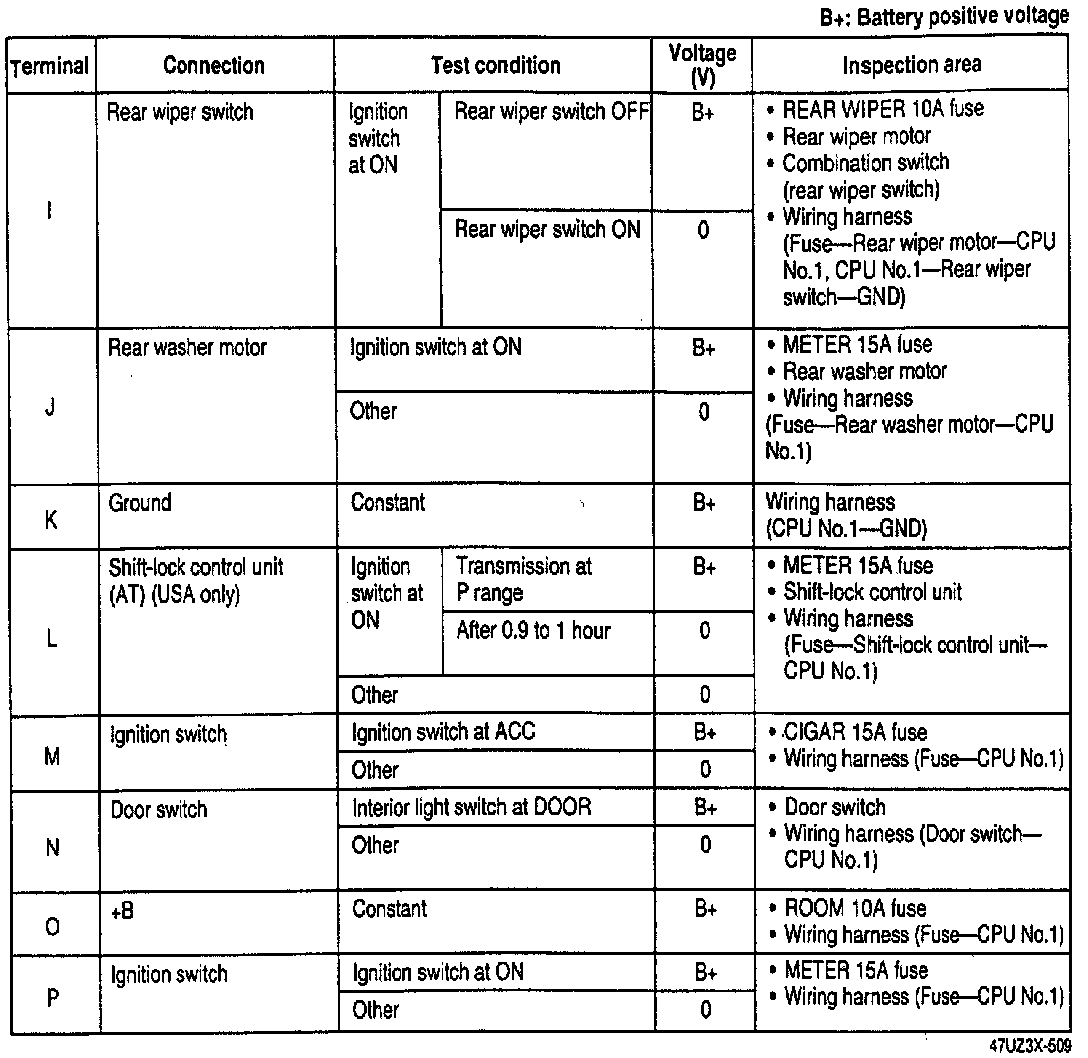

Terminal Voltage Charts:
