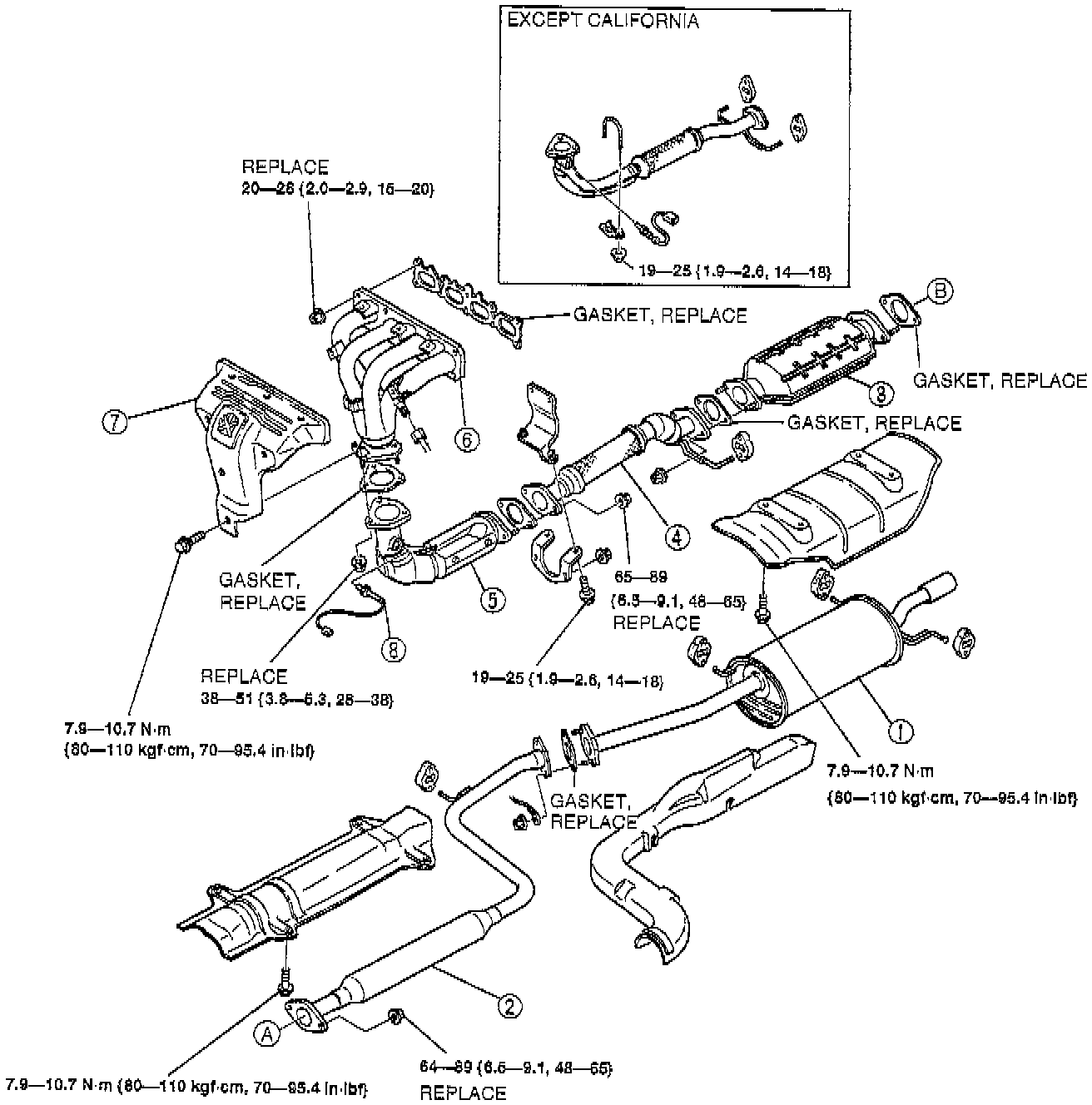

Exhaust System




1. Main silencer
2. Presilencer
3. Three way catalytic converter
4. Front pipe assembly
5. Warm up three way catalytic converter (California only)
6. Exhaust manifold
7. Exhaust manifold insulator
8. Heated oxygen sensor
