Fuel System

DESCRIPTION

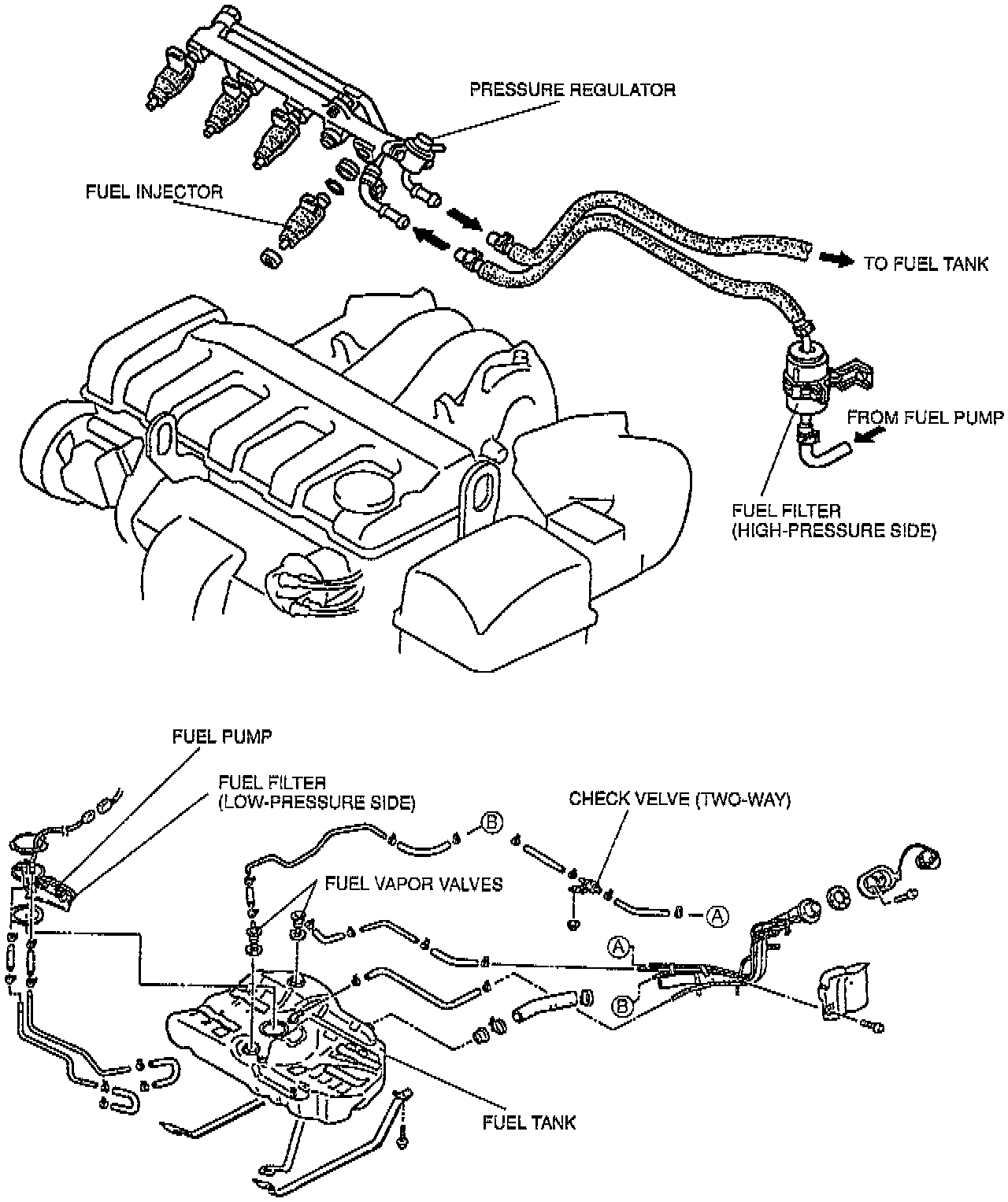

This system supplies the fuel to the fuel injectors at a constant pressure. Fuel is metered and injected into the [1][2]intake manifold according to injection control signals from the ECM. The system consists of the fuel tank, fuel pump, fuel filters, pressure regulator, pressure regulator control solenoid valve, fuel injectors, and fuel pump relay.
