Coolant Fan Control System




DESCRIPTION

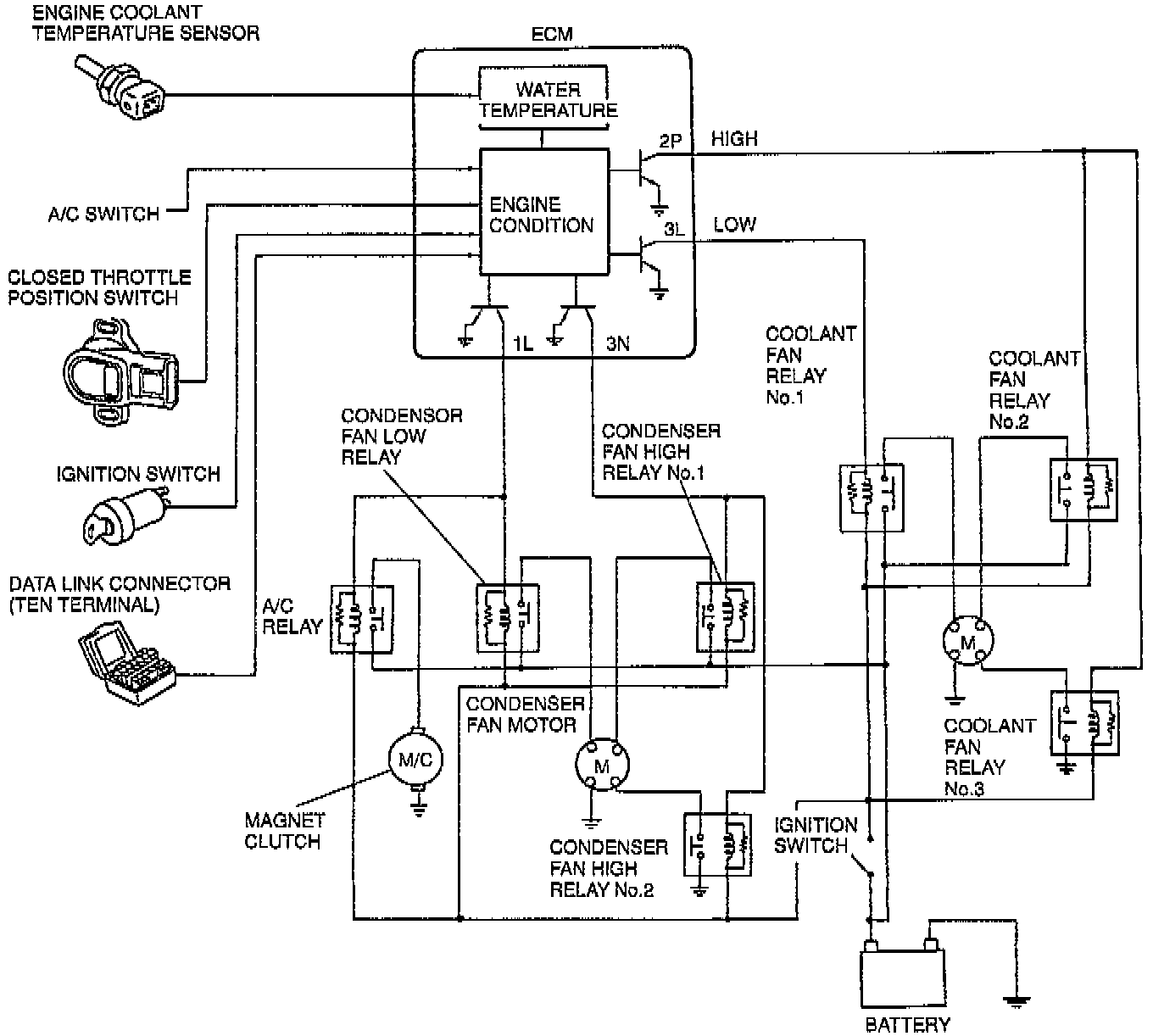

To improve idle smoothness and engine reliability, the ECM and the coolant fan control system control the electric fan operation. This system consists of the coolant fan, condenser fan, fan relays, ECM, and input devices.
