Fuel System




DESCRIPTION

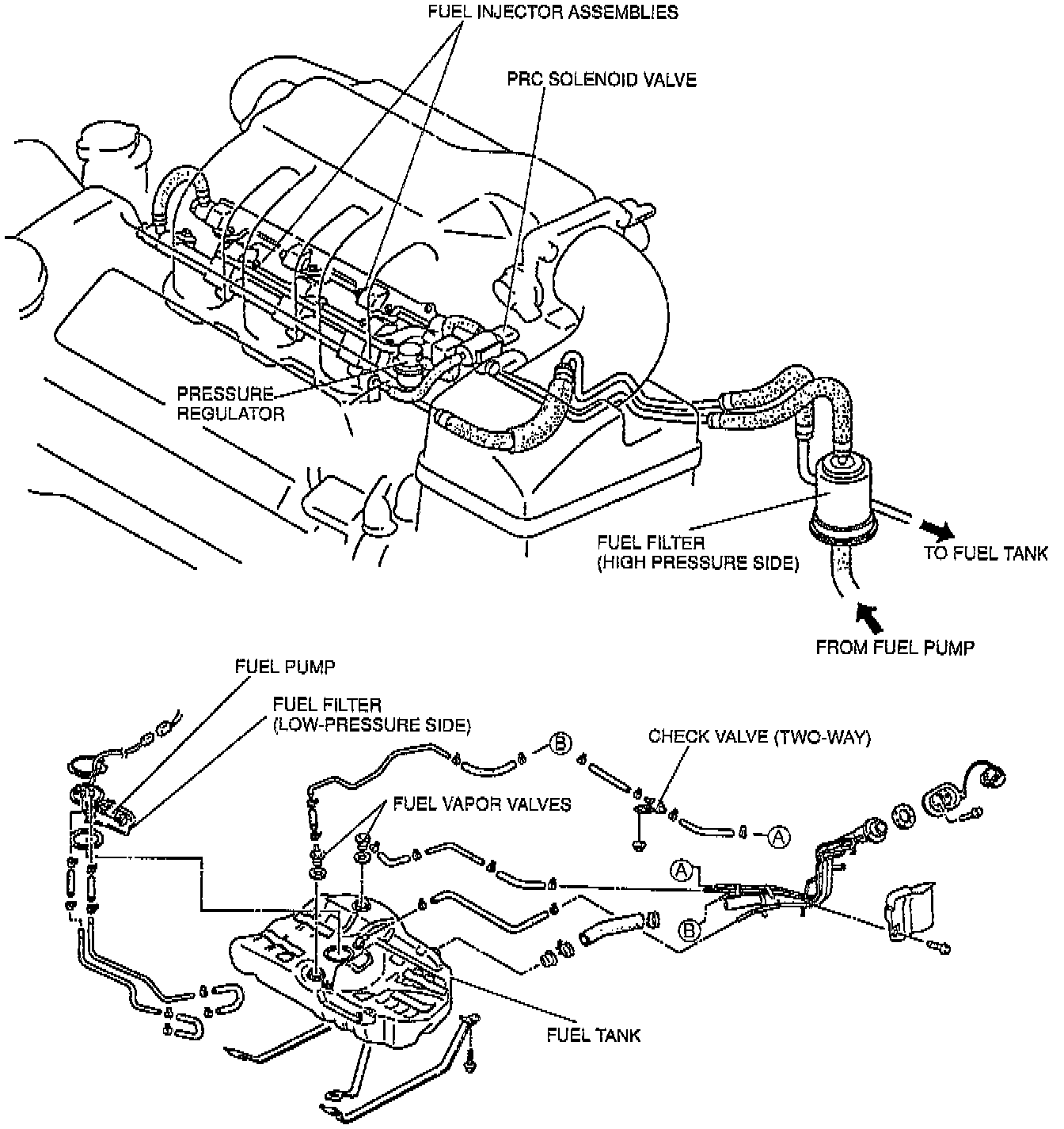

This system supplies fuel to the fuel injectors at a constant pressure. Fuel is metered and injected into the intake manifold ports according to injection control signals from the ECM. The system consists of the fuel tank, fuel pump, fuel filters, fuel distributor, pressure regulator, fuel injectors, and fuel pump relay.
