Electrical Specifications

TERMINAL VOLTAGE REFERANCE CHARTS




TCM TERMINAL VIEW

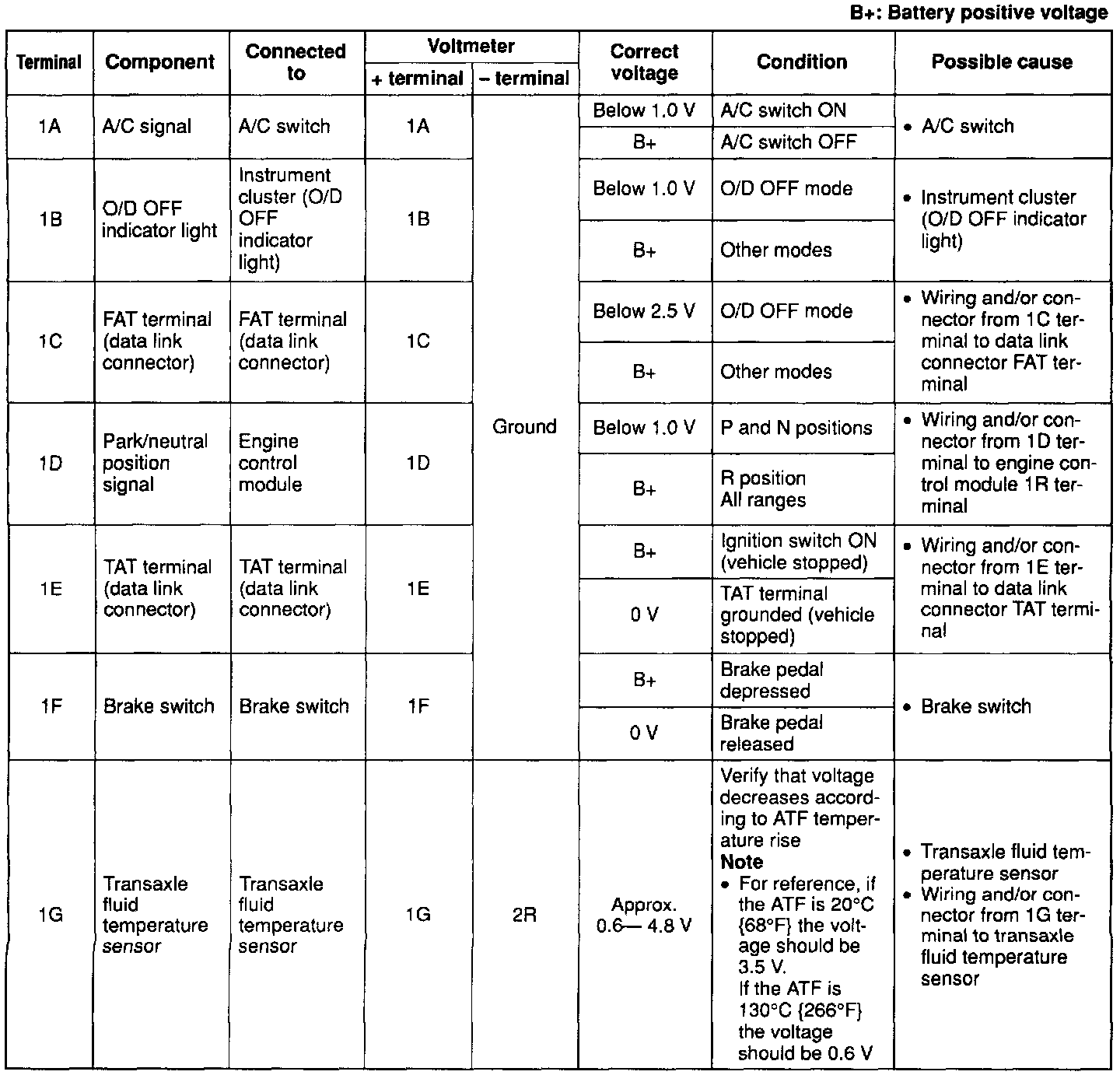

1A THROUGH 1G

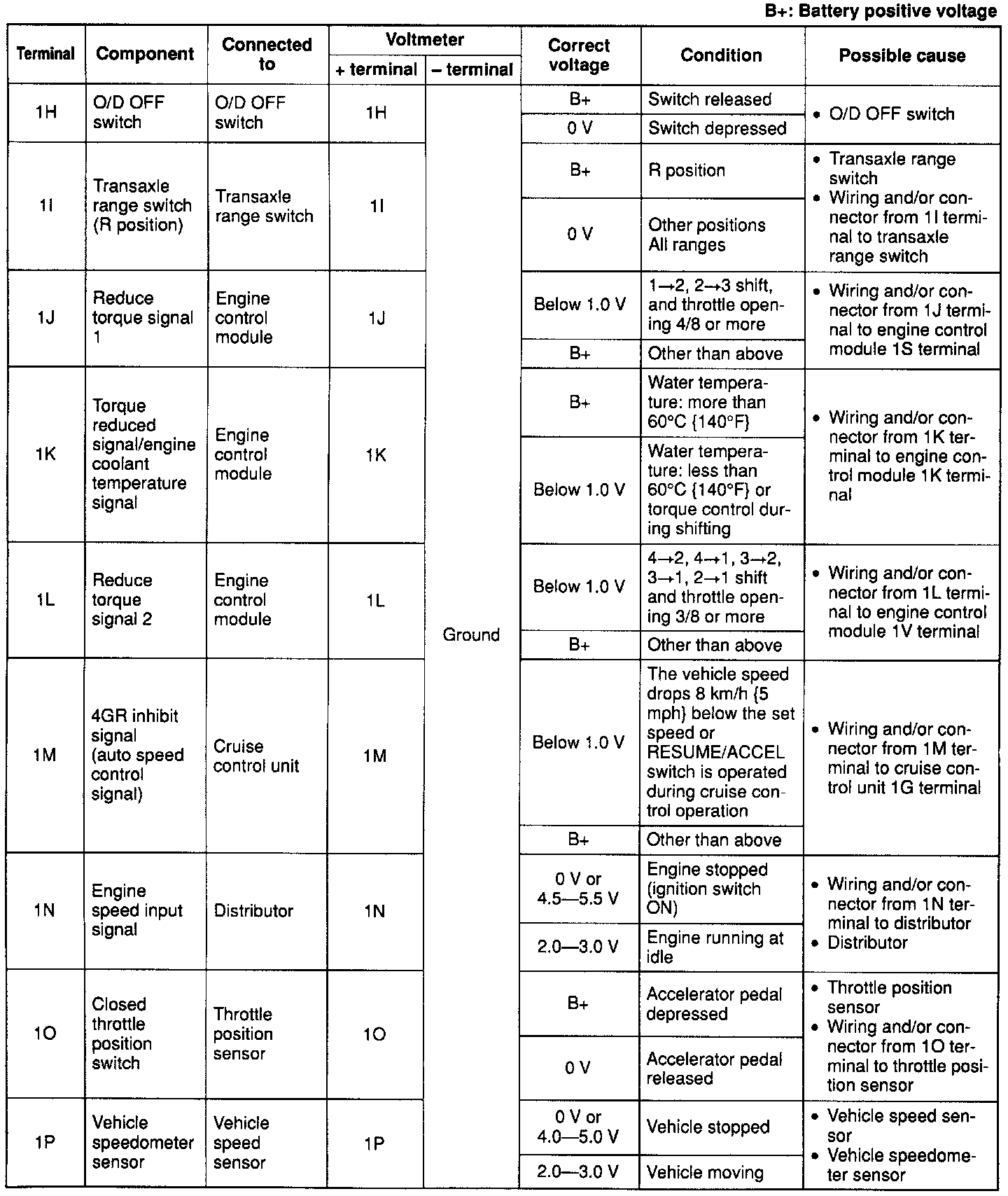

1H THROUGH 1P

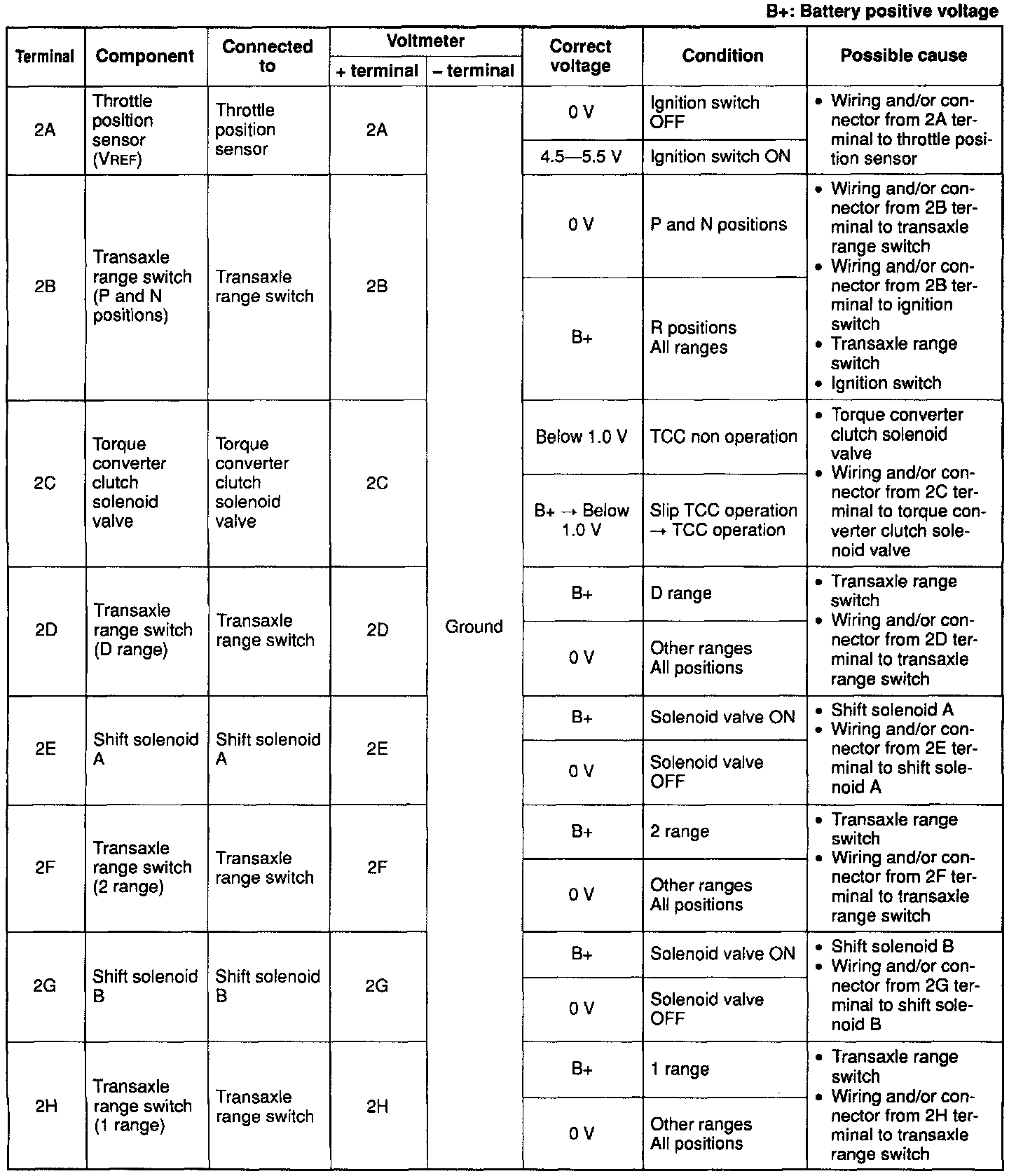

2A THROUGH 2H

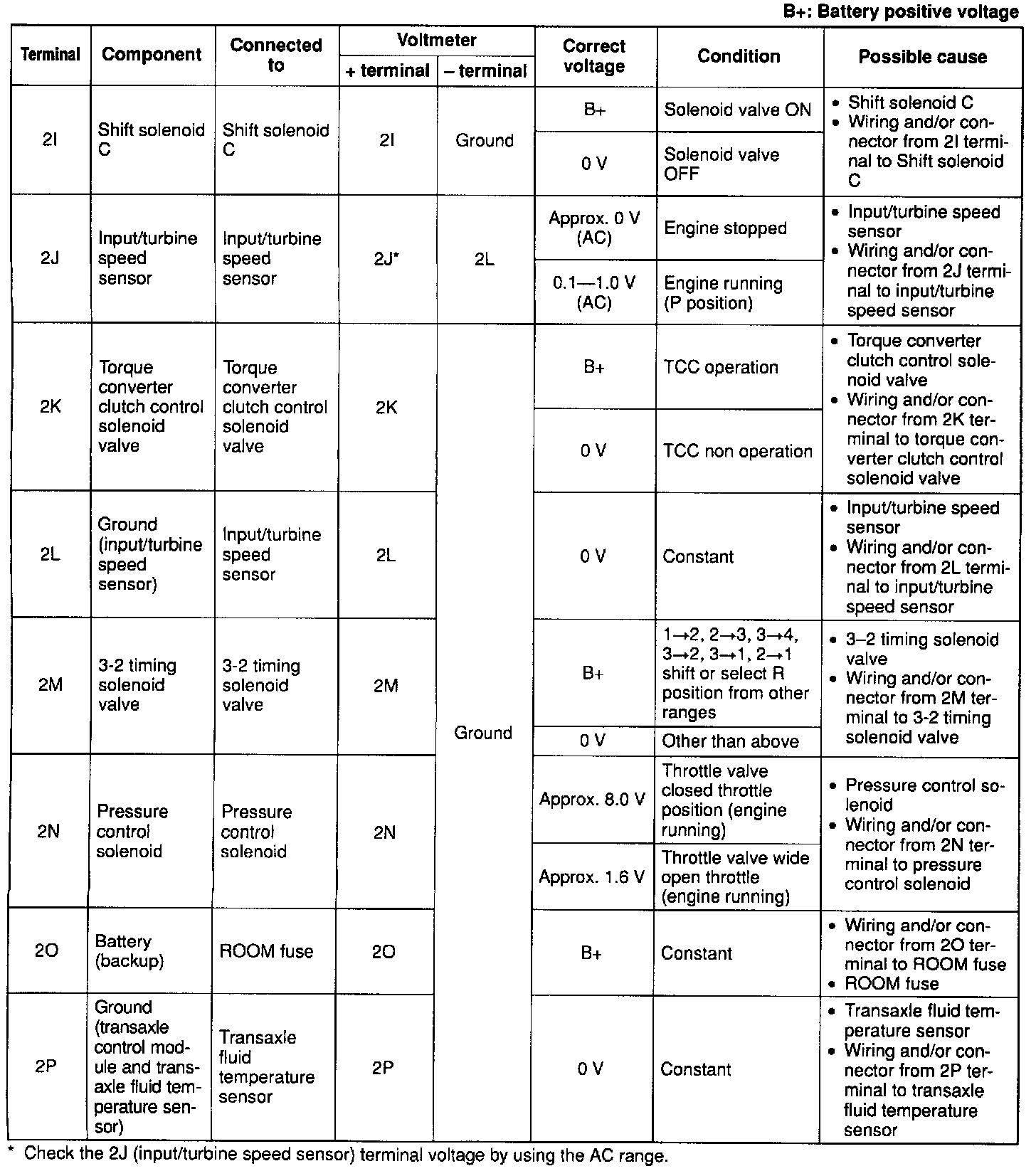

2I THROUGH 2P

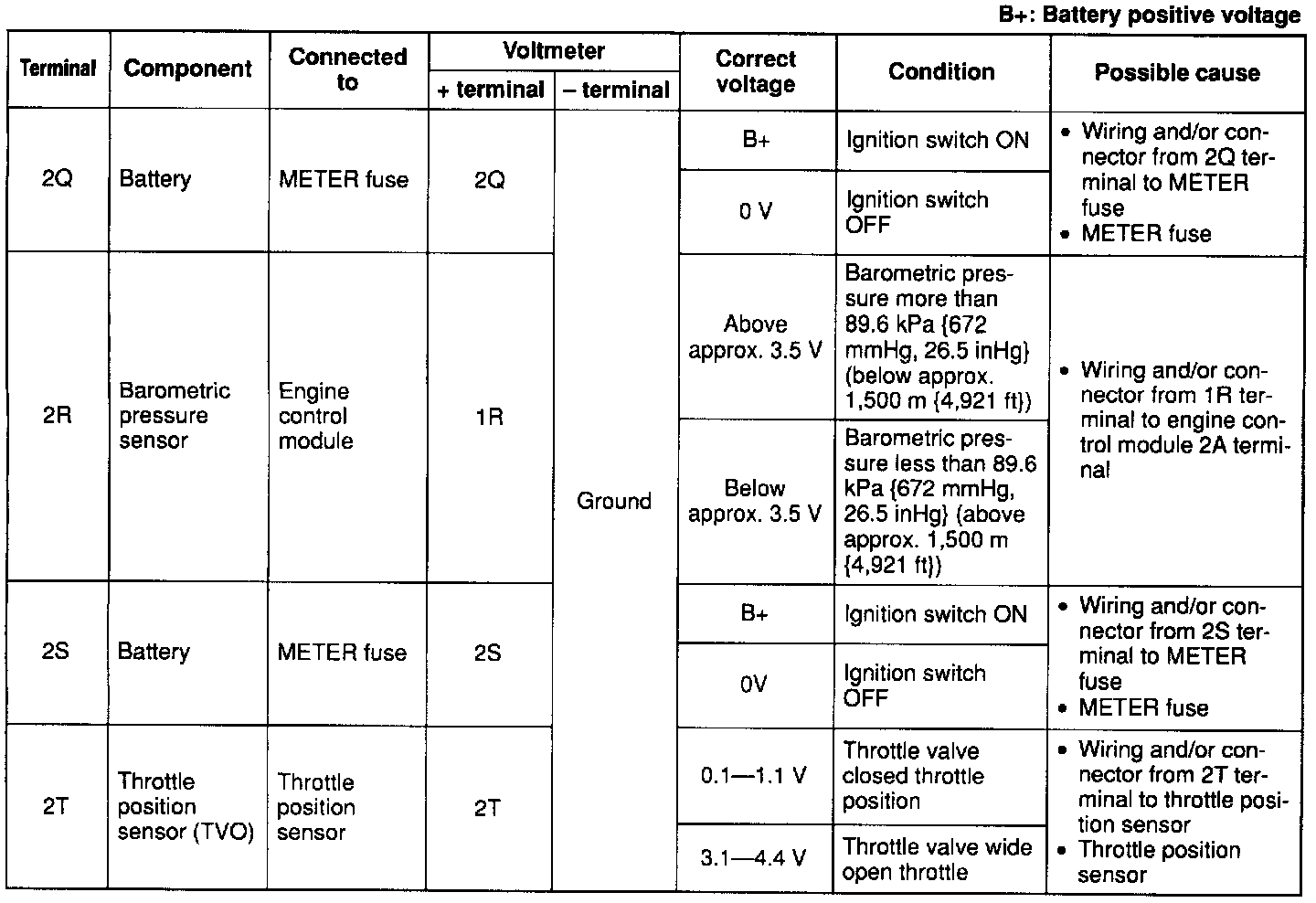

2Q THROUGH 2T
