Control Module, A/T

TERMINAL VOLTAGE CHARTS (Reference Data)

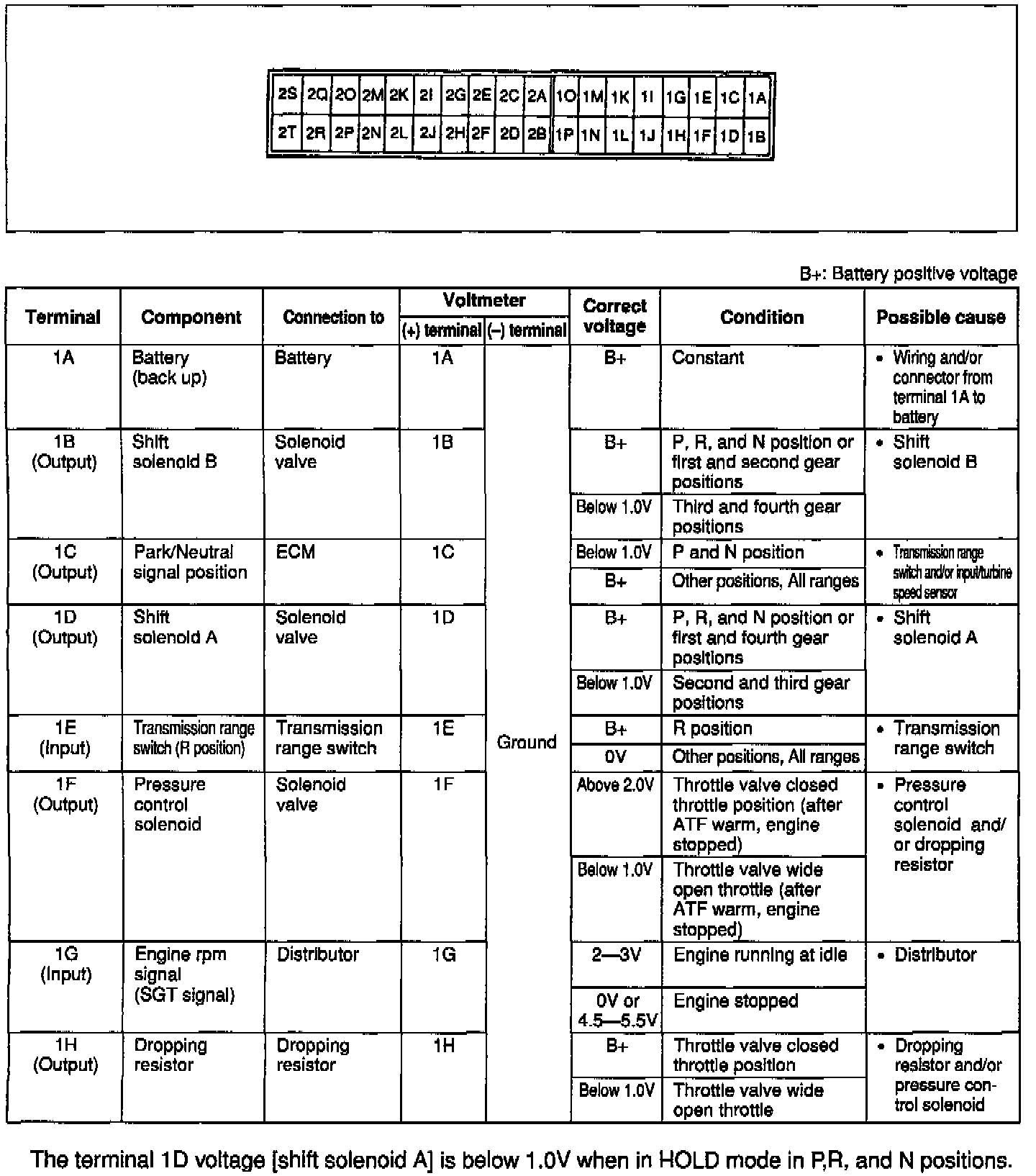

Terminals 1A Through 1H

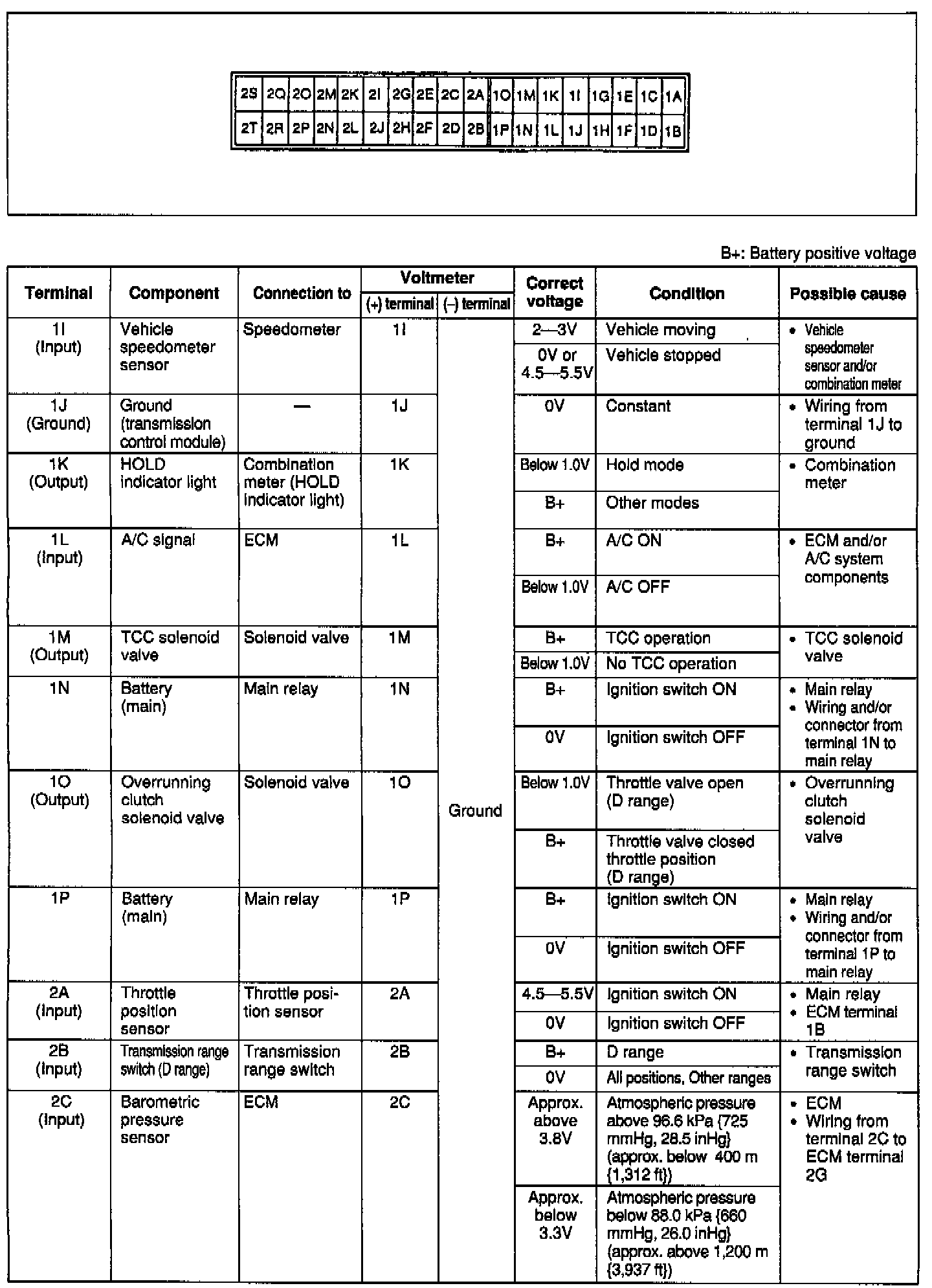

Terminals 1I Through 2C

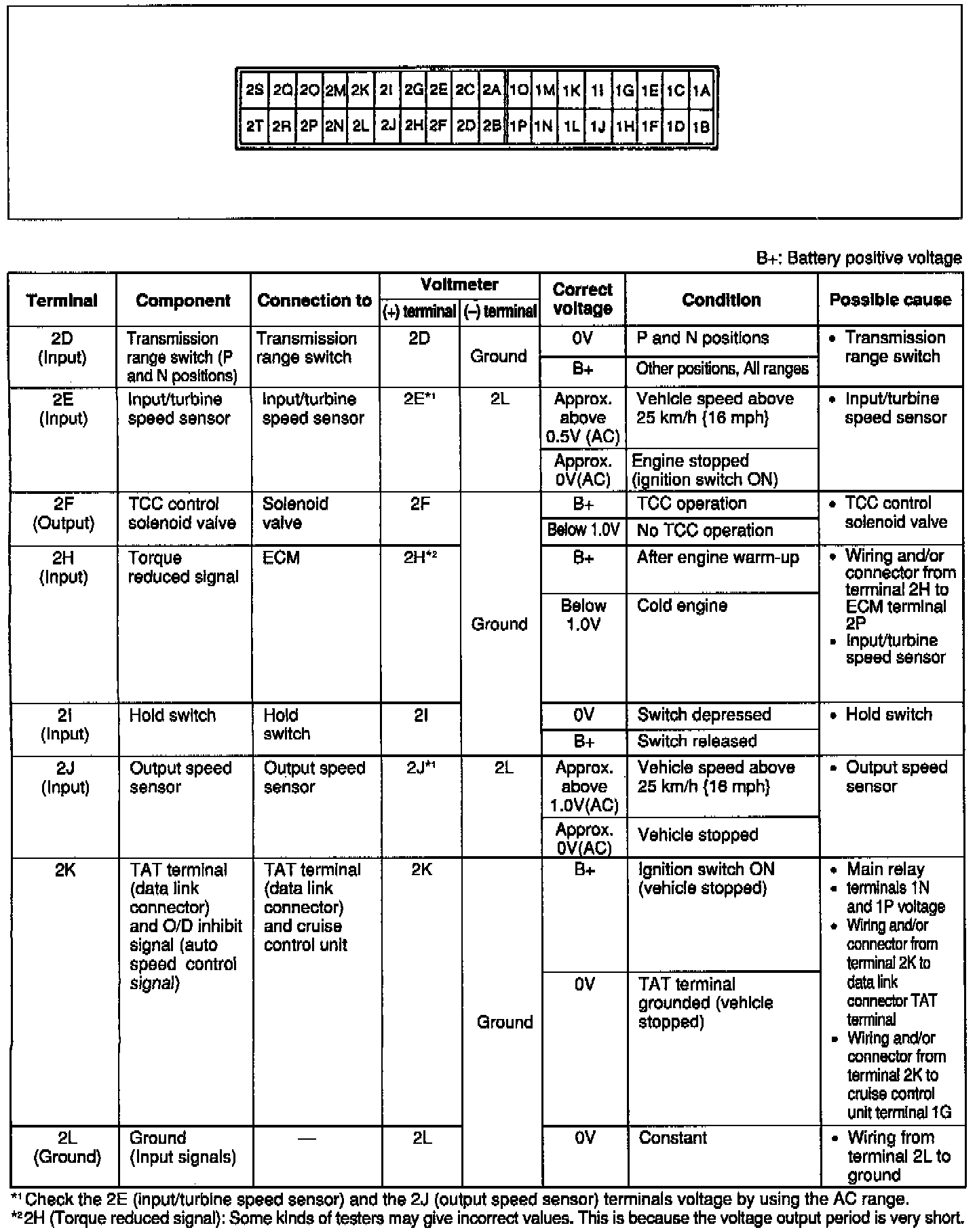

Terminals 2D Through 2L

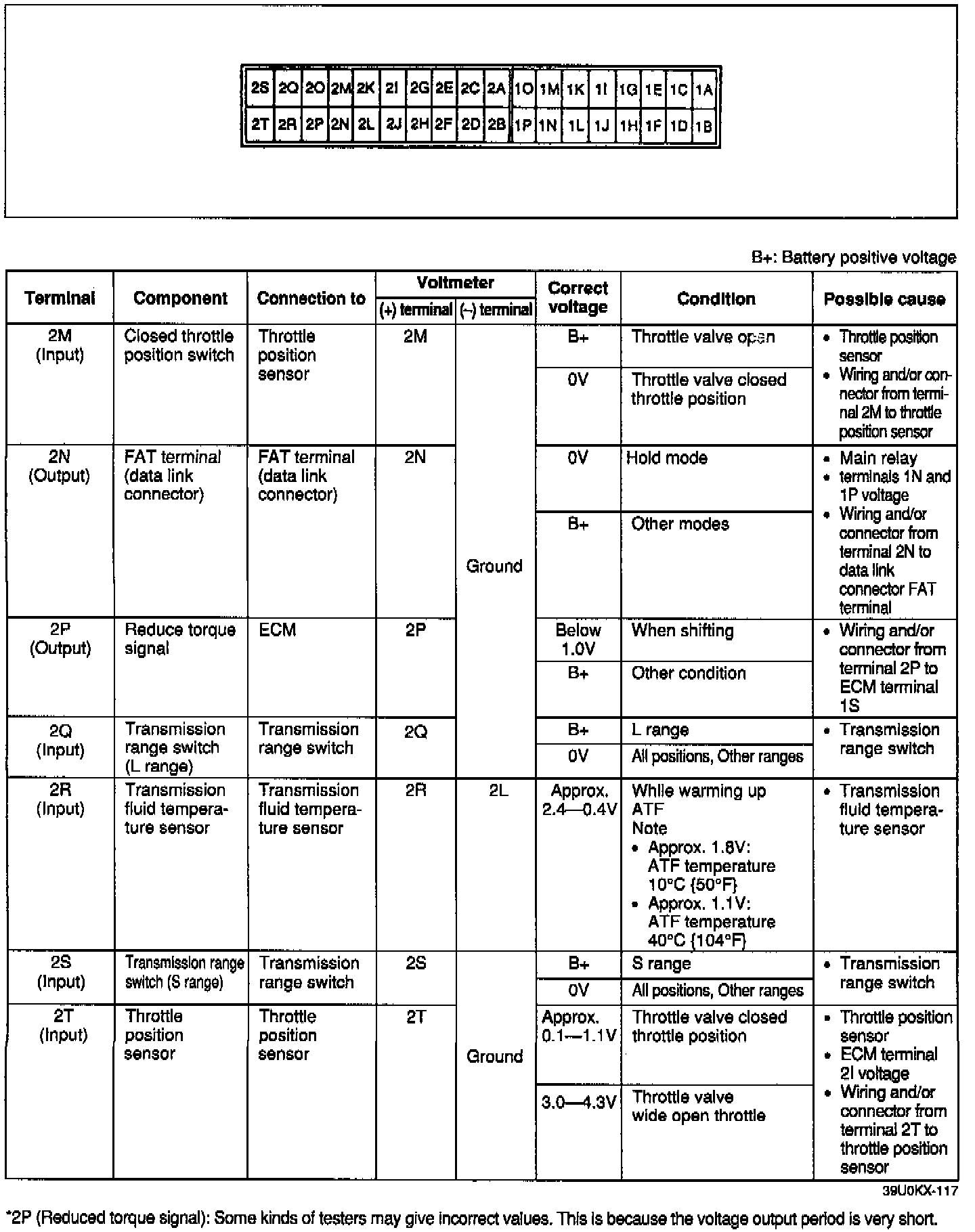

Terminals 2M Through 2T
