Mazda
>>
1995
>>
929 V6-3.0L DOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>
Terminals 1L-2C
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Terminals 1L-2C

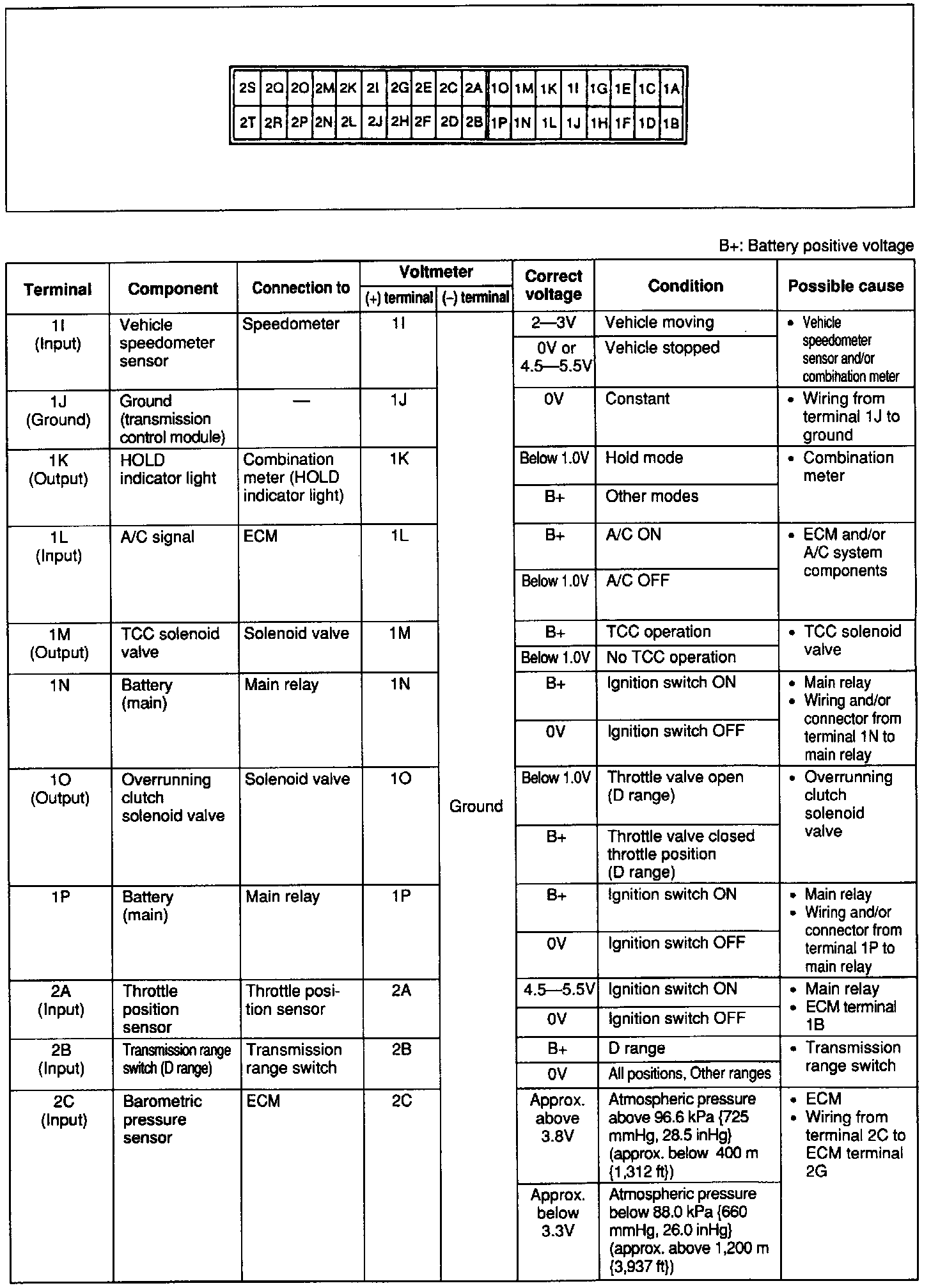

Terminal Voltage Chart:
