Home >> Mazda >> 1995 >> 929 V6-3.0L DOHC >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Engine Control Module >> Terminal 3E Through 3N

April 5, 2026: LEMON Manuals is launched! Read the announcement.

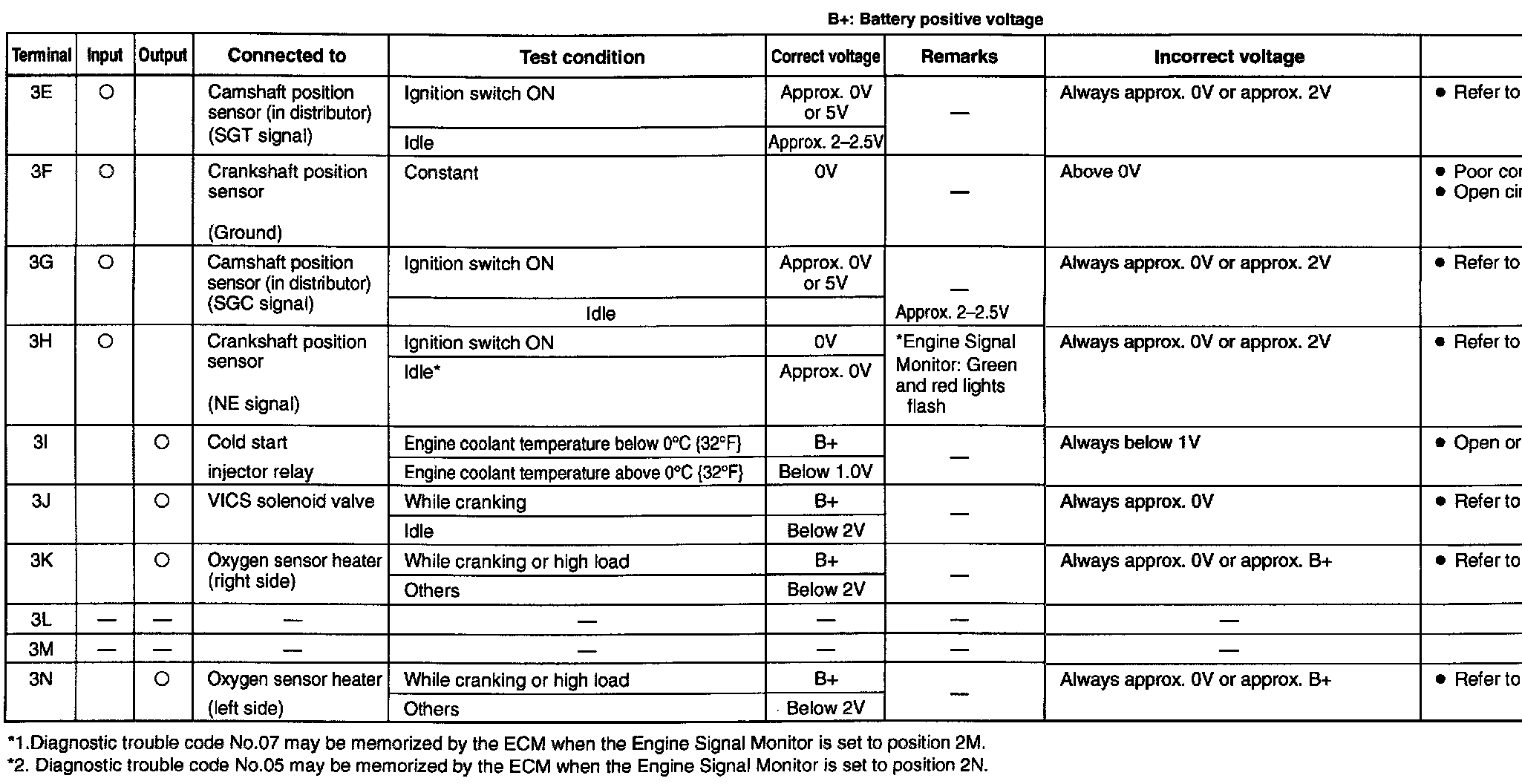

Terminal 3E Through 3N
