Wheel Hubs: Specifications

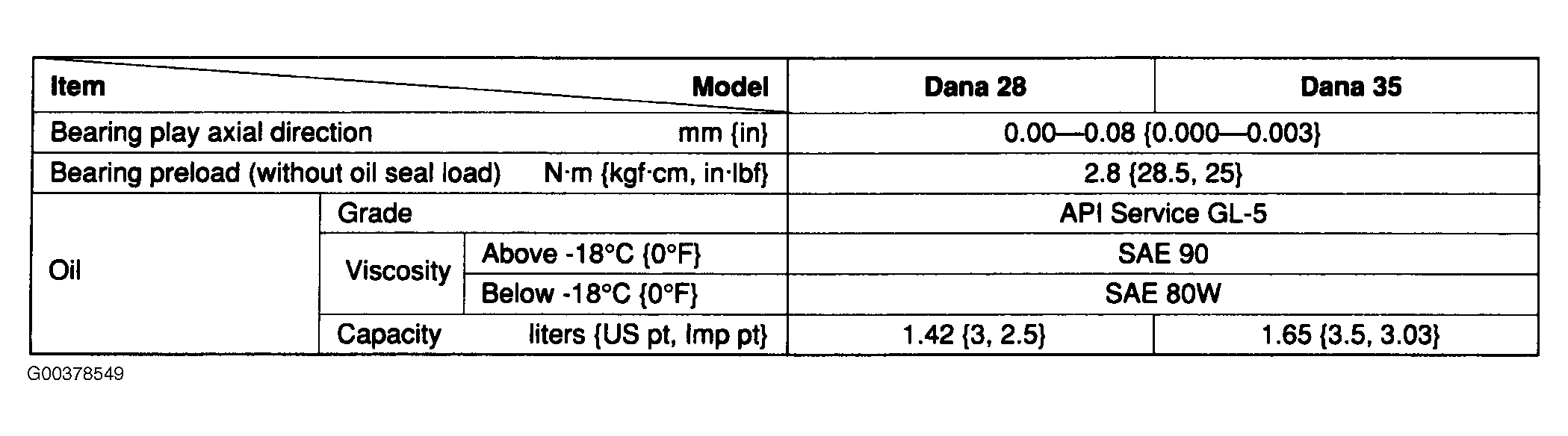

Fig 1: Front 4x4 Axle Specification
G00378549Courtesy of MAZDA MOTORS CORP.
