H-2
>>
Terminals 2A-2T
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Terminals 2A-2T

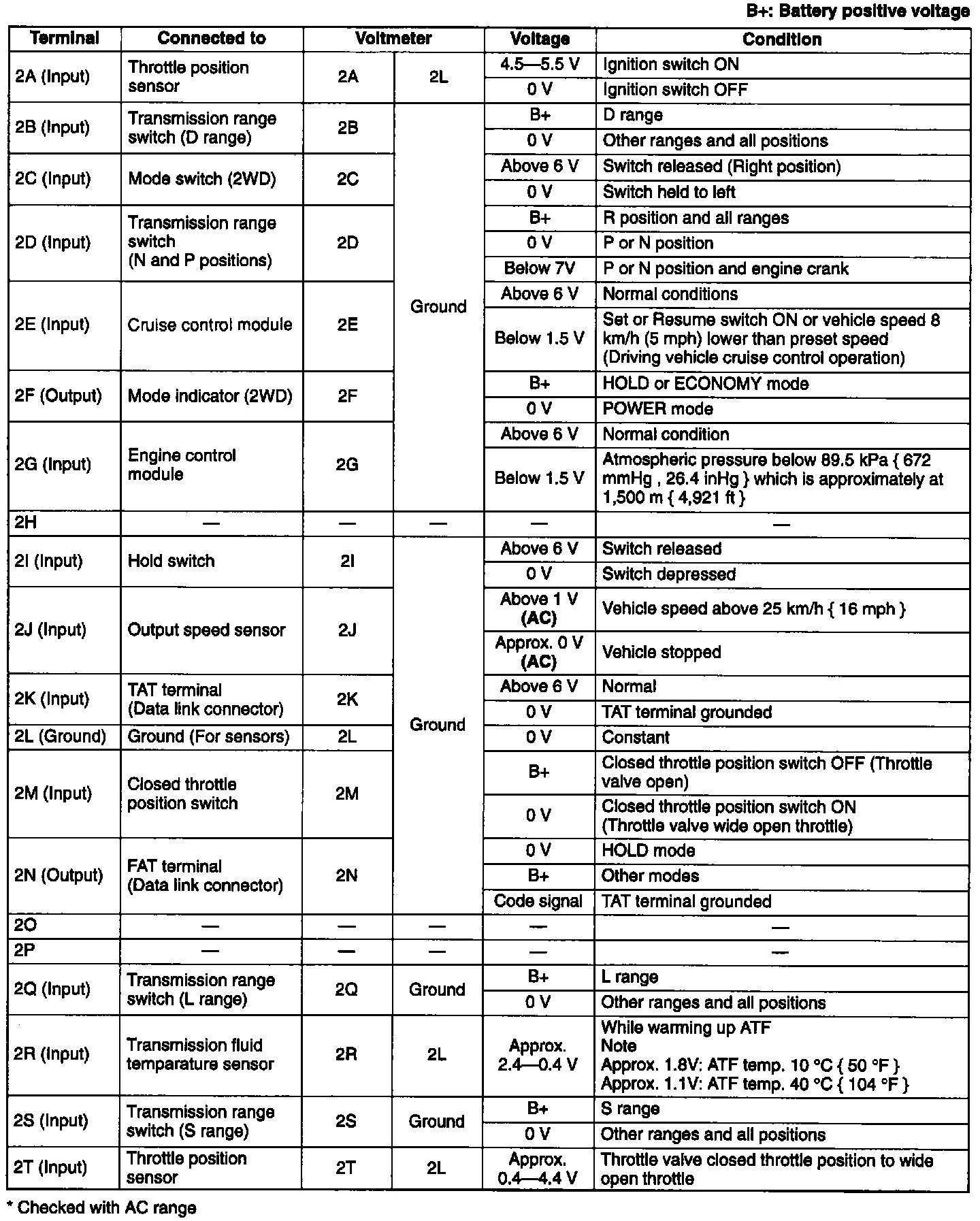

Terminal Voltage Chart:
