Hold Indicator Light Flashes/ Code 06 (K002/96 REV.)

Publication date: 1996-09-20
Reference number: K002/96 REV.
Supersedes refnos: CAT. K, NO. 002/96

HOLD INDICATOR LIGHT FLASHES/ CODE 06

TECHNICAL SERVICE BULLETIN

Reference Number(s): CAT. K, NO. 002/96, CAT. K, NO. 002/96 REV., Date of Issue: September 20, 1996

HOLD INDICATOR LIGHT FLASHES/CODE 06

Model(s): 1994-95 Mazda MPV

Category: K - Automatic Transmission

Bulletin No.: 002/96

Date: June 12, 1996

Revised: September 20, 1996

APPLICABLE MODELS

1994-95 MPV with a VIN of JM3LV52** R0605769 through JM3LV52** S0799999

DESCRIPTION

The "HOLD" indicator light may flash and Diagnostic Trouble Code (DTC) 06 may be retrieved on vehicles with resin molded type output speed sensors (revolution sensor). This concern is caused by cracks due to thermal expansion. To prevent thermal cracks, the sensor cover is now stainless steel.

Customers complaining of this concern, should have the vehicle inspected and if necessary, the speed sensor replaced with a modified part. See Fig 1 .

NOTE: Vehicles with a VIN of JM3LV52** R0605768 or lower have a stainless steel cover.

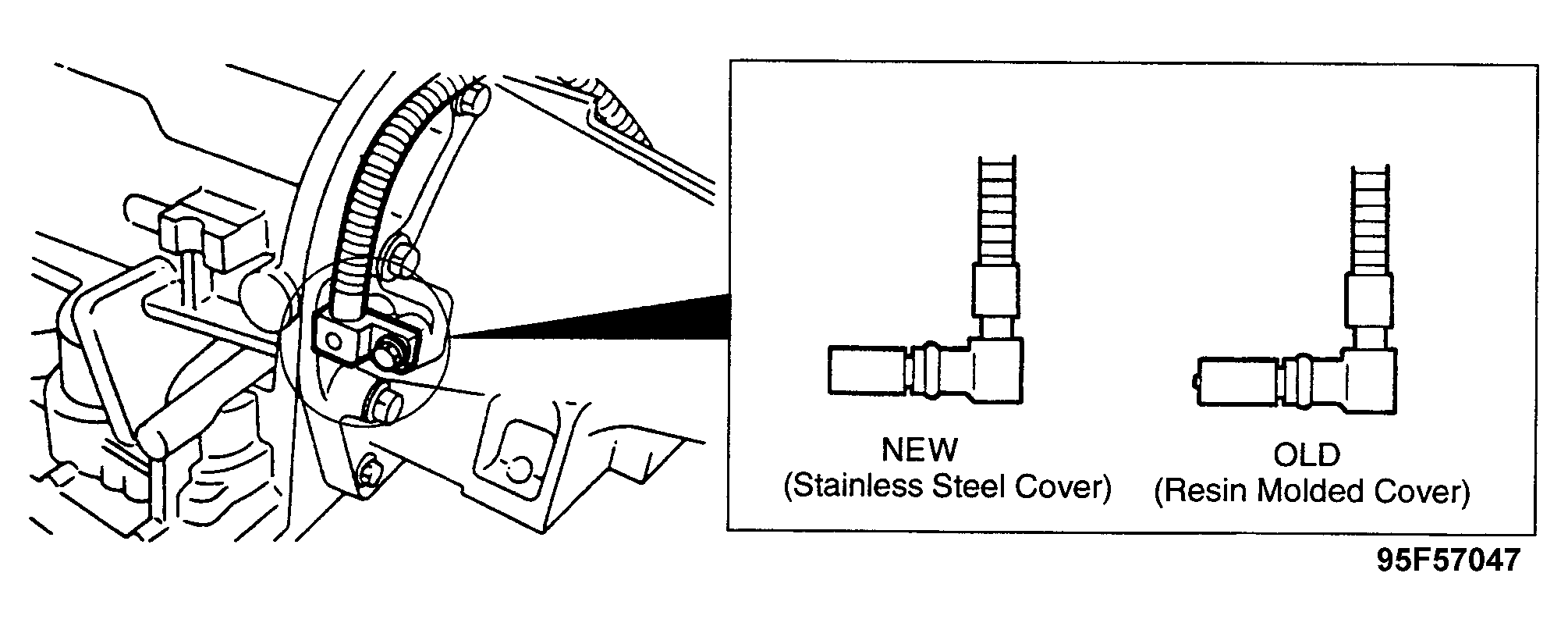

Fig 1: Location of Speed Sensor

PARTS INFORMATION

Fig 2: PARTS INFORMATION TABLE

WARRANTY INFORMATION

(Applies To Verified Customer Complaints On Vehicles Currently Under Warranty. Refer To The SRT Microfiche For Warranty Terms).

Warranty Type: A

Symptom Code: 62

Damage Code: 9R

Part Number Main Cause: BV72-21-5H2 or BV74-21-5H2

Operation Number: K0411XRX

Labor Hours: 0.3Hrs.
