Engine Controls - Tests W/Codes - 2.0L M/T
>>
Trouble Code Identification Charts
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Trouble Code Identification Charts: Notes

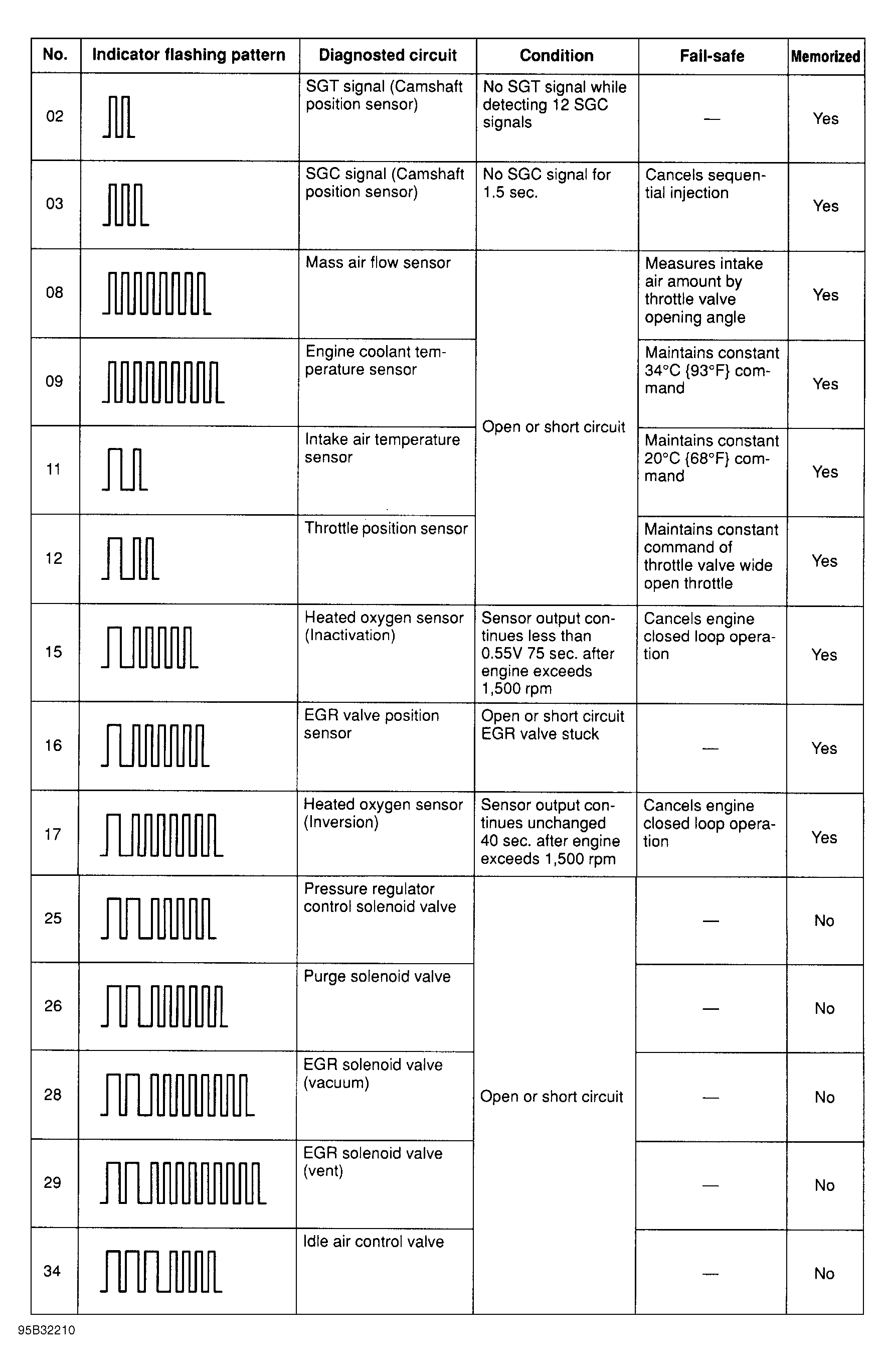

Fig 1: Diagnostic Trouble Code Definition Chart
Courtesy of MAZDA MOTORS CORP.
