Code P1113: Intake Air Temperature Sensor - LYSHOLM Compressor

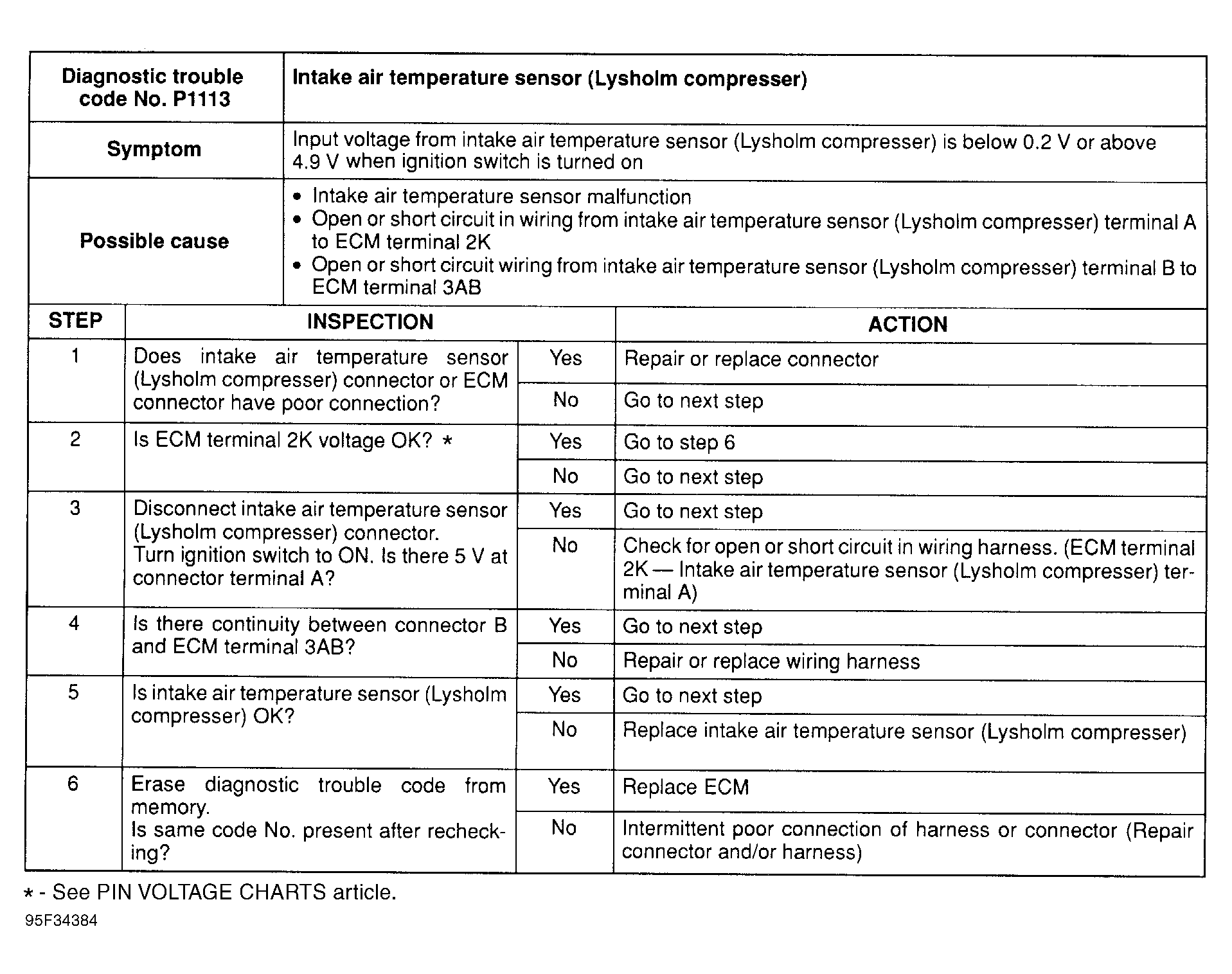

Fig 1: Trouble Code No. P1113 Intake Air Temperature Sensor - Lysholm Compressor
