Code P1170: Front Heated Oxygen Sensor - Inversion

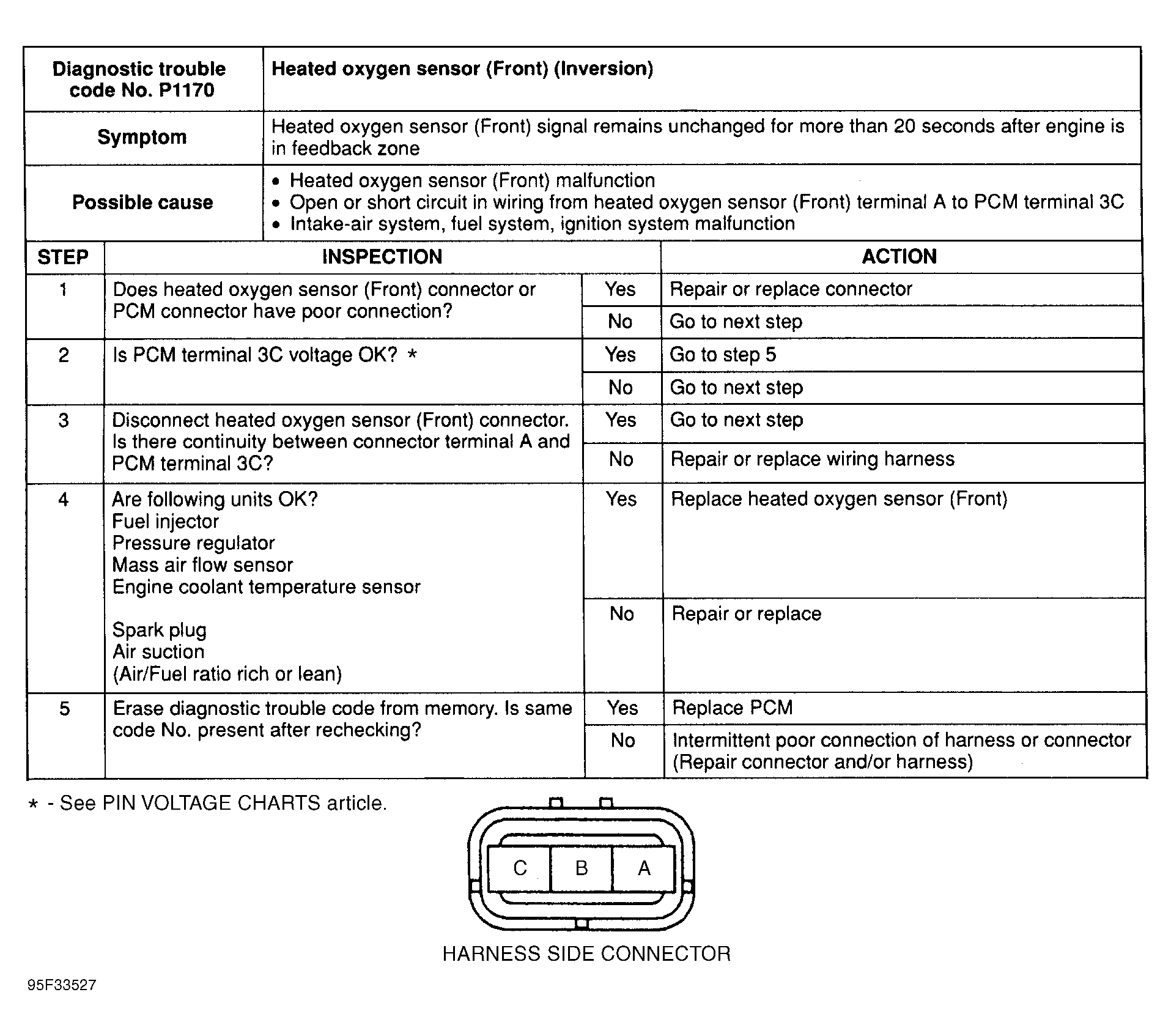

Fig 1: Trouble Code No. P1170 Front Heated Oxygen Sensor - Inversion
