Control System Components

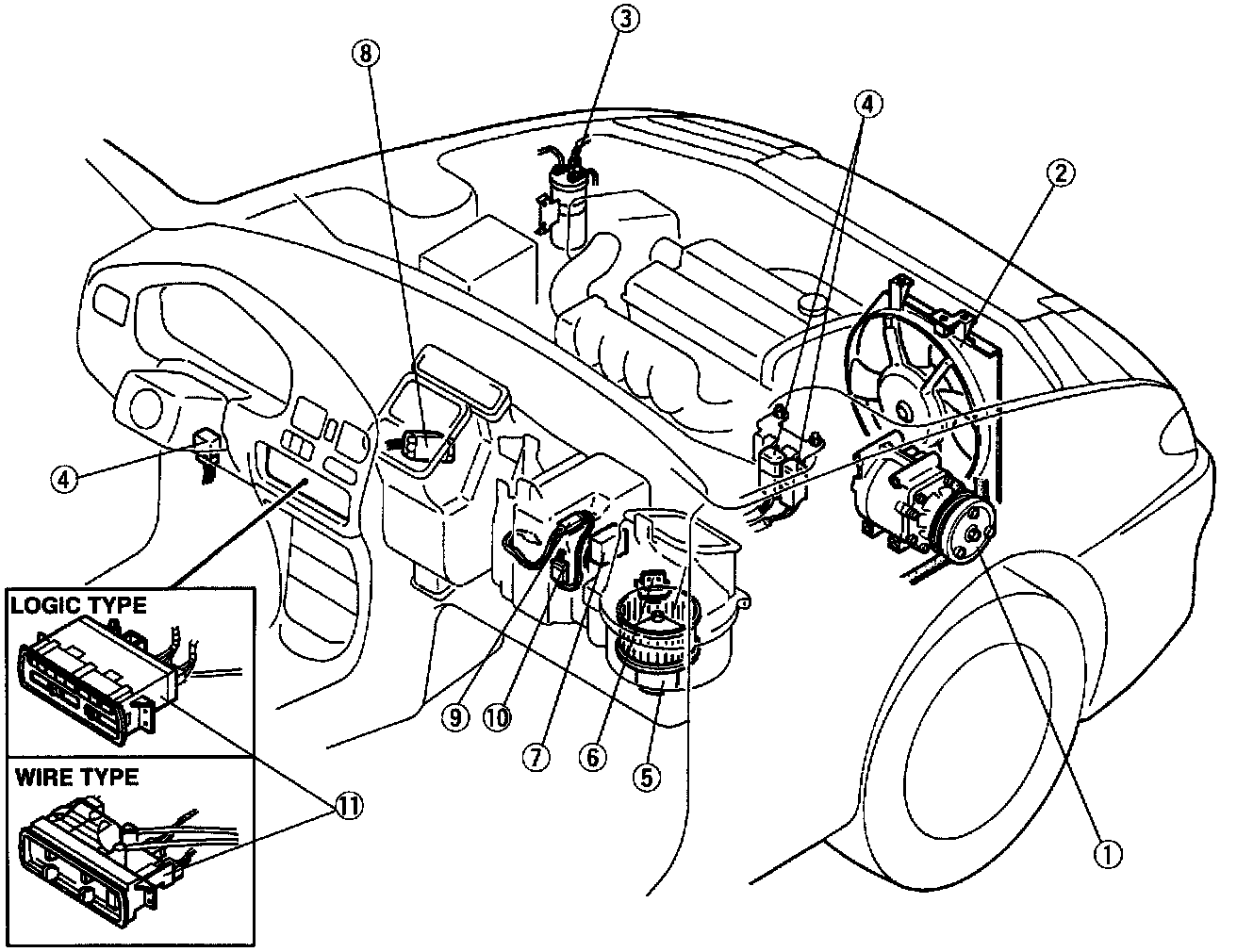

CONTROL SYSTEM STRUCTURAL VIEW




(1) Magnetic Clutch
(2) Condenser Fan
(3) Refrigerant Pressure Switch
(4) Relay
(5) Blower Motor
(6) Resistor
(7) Air Intake Actuator
(8) Airflow Mode Actuator
(9) Thermoswitch
(10) A/C Amplifier
(11) Heater Control Unit
