Code 32: Secondary Air Switching Valve

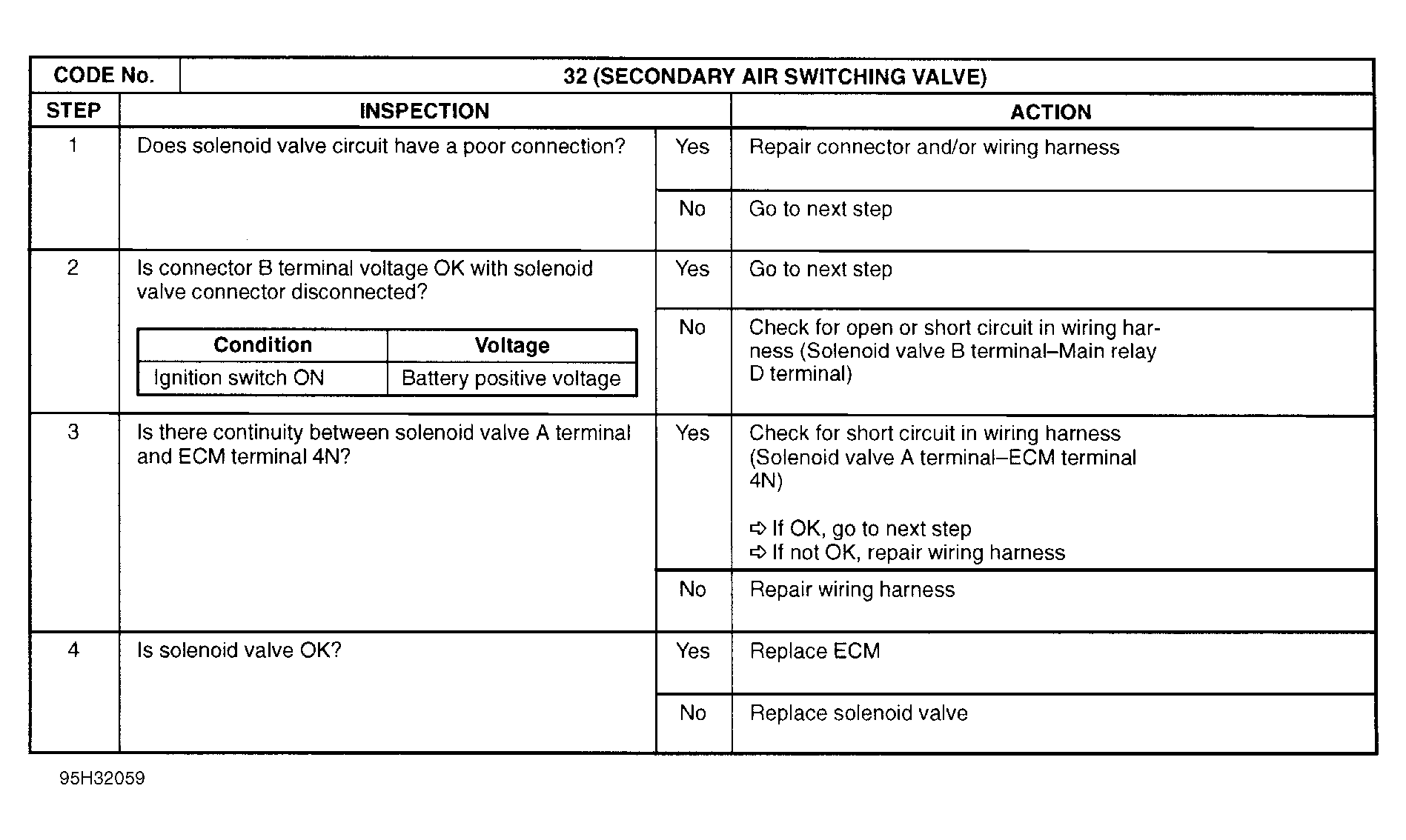

Fig 1: Trouble Code No. 32 Secondary Air Switching Valve
G95H32059

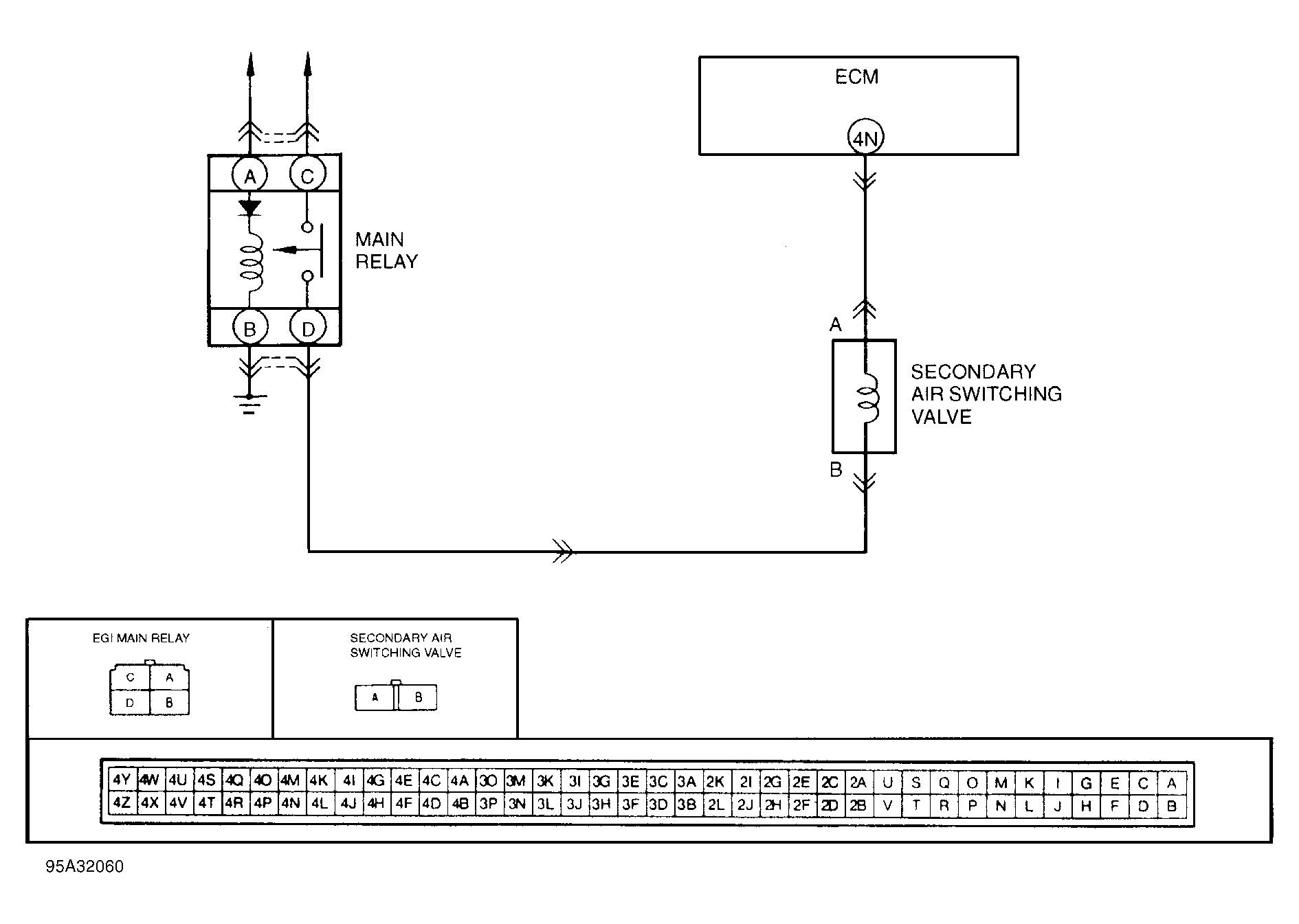

Fig 2: Trouble Code No. 32 Secondary Air Switching Valve Circuit Diagram
G95A32060
