Code 38: Accelerated Warm-Up System Solenoid Valve

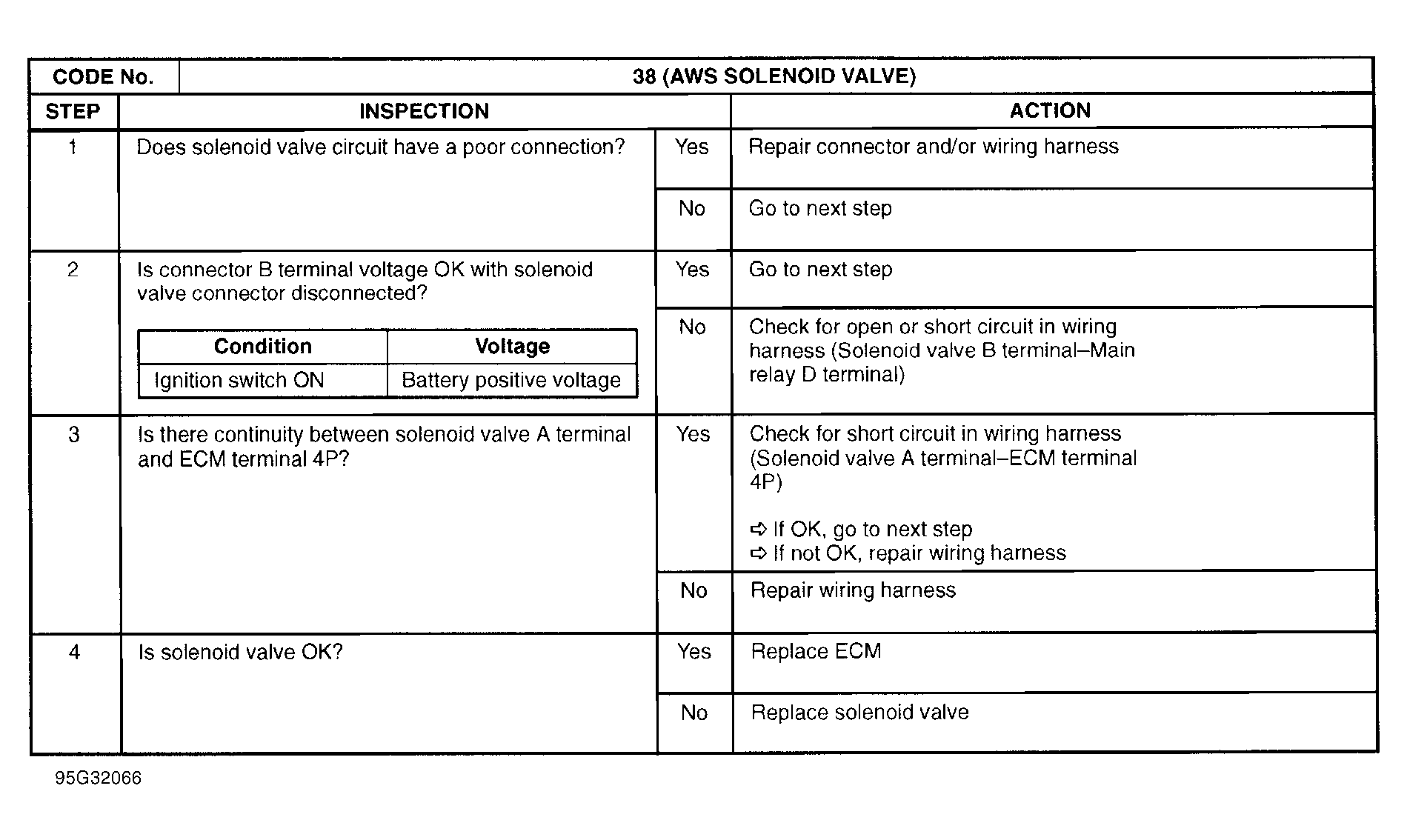

Fig 1: Trouble Code No. 38 Accelerated Warm-Up System Solenoid Valve

G95G32066

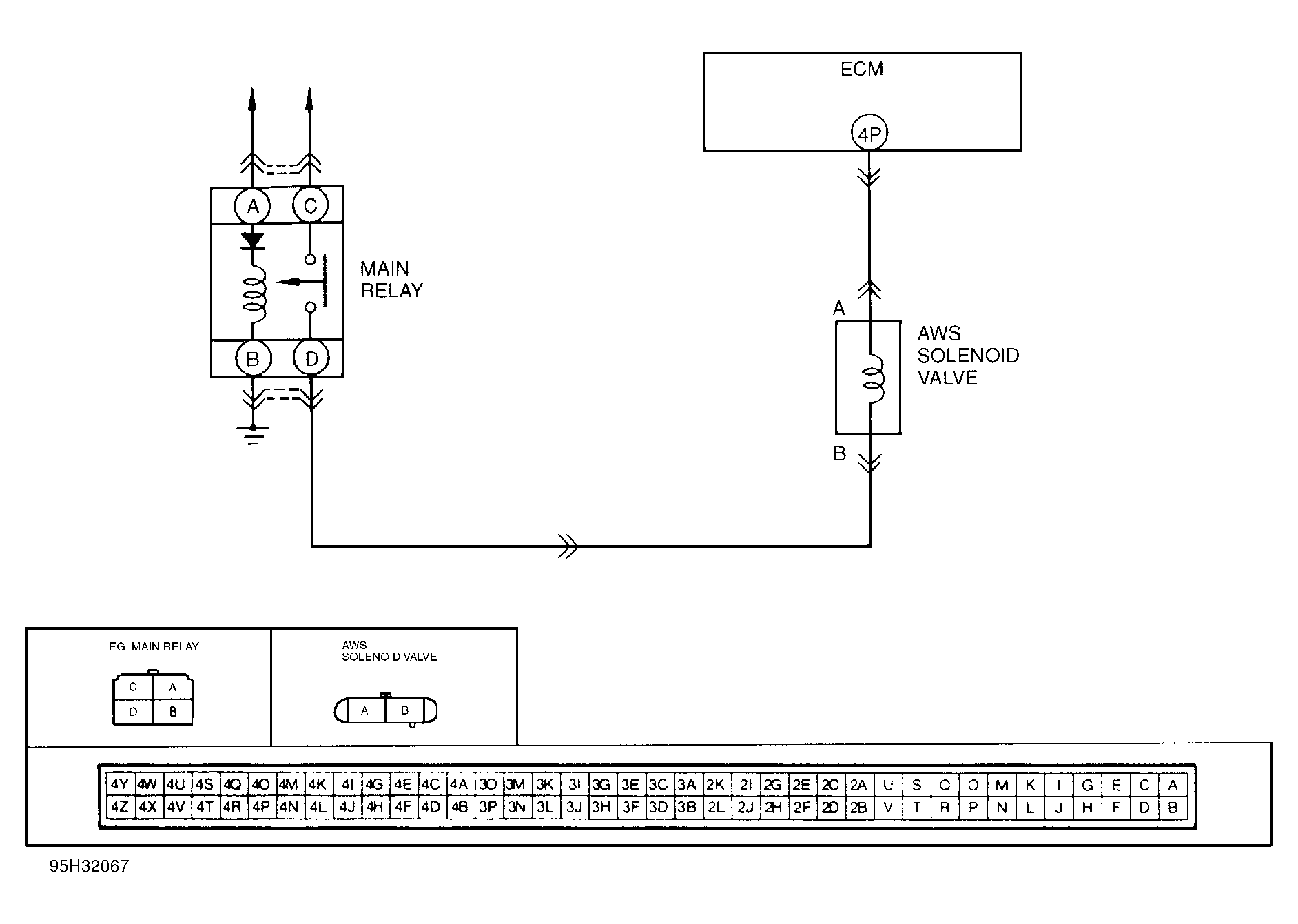

Fig 2: Trouble Code No. 38 AWS Solenoid Valve Circuit Diagram

G95H32067
