ECM/PCM Connector End Views

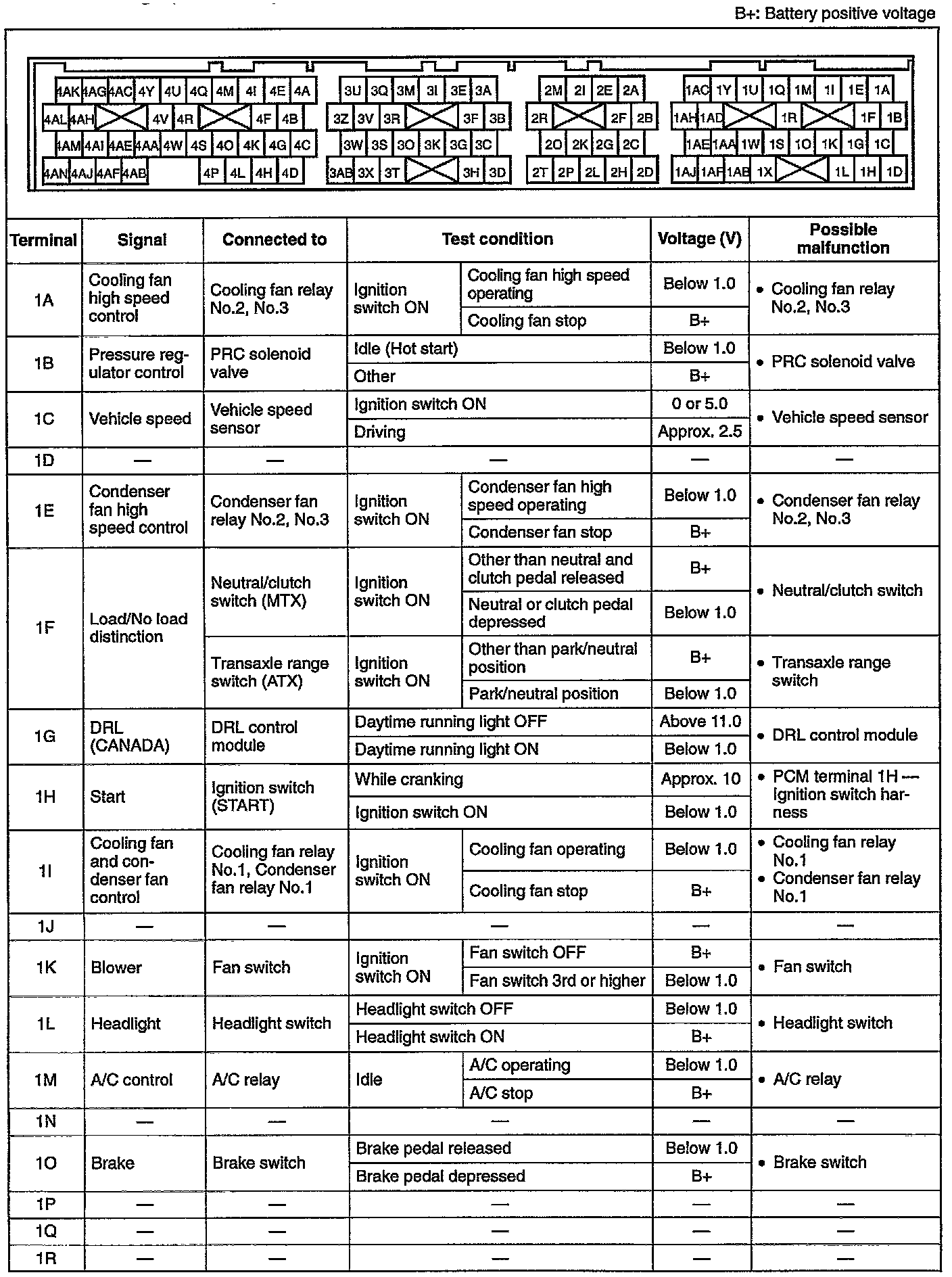

PCM TERMINAL VOLTAGE (REFERENCE) Part 1 of 7:

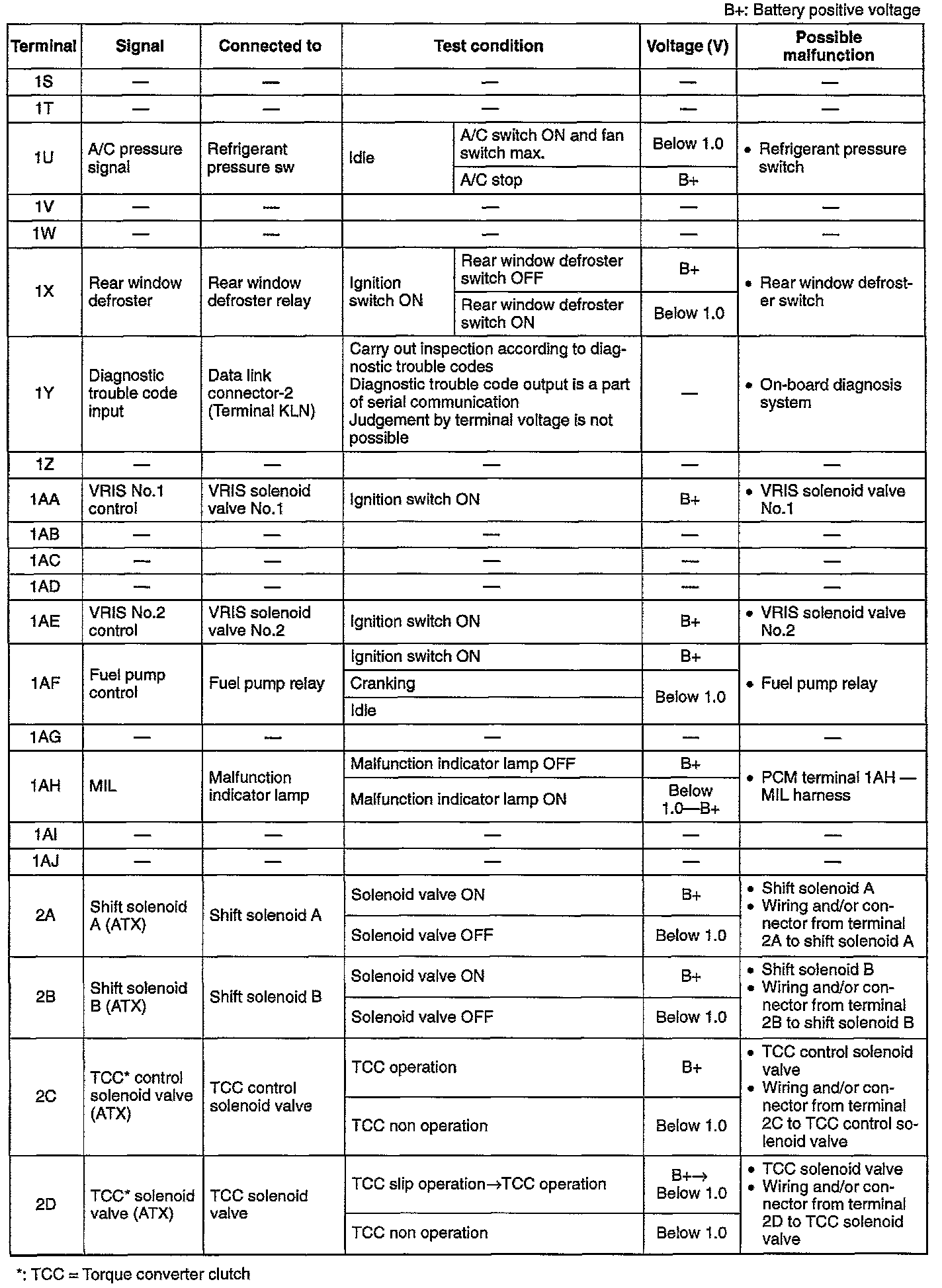

PCM TERMINAL VOLTAGE (REFERENCE) Part 2 of 7:

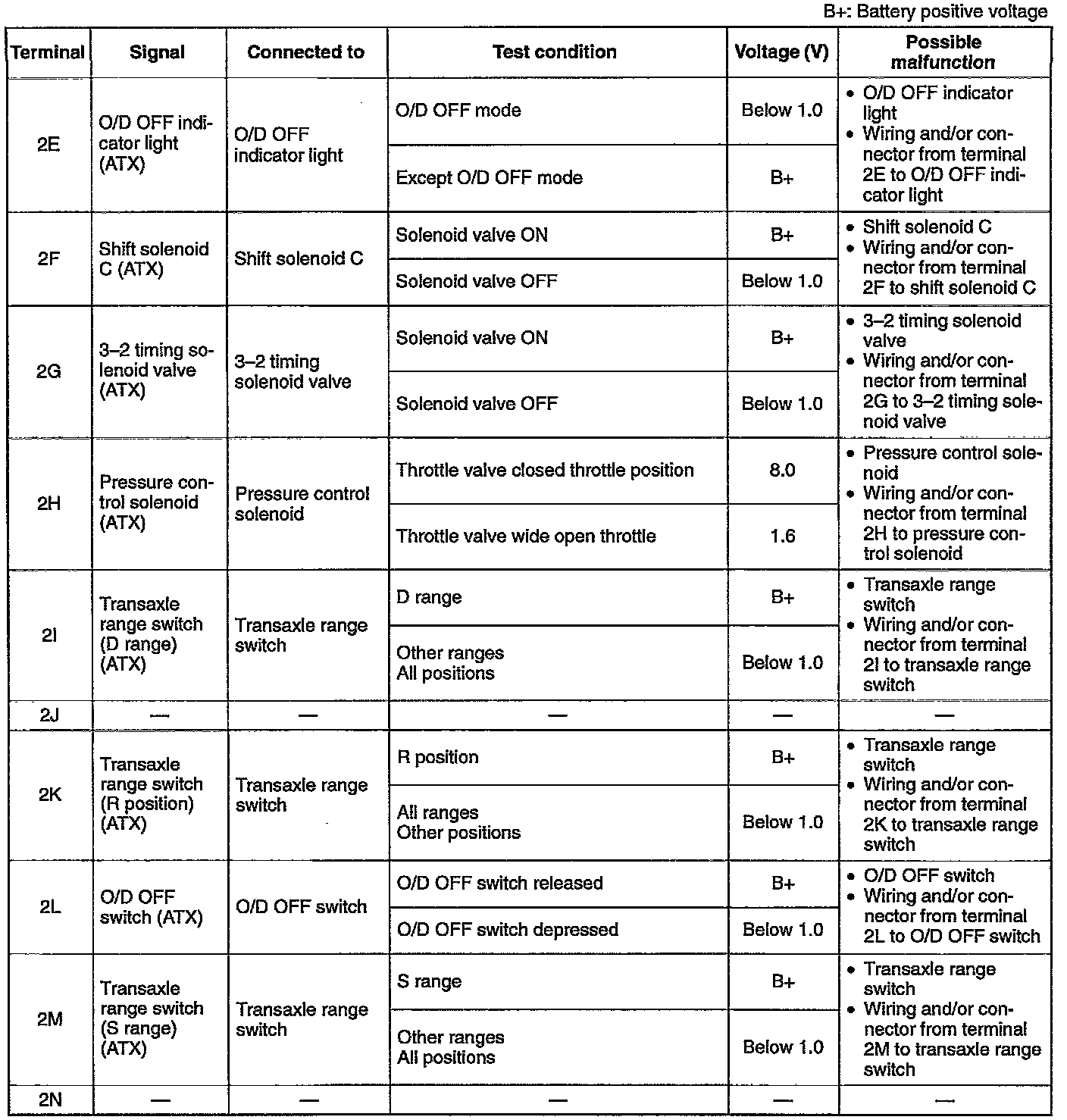

PCM TERMINAL VOLTAGE (REFERENCE) Part 3 of 7:

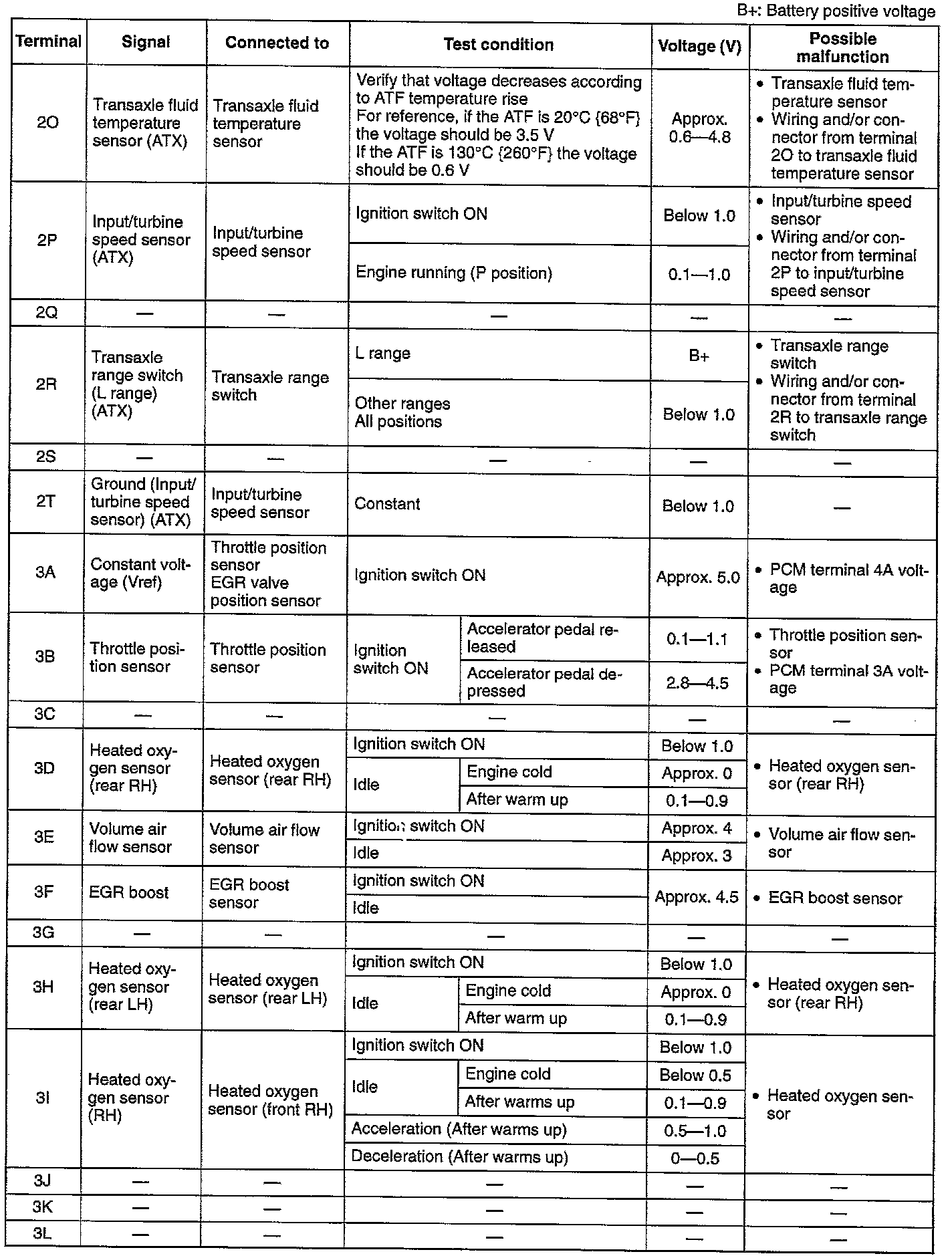

PCM TERMINAL VOLTAGE (REFERENCE) Part 4 of 7:

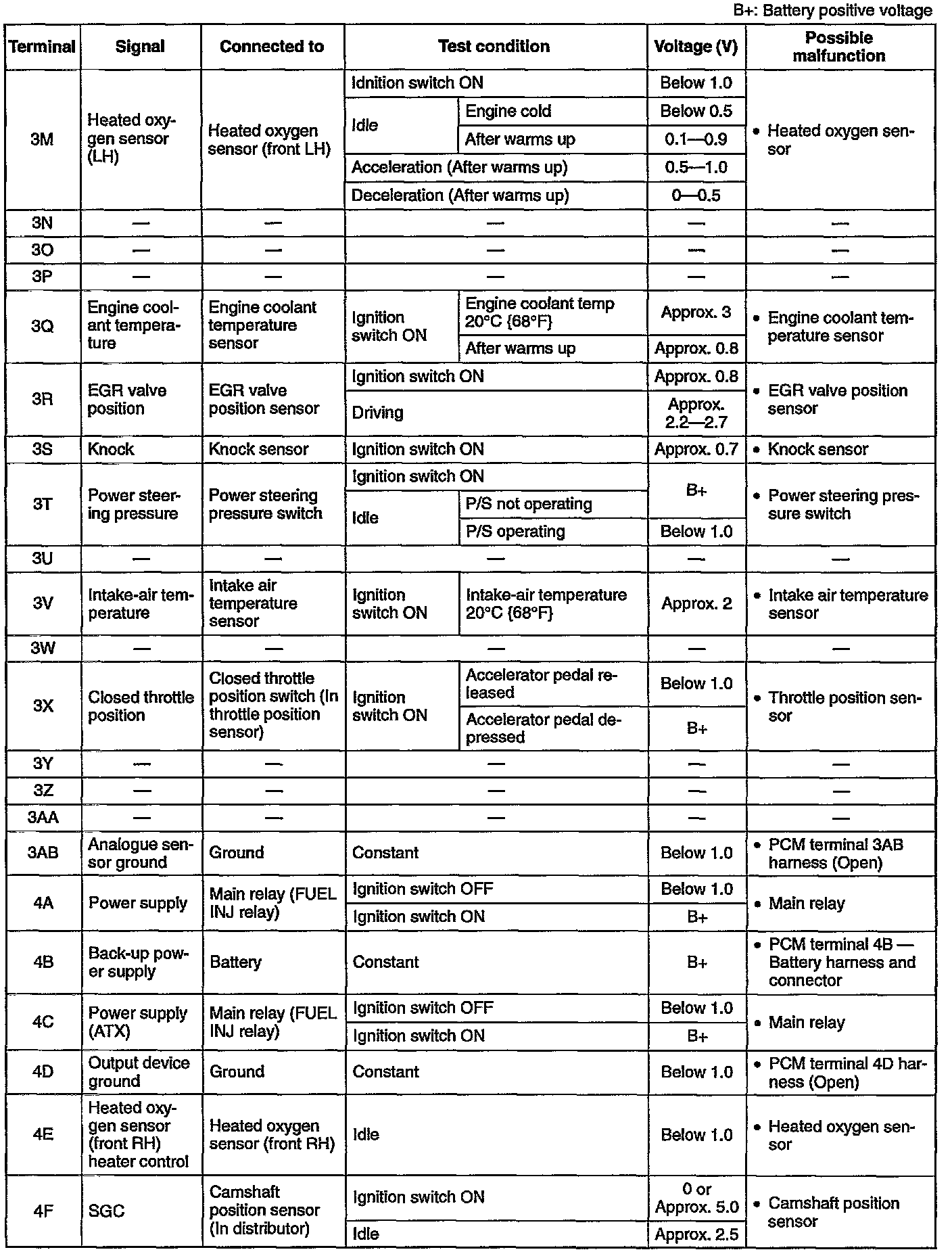

PCM TERMINAL VOLTAGE (REFERENCE) Part 5 of 7:

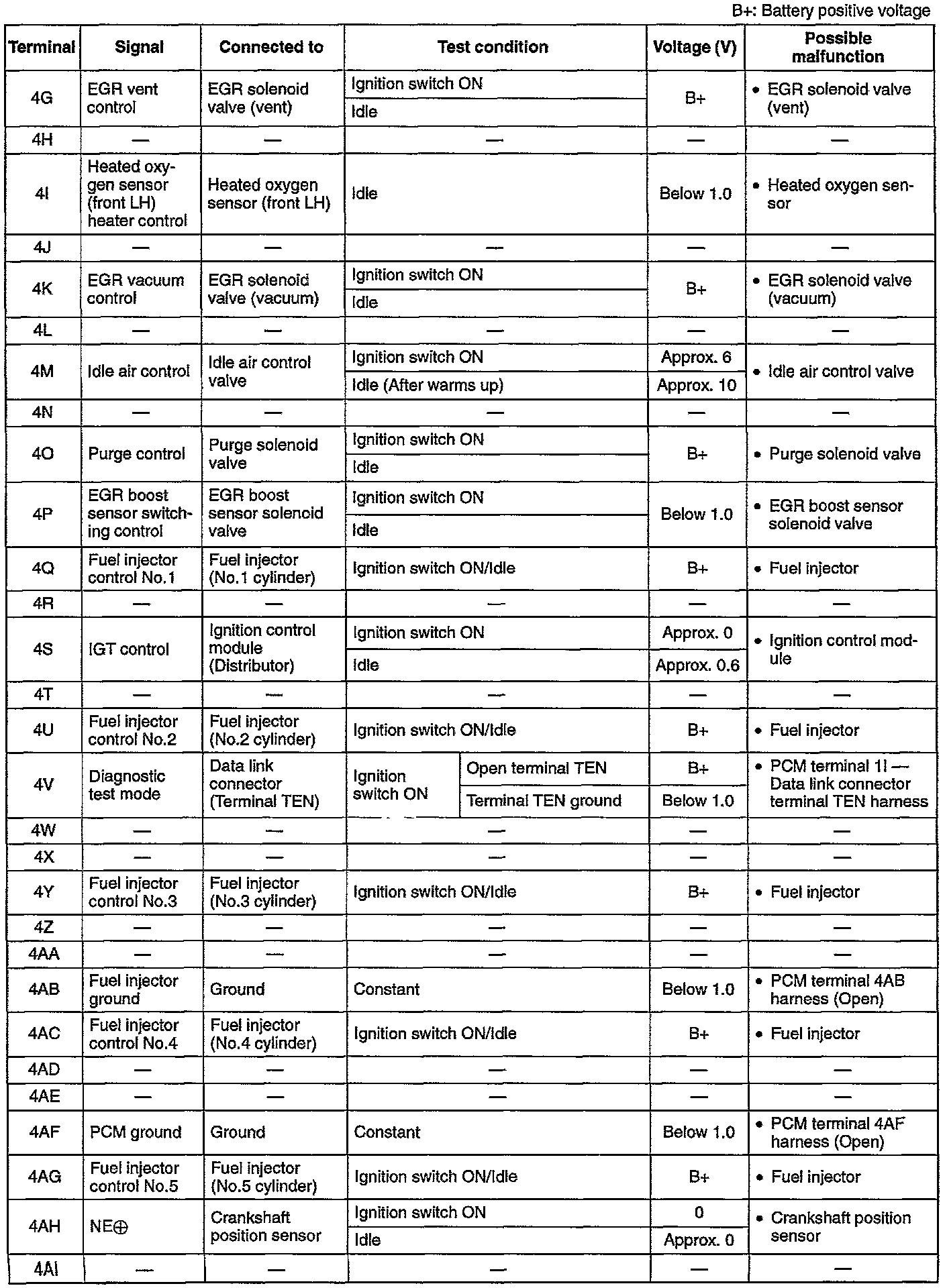

PCM TERMINAL VOLTAGE (REFERENCE) Part 6 of 7:






PCM TERMINAL VOLTAGE (REFERENCE) Part 7 of 7:
