Power Distribution Box Identification (1995-96): Notes

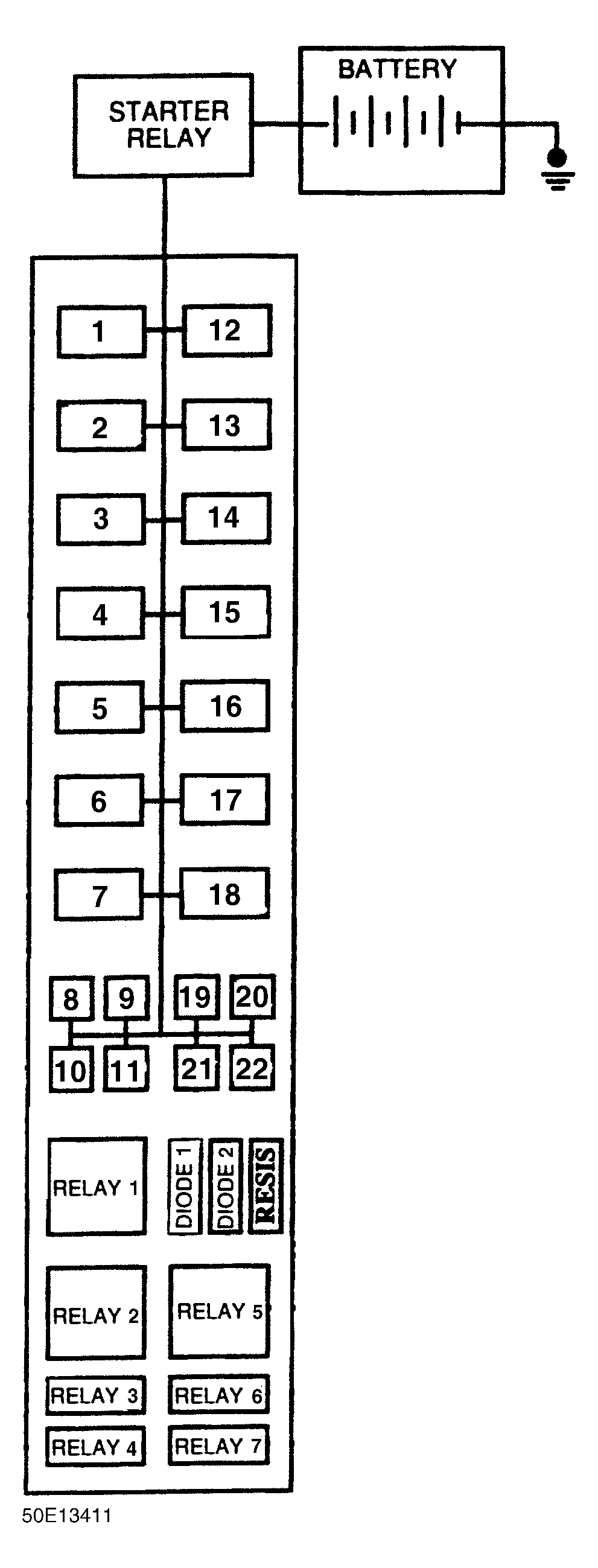

Fig 1: Power Distribution Box Identification (1995-96)
G50E13411Courtesy of MAZDA MOTOR OF AMERICA, INC.
WARNING: Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.
