Disc Pad (Rear) Replacement

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated in the table.

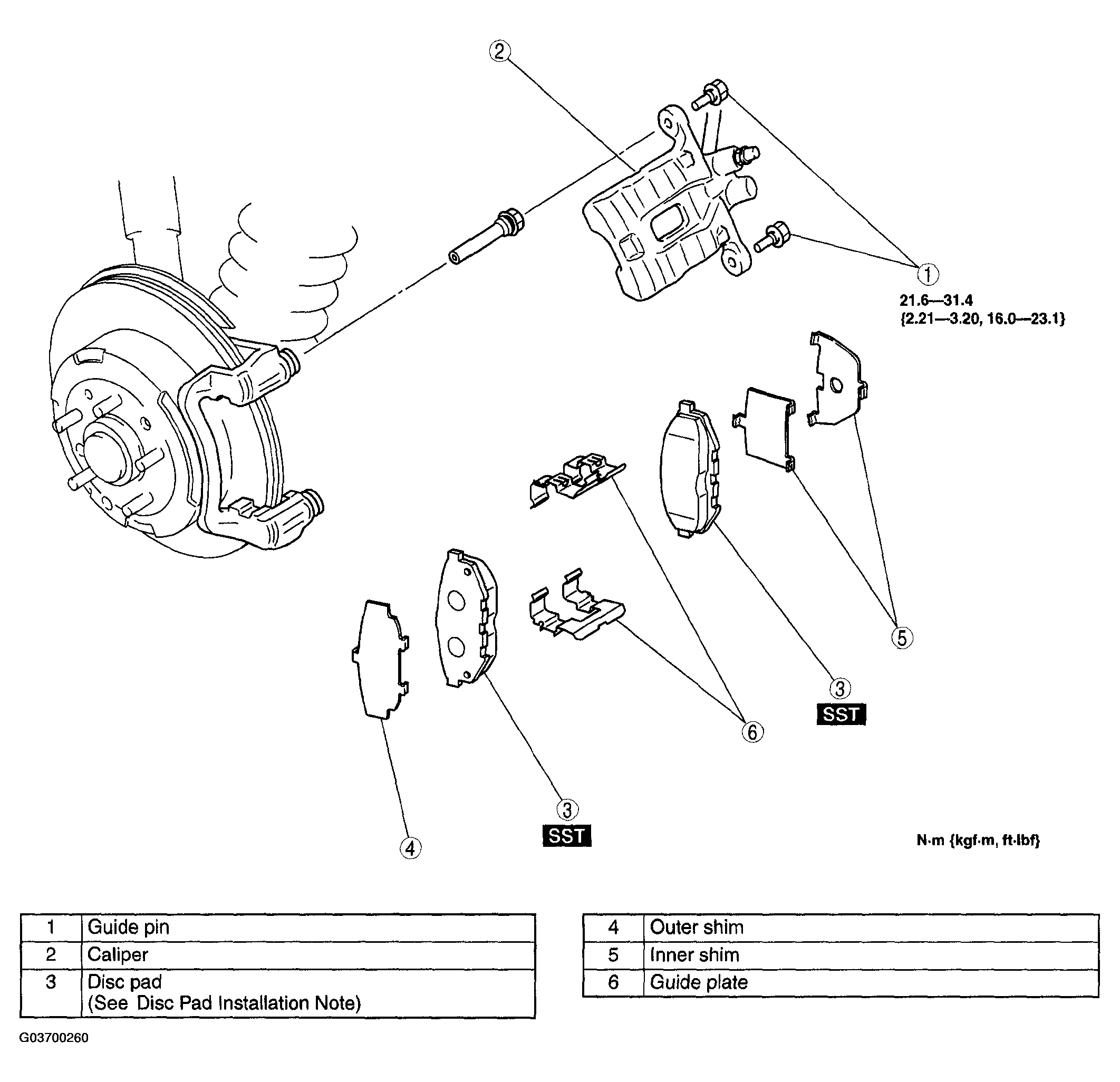

    Fig 1: Removing Disc Pad (Rear) - With Torque Specifications
    G03700260Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
