Steering Column: Reassembly

To reassemble, reverse disassembly procedure. Grease steering shaft, bushings and bearings. Use NEW shear screws.

STEERING SHAFT DIMENSIONS (1)

Application Length - In. (mm)
MPV 24.09-24.21 (612.0-615.0)
(1) For measuring points, see Fig 1 .

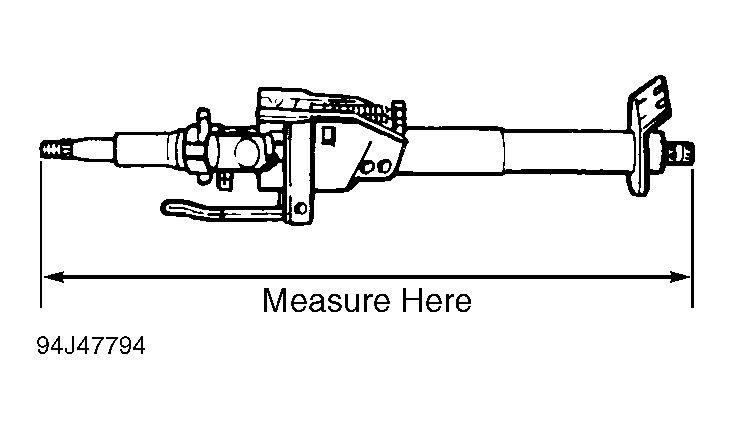

Fig 1: Measuring Steering Shaft Dimensions
G94J47794Courtesy of MAZDA MOTORS CORP.
