Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

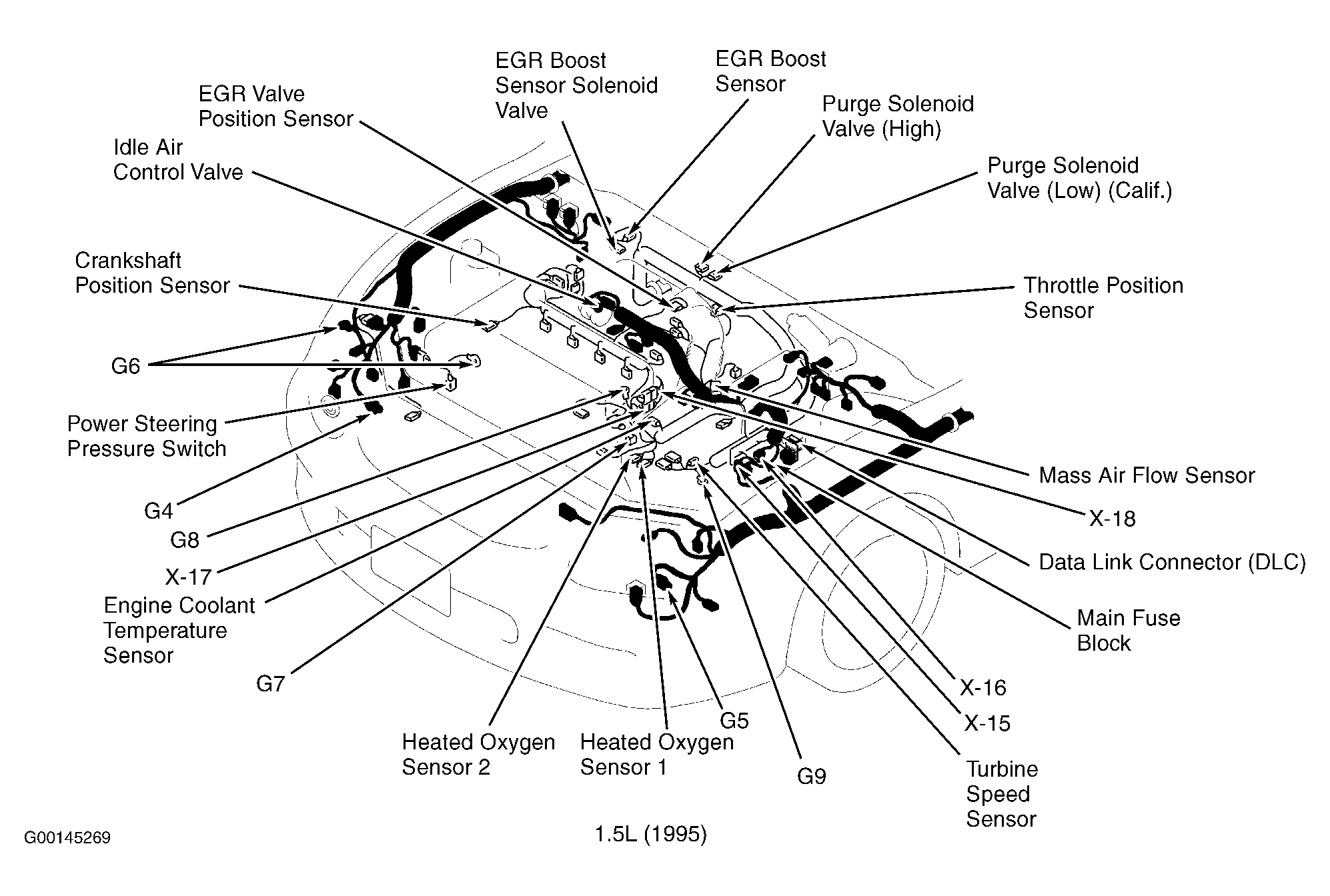

Fig 1: Engine Compartment (1.5L) (1995)

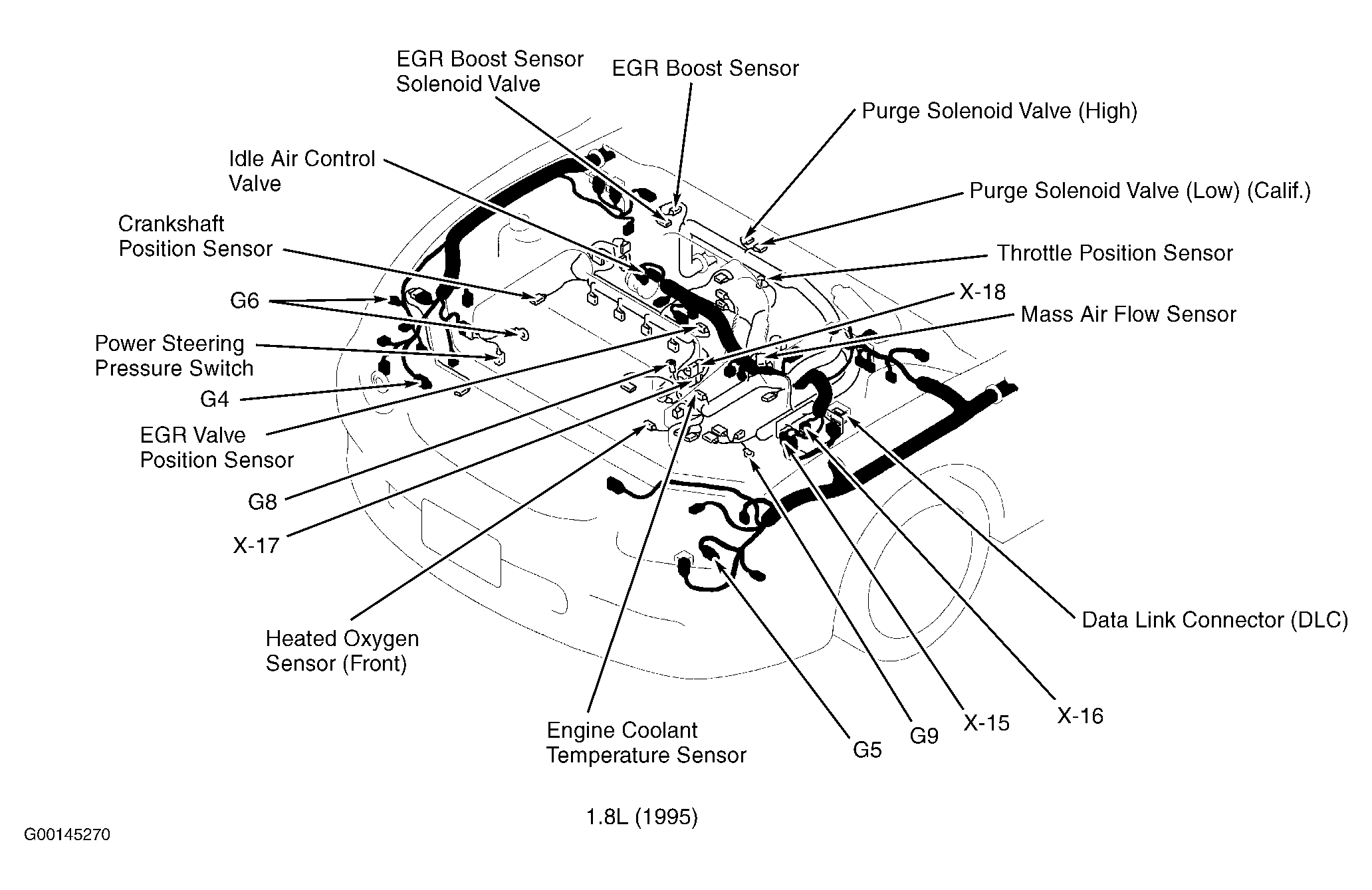

Fig 2: Engine Compartment (1.8L) (1995)

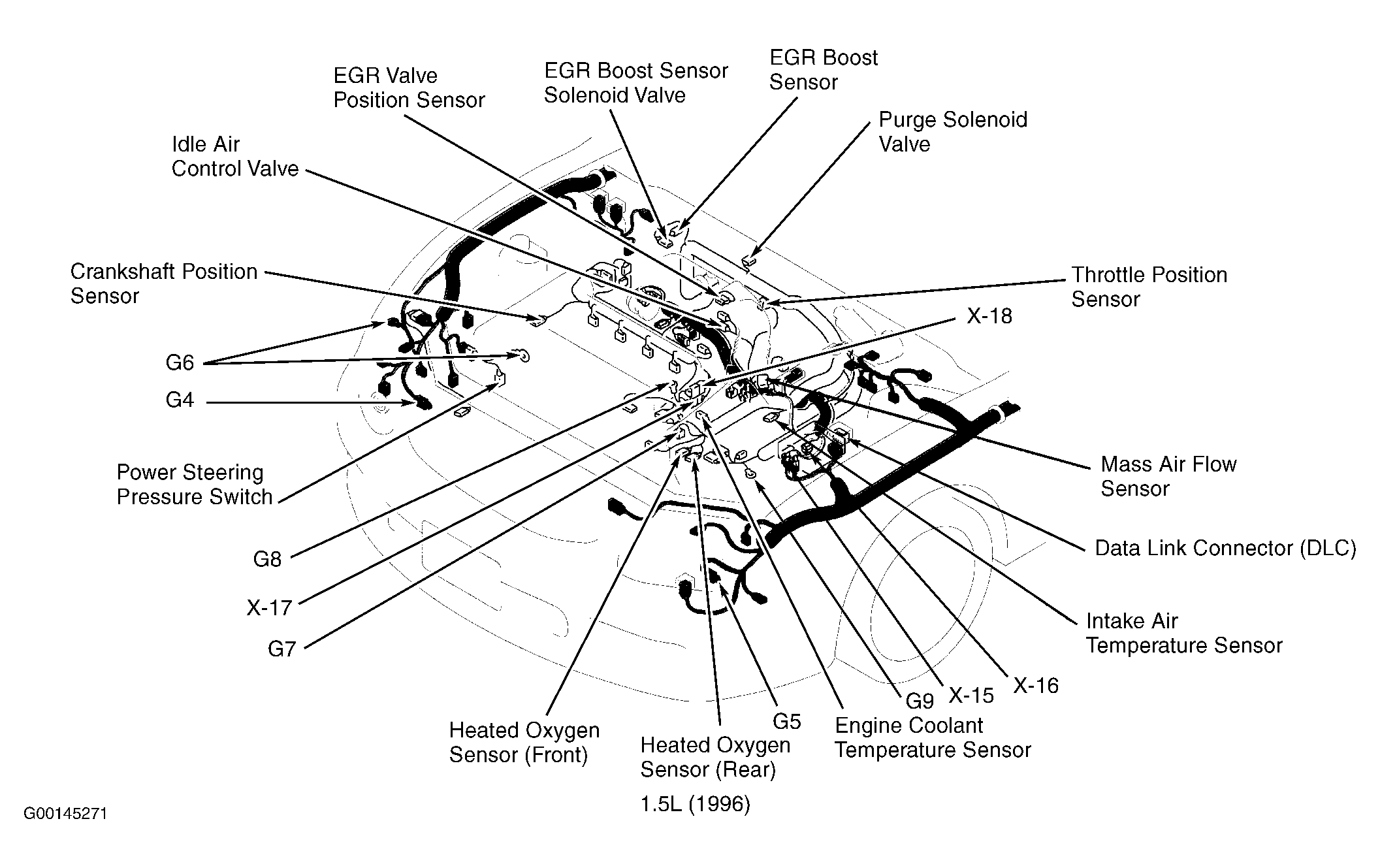

Fig 3: Engine Compartment (1.5L) (1996)

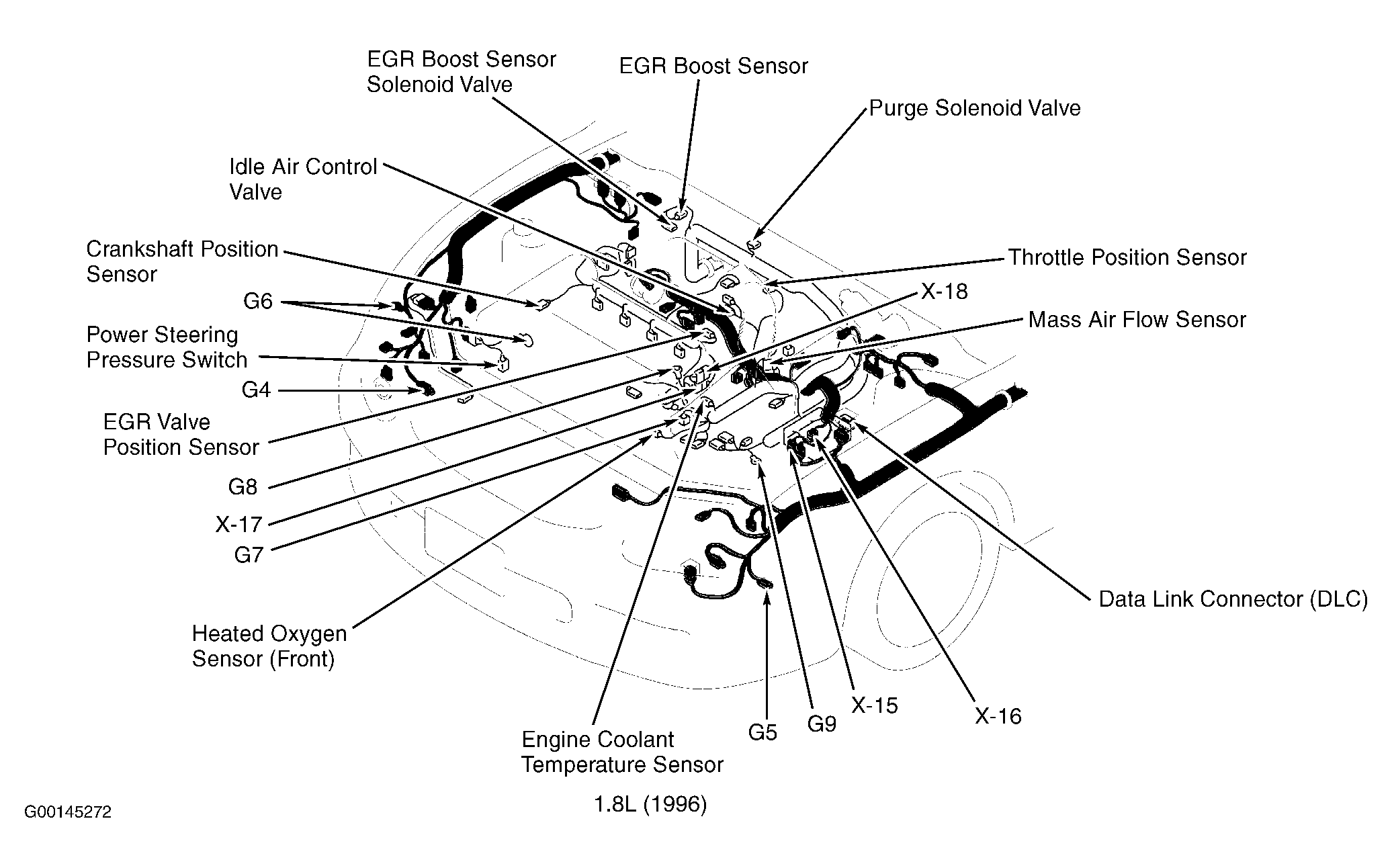

Fig 4: Engine Compartment (1.8L) (1996)

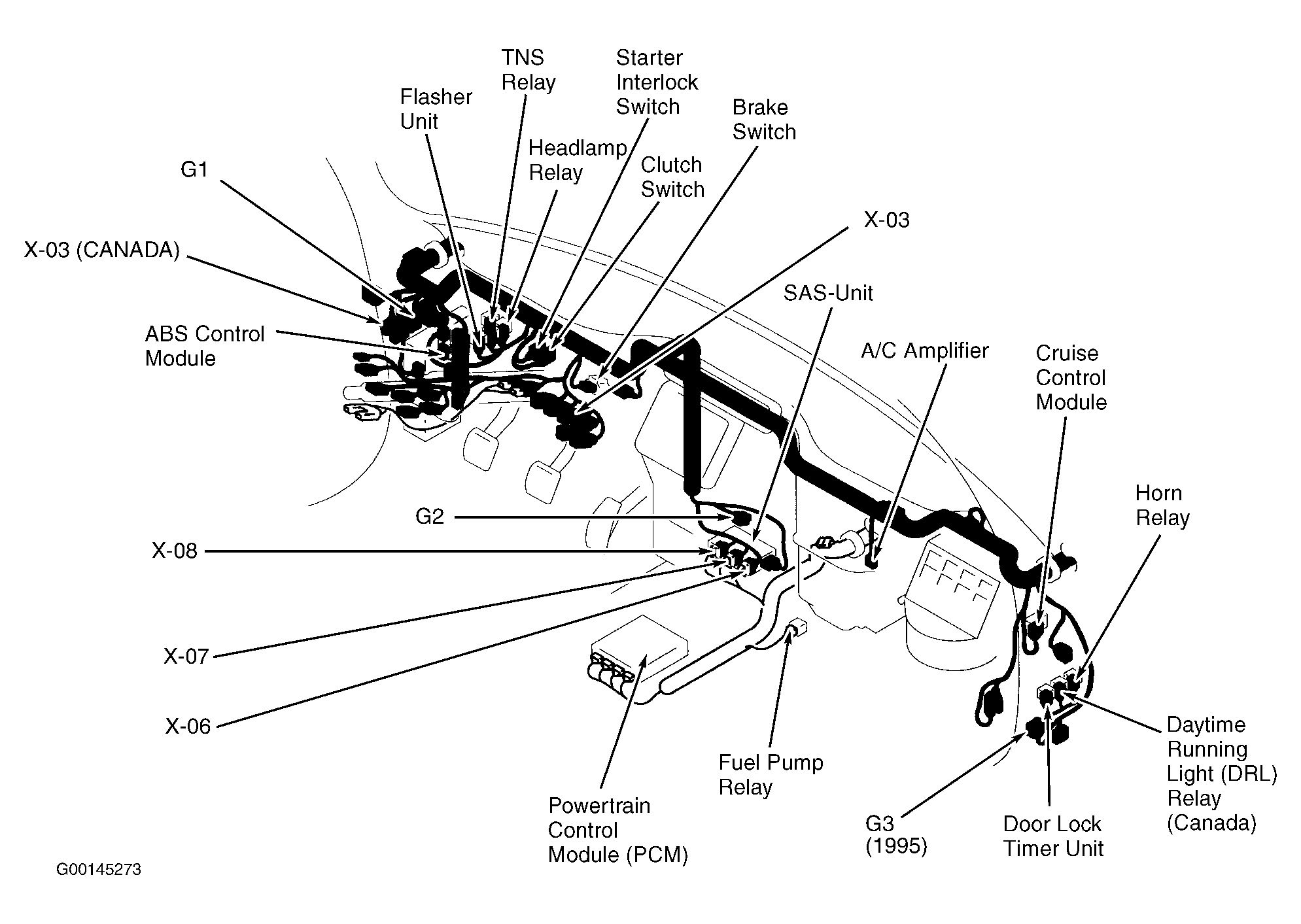

Fig 5: Dash
