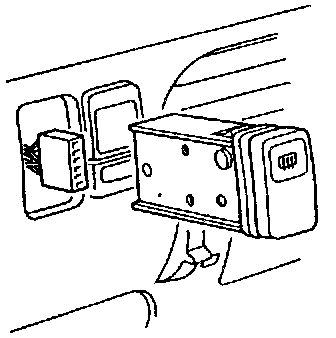

Rear Window Defroster Switch


Removal/Installation

1. Remove the switch panel.
2. Disconnect the rear window defroster switch connector.





3. Remove the rear window defroster switch.
4. Install in the reverse order of removal.
