Engine Control System, EC-AT Control System

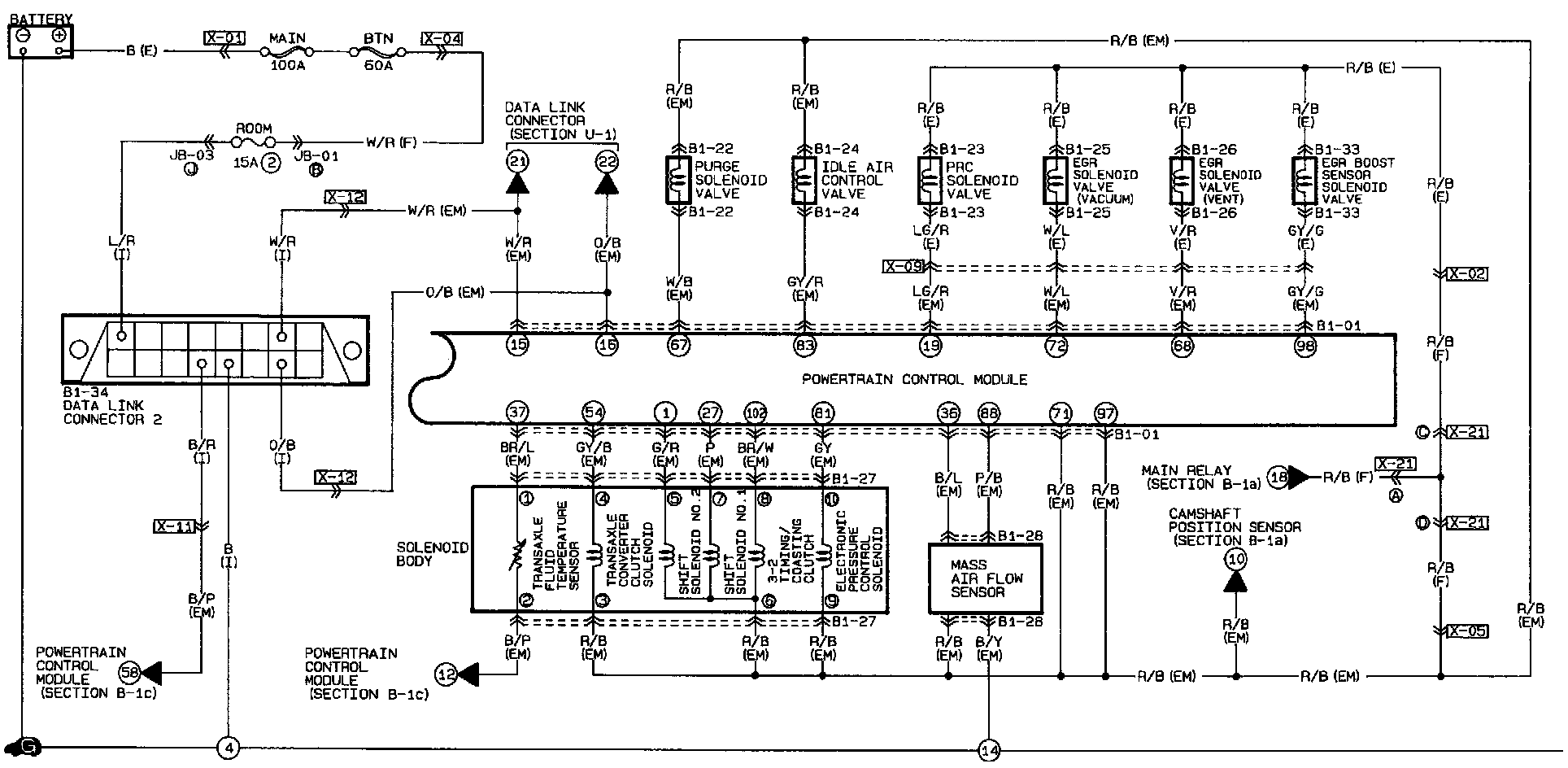

Engine Control System (ATX), EC-AT Control System (ATX):
