Electronic Brake Control Module: Service and Repair






REPLACEMENT
1. Disconnect the negative battery cable.

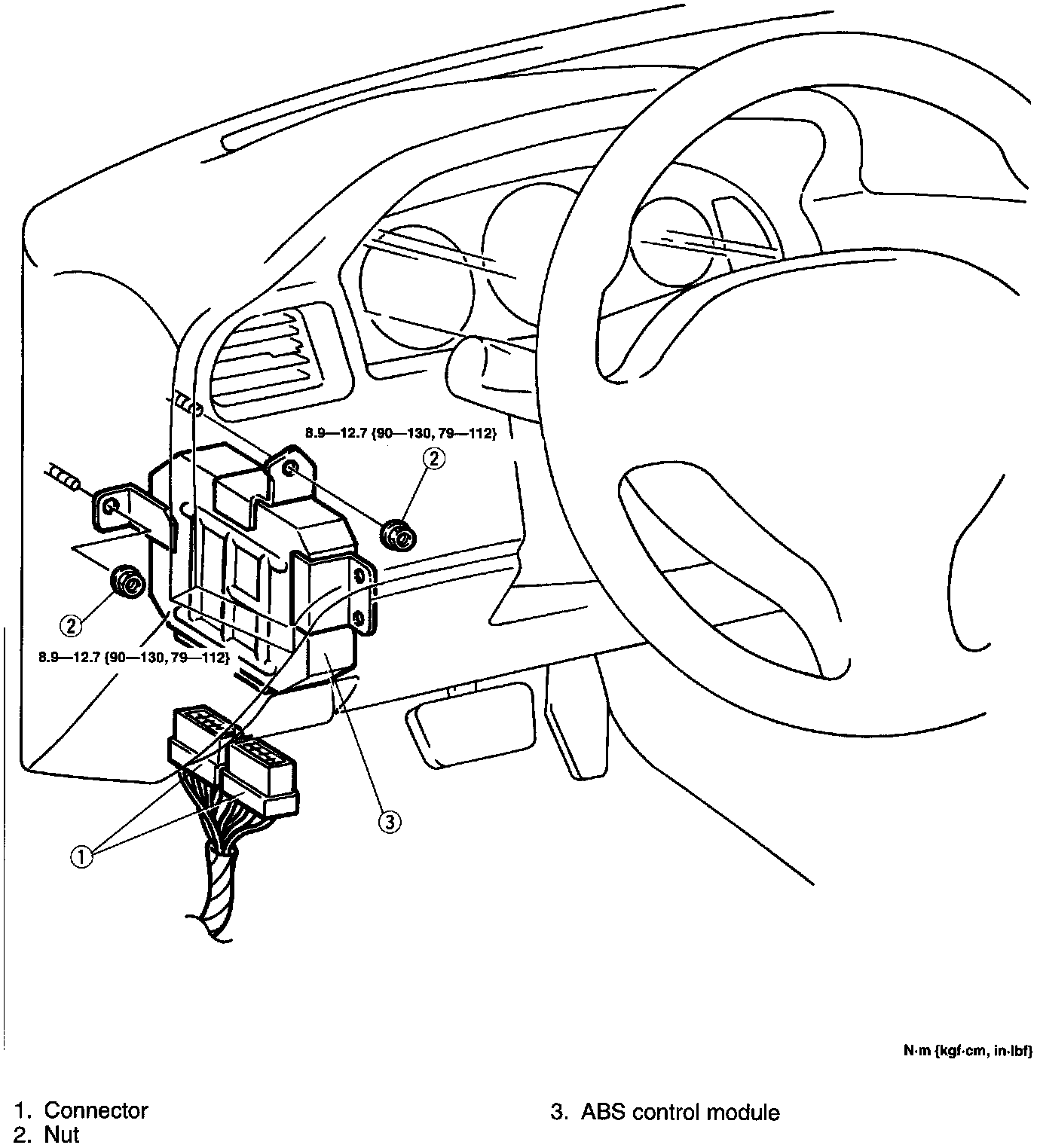

2. Remove in the order shown in the figure.
3. Install in the reverse order of removal.
4. Connect the negative battery cable and verify that the diagnostic trouble codes have been canceled. Testing and Inspection
