System Diagram

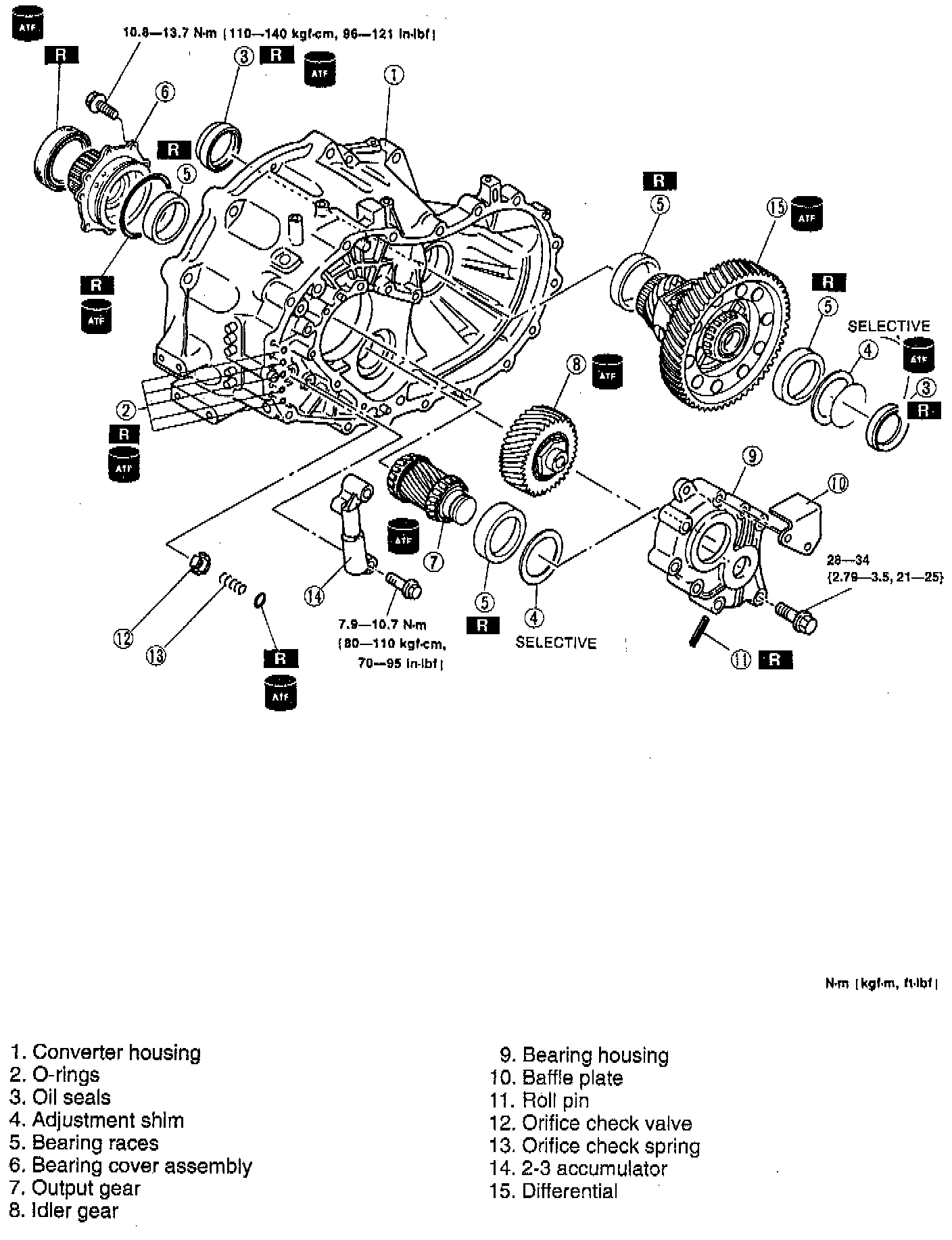

Differential, Output Gear, Idler Gear And Converter Housing:

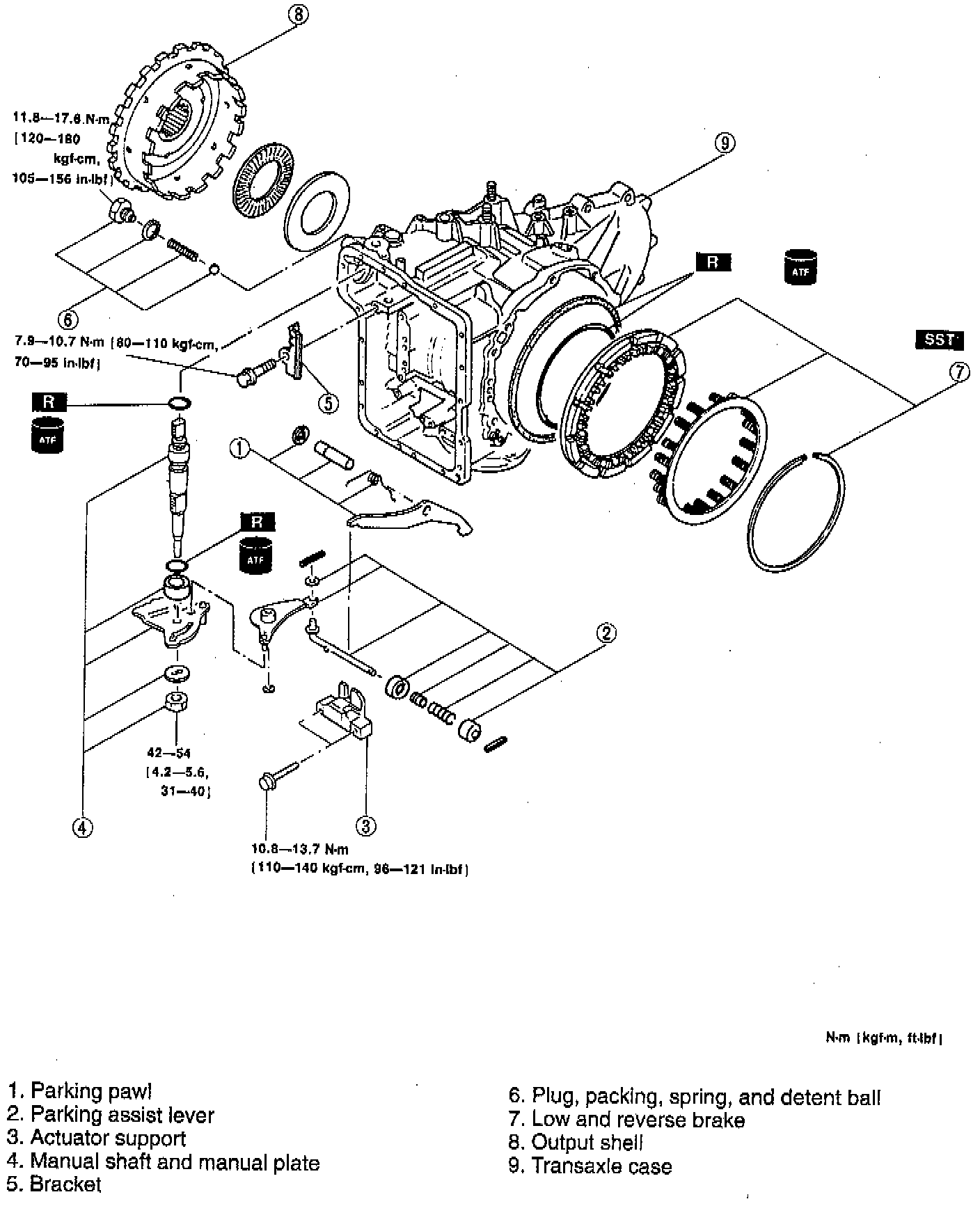

Low And Reverse Brake And Parking Mechanism:

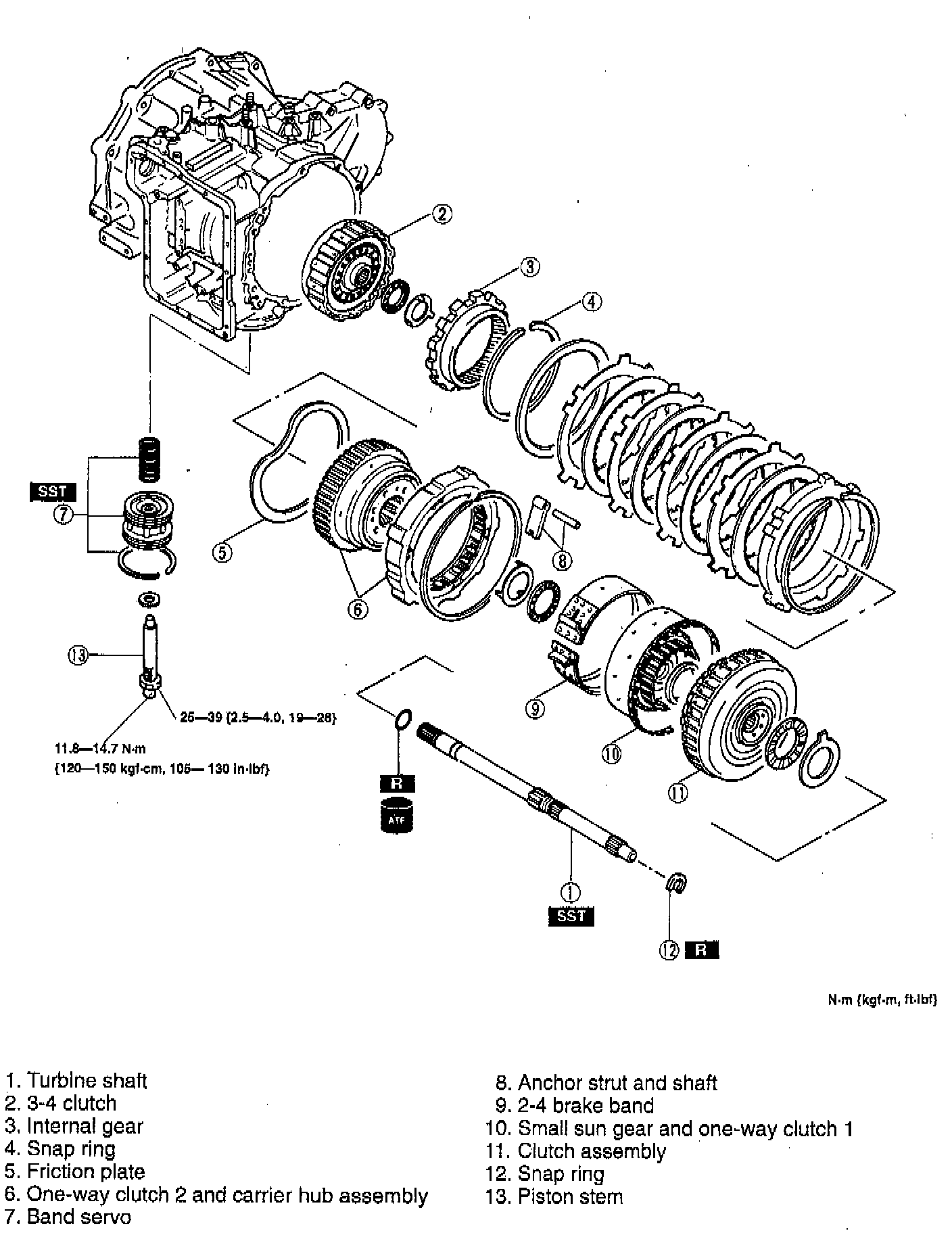

Clutches, Band Servo, And Turbine Shaft:

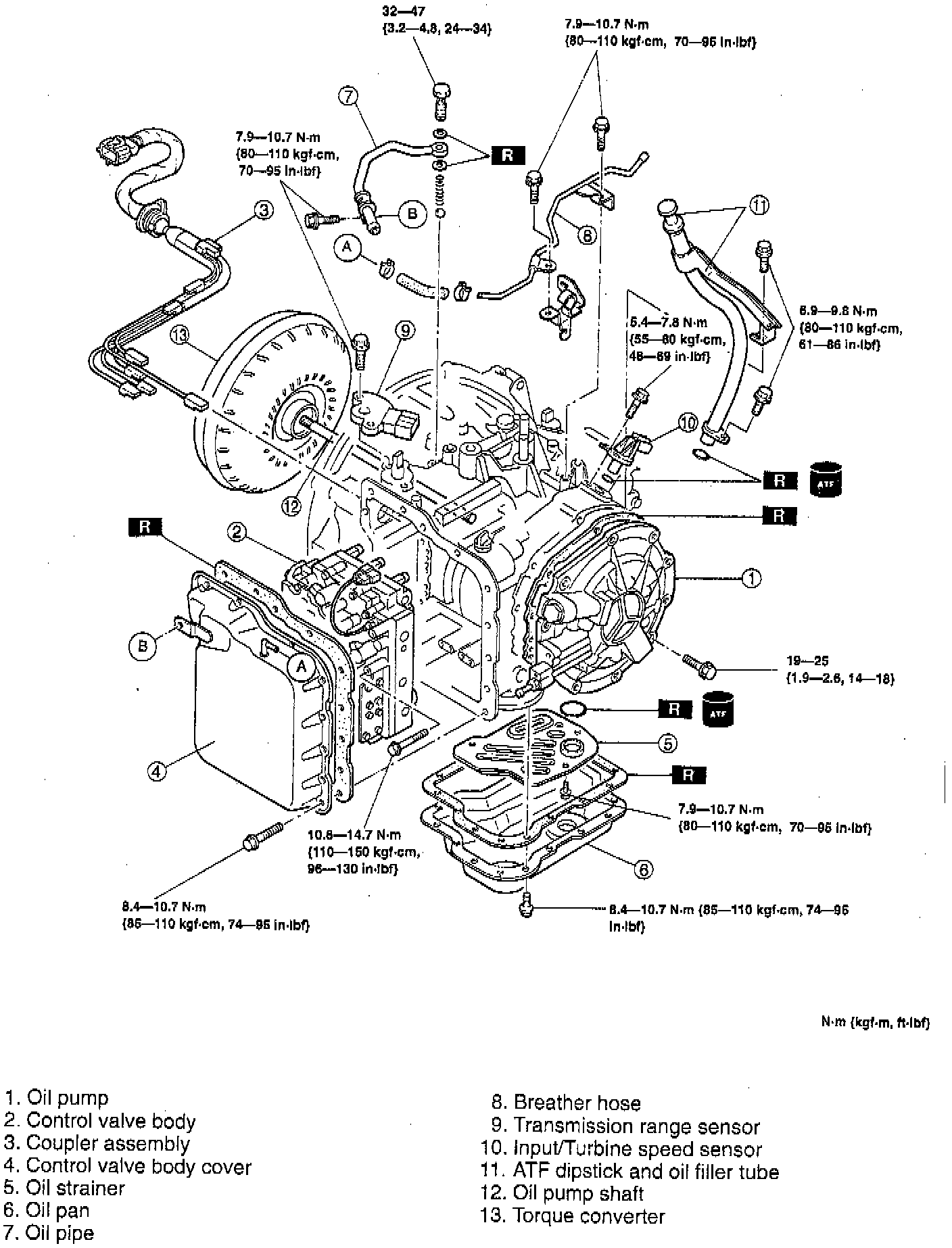

Torque Converter, Oil Pump, Control Valve Body:
