Distributor: Service and Repair

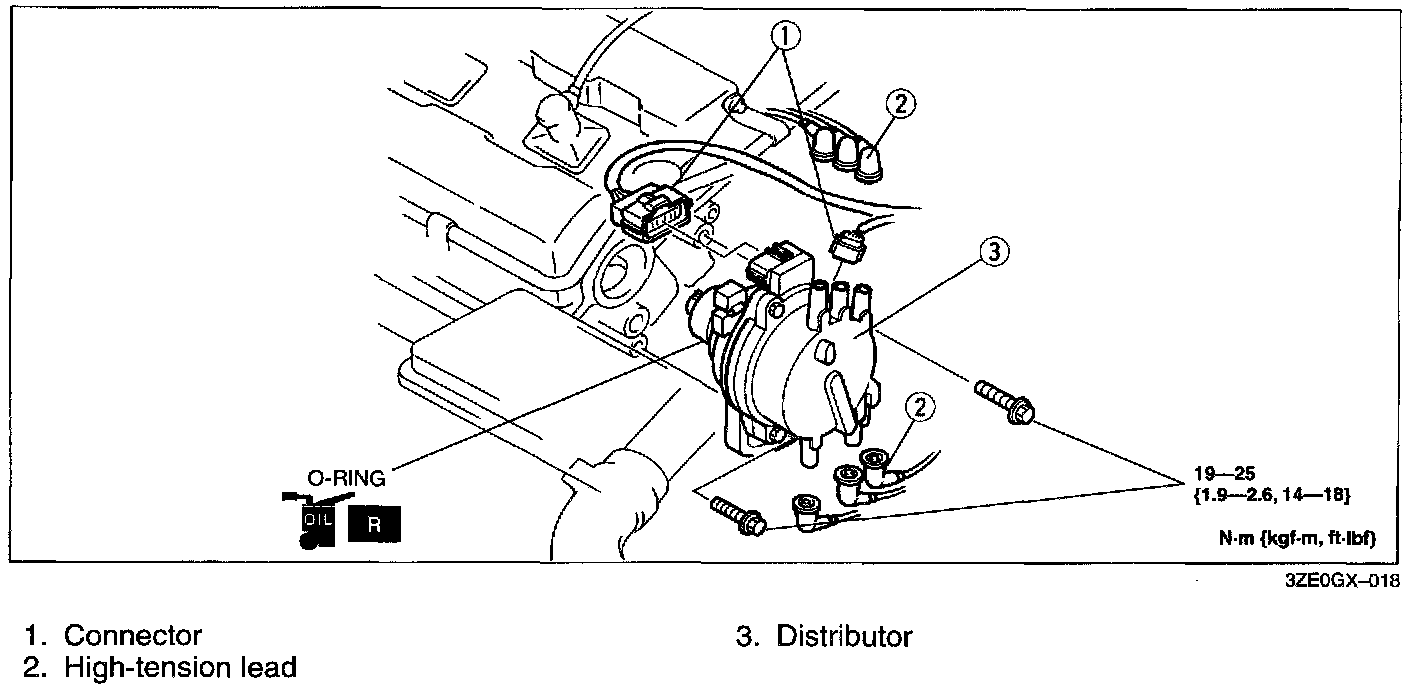

Removal / Installation
1. Disconnect the negative battery cable.
2. Remove in the order shown in the figure.
3. Install in the reverse order of removal.

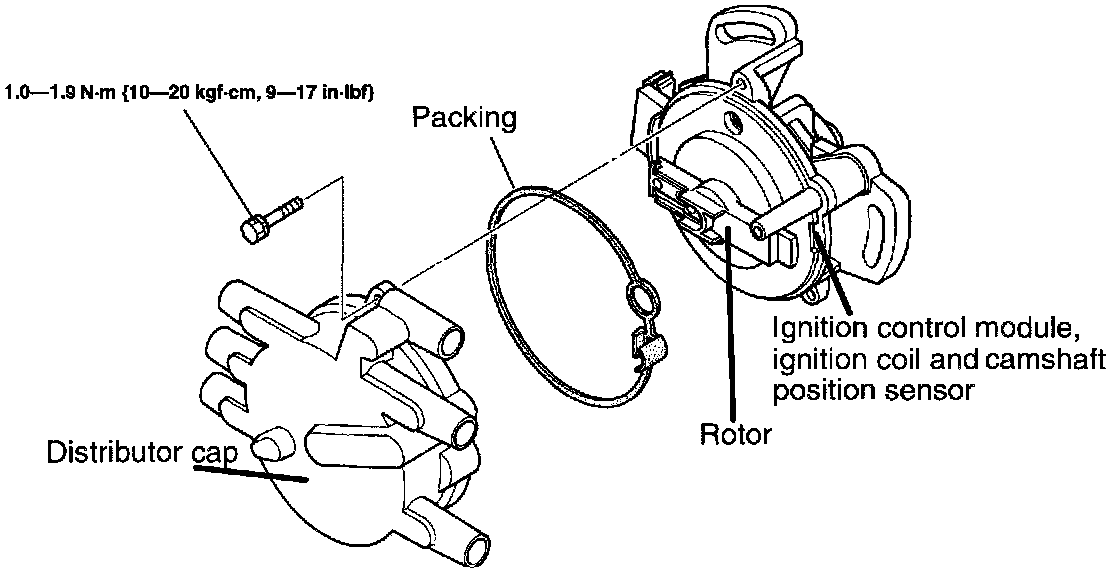

Disassembly / Assembly
1. Disassemble in the order shown in the figure.
2. Inspect all parts and repair or replace if necessary.
3. Assemble in the reverse order of disassembly.
